Air Cell Insulation Reflective Aluminium Bubble Foil Insulation Thermal Soundproof Materials

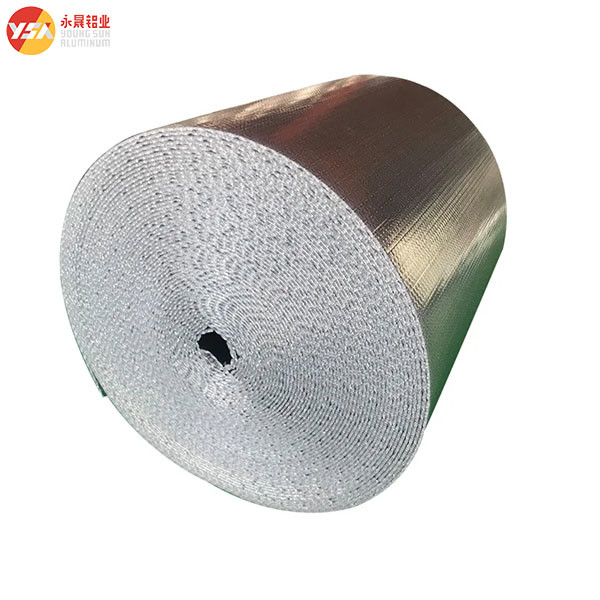

  • Air Cell Insulation Reflective Aluminium Bubble Foil Insulation Thermal Soundproof Materials

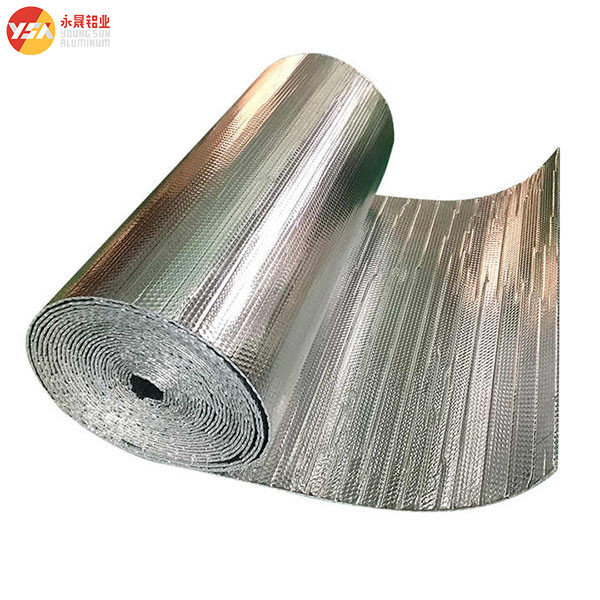

  • Air Cell Insulation Reflective Aluminium Bubble Foil Insulation Thermal Soundproof Materials

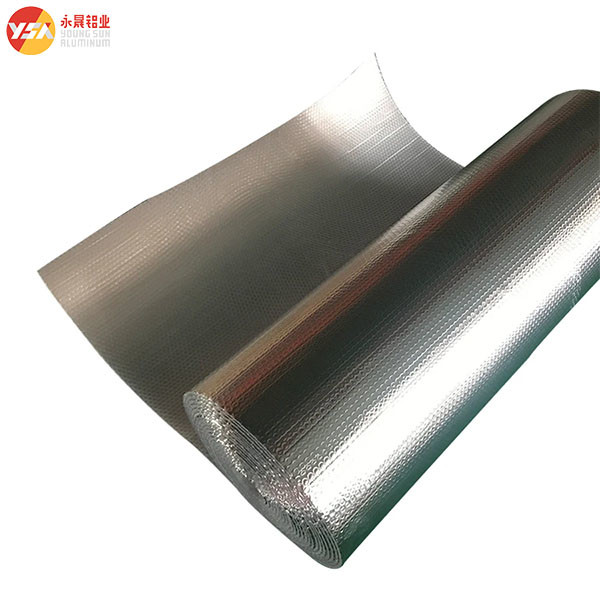

  • Air Cell Insulation Reflective Aluminium Bubble Foil Insulation Thermal Soundproof Materials

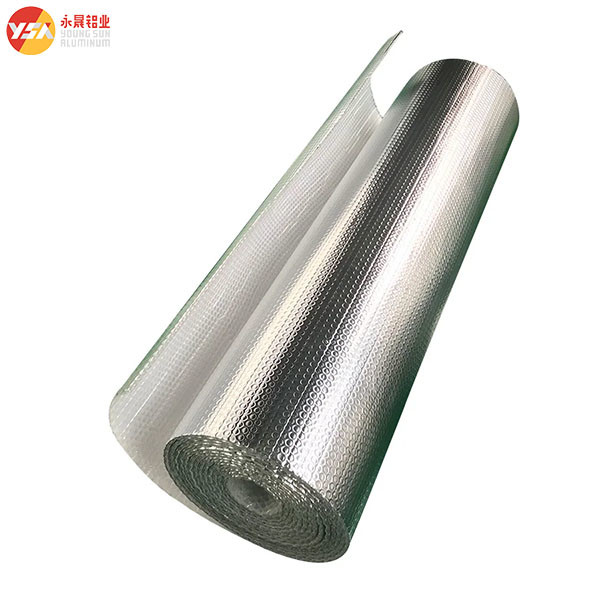

  • Air Cell Insulation Reflective Aluminium Bubble Foil Insulation Thermal Soundproof Materials

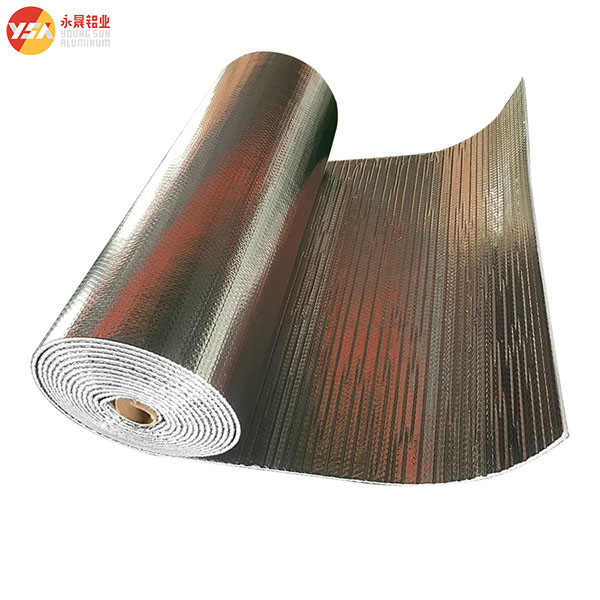

  • Air Cell Insulation Reflective Aluminium Bubble Foil Insulation Thermal Soundproof Materials
Place of Origin Zhengzhou Henan
Brand Name Henan Yongsheng
Certification ISO, RoHS
Model Number Aluminium Bubble Foil Insulation
Minimum Order Quantity Small MOQ is accepted
Price FOB, CIF, CFR, CNF, etc.
Packaging Details Customized Packing
Delivery Time 7-25 days after order confirmation
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Structure Aluminum Foil+Bubble+White Pe Film Color Silver
Slitting Width Customizaed Roll Size 1.2*40m Per Roll
Reflectivity 97% Thickness 4mm Or Customzied
Highlight

Soundproof Aluminium Bubble Foil

,

Reflective Aluminium Bubble Foil

,

Soundproof Aluminum Foil Laminated Polyester Film
Leave a Message
Product Description
Air Cell Insulation Reflective Aluminium Bubble Foil
Advanced thermal and soundproof insulation material featuring reflective aluminum foil with air bubble core technology for superior performance in industrial and commercial applications.
Product Overview
Air cell insulation is a specialized reflective aluminum bubble foil designed for applications requiring exceptional heat resistance and sound insulation. The multi-layer construction combines reflective aluminum foil with air bubbles to create an effective barrier against thermal transfer and noise.
Technical Specifications
Temperature Range -76°F to +212°F (ASTM C411)
R-value 2.0 - 11.2
Fire-proofing Class A/Class 1
Emissivity 0.03-0.04 COEF
Thermal Conductivity 0.032 - 0.036 W/m·K
Apparent Density 54.8 kg/m³
Reflectivity 96-97%
Vapor Transmission 0.012 g/m²·kPa
Corrosion Does not generate
Tensile Strength (MD) 13.43 MPa
Tensile Strength (TD) 14.58 MPa
Key Performance Features
  • Radiant Heat Reflection: Outer aluminum foil layer reflects up to 97% of radiant heat, significantly enhancing thermal performance
  • Thermal Barrier: Inner air bubbles prevent heat transfer, minimizing heat loss in winter and heat gain in summer
  • Easy Installation: Lightweight construction allows for easy handling and cutting without compromising insulation properties
  • Durability: Resistant to moisture, rot, and mildew with long service life and minimal degradation over time
Material Composition
Main Materials Aluminum Foil, Metal Foil, PE Bubble
Material Structures MPET+Bubble+White PE Film
Aluminum Foil+Bubble+White PE Film
Colorful Coating+Aluminum Foil+Bubble+White PE Film
Bubble Specifications PE bubble with 10mm diameter (3/4/6/8mm height) or 20mm diameter (7mm height)
Insulation Thickness 4mm, 6mm, 7mm, 8mm
Bubble Color Clear or White (standard)
Reflectivity 97%
Standard Roll Sizes 1.2m × 30m, 1.2m × 40m, 1.5m × 20m (customizable up to 1.5m width)
Packaging 1 roll per PE bag with optional custom printing
Product Gallery

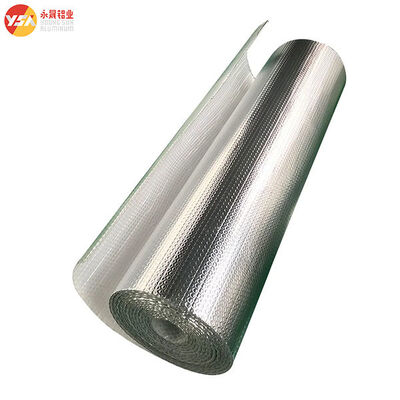

Air Cell Insulation Reflective Aluminium Bubble Foil Insulation Thermal Soundproof Materials 0
Application Features
Air Cell Insulation Reflective Aluminium Bubble Foil Insulation Thermal Soundproof Materials 1 Air Cell Insulation Reflective Aluminium Bubble Foil Insulation Thermal Soundproof Materials 2
