0.012mm Clear Transparent PET Polyester For Flexible Duct Film
| Place of Origin | Zhengzhou Henan |
|---|---|
| Brand Name | Henan Yongsheng |
| Certification | ISO, RoHS |
| Model Number | PET Polyester Flexible Duct Film |
| Price | FOB, CIF, CFR, CNF, etc. |
| Packaging Details | Seaworthy Export Standard Wooden Box |
| Delivery Time | 7-25 days after order confirmation |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Transparent | Structure | PET |
|---|---|---|---|
| Thickness | 12/15/16 Mic, Etc | Width | 5-1600mm |
| ID | 52/76mm | Coil Diameter | 250-650mm |
| Refractoriness | 200-450°C | Apparent Density | 10-40kg/m³ |
| Highlight | Clear Transparent PET Polyester Film,0.012mm PET Polyester Film,Flexible Duct Film PET Polyester Film |
||
Product Description
0.012mm Clear Transparent PET Polyester Flexible Duct Film
This 0.012mm clear PET (polyethylene terephthalate) polyester film is engineered for flexible duct applications. The PET film enhances tensile strength to prevent breakage while serving as an effective moisture barrier.
Key Features
- Lightweight construction reduces shipping and handling costs
- High flexibility adapts to various shapes and sizes for complex duct systems
- Effective moisture barrier protects against humidity and condensation
- High temperature resistance suitable for both hot and cold air applications
- Exceptional durability with resistance to tearing, puncturing, and environmental stress
Product Specifications
| Structure | Thickness (mic) | Specific Gravity (gr/m²) | Specific Area (m²/kg) |
|---|---|---|---|
| PET | 12 | 16.5 | 60 |
| PET | 15 | 20.6 | 48 |
| PET | 20 | 27.7 | 36 |
| PET | 25 | 34.7 | 28 |
| PET | 30 | 41.2 | 24 |
| PET | 35 | 48.2 | 20 |
| PET | 40 | 55.3 | 18 |
| PET | 50 | 68.8 | 14 |
| PET | 60 | 82.3 | 12 |
| PET | 70 | 94.5 | 10 |
| PET | 80 | 110 | 9 |
| PET | 90 | 124 | 8 |
| PET | 100 | 138 | 7 |
Additional Specifications:
Standard inner diameter ID: 52mm, 76mm (paper tube, iron tube or plastic tube)
Minimum width: 5mm; Maximum width: 1600mm; Coil diameter: 250mm~650mm
Standard inner diameter ID: 52mm, 76mm (paper tube, iron tube or plastic tube)
Minimum width: 5mm; Maximum width: 1600mm; Coil diameter: 250mm~650mm

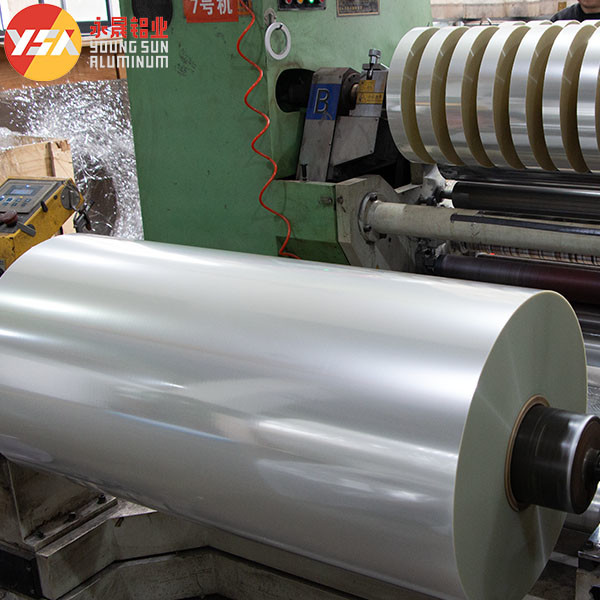

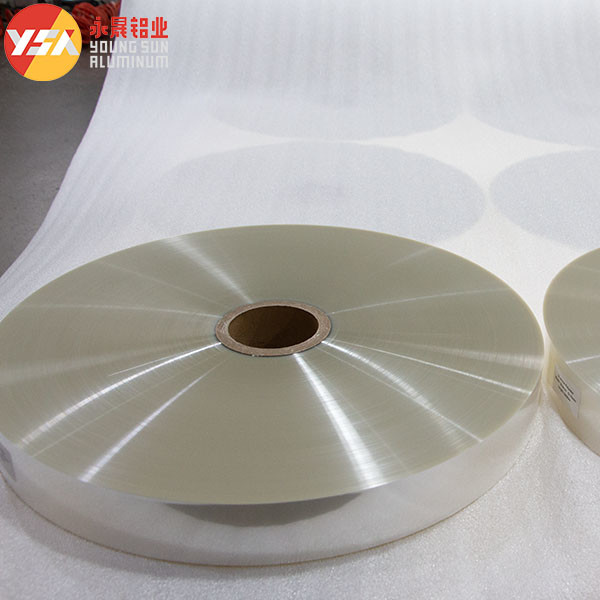

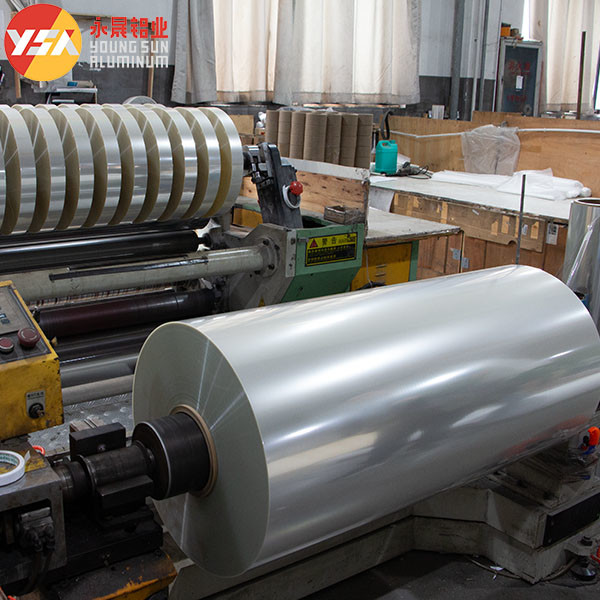

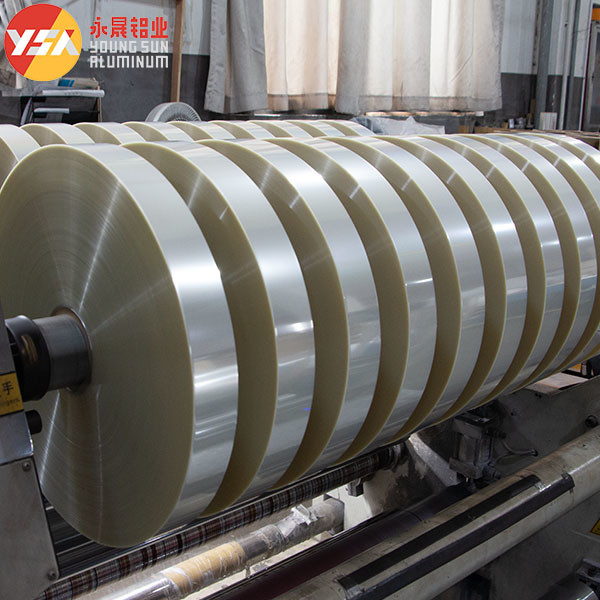

Product Display
Product Applications
