| Place of Origin | Zhengzhou Henan |
|---|---|
| Brand Name | Henan Yongsheng |
| Certification | ISO, RoHS |
| Model Number | 8011 |
| Minimum Order Quantity | 1 Ton |
| Price | FOB, CIF, CFR, CNF, etc. |
| Packaging Details | Seaworthy Export Standard Wooden Box |
| Delivery Time | 7-25 days after order confirmation |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Alloy | 8011 O | Color | Silver |
|---|---|---|---|
| Thickness | 0.08-0.2mm, Etc | Width | 12-1240mm, Etc |
| Inner Diameter | 75mm 150mm 200mm 300mm 500mm | Tensile Strength(Mpa) | 45-110MPa (according To Thickness) |
| Highlight | 8011 O Temper Foil Duct,Flexible Foil Duct 8011 O Temper |
||
Product Description

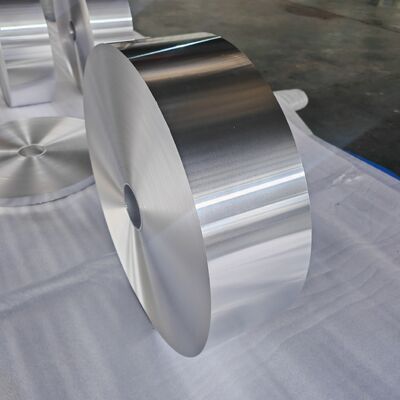

Flexible Foil Duct 8011 O Temper Aluminium Foil Flexible Duct
Aluminum foil ducts are essential components in ventilation systems, primarily used for terminal air supply applications including ventilation, exhaust, and fume extraction. These ducts are widely employed in air conditioning systems and range hood exhaust applications.
Product Overview
Manufactured from 8011 aluminum foil or pure aluminum foil, these flexible ducts are produced through continuous spiral clamping technology. They offer exceptional performance characteristics including excellent extensibility, lightweight construction, and resistance to water, oil, fire, and dust. Their cost-effectiveness makes them particularly suitable for commercial applications such as barbecue restaurants and food service establishments.
Key Advantages
- Superior Appearance: Smooth, clean surface with uniform color distribution and no visible spots
- Enhanced Performance: Excellent moisture resistance, light blocking capabilities, high barrier capacity, and strong mechanical properties with tear resistance
- Competitive Pricing: Large-scale manufacturing with direct factory supply, preferential pricing, and original manufacturer warranty
Technical Specifications
| Series | Alloy | Temper | Thickness (mm) | Width (mm) | Length (mm) |
|---|---|---|---|---|---|
| 1000 series | 1100 | O/H22/H18 | 0.018-0.2 | 1215 | C |
| 8000 series | 8011 | O, H12, H22, H14, H24, H16, H26, H18 | 0.08-0.2 | 12-1240 | Max 3000 |
Additional Parameters
| CAD (%) | 5%-20% |
| Inner Diameter (mm) | 75, 150, 200, 300, 500 |
| Outer Diameter (mm) | Max 1800 |
| Coil Weight (kg) | Max 8000 |
| Executive Standard | Q/BAQB001 GB/T 33369 |
| Applications | New Energy Cooling Board, Evaporator, Condenser, Water Tank Intercooler, Oil Cooler, Water Discharge, etc. |
