High Dyne Value 12-16um Aluminum Foil For Lithium Battery Positive Electrode

  • High Dyne Value 12-16um Aluminum Foil For Lithium Battery Positive Electrode
  • High Dyne Value 12-16um Aluminum Foil For Lithium Battery Positive Electrode
  • High Dyne Value 12-16um Aluminum Foil For Lithium Battery Positive Electrode
  • High Dyne Value 12-16um Aluminum Foil For Lithium Battery Positive Electrode
  • High Dyne Value 12-16um Aluminum Foil For Lithium Battery Positive Electrode
Place of Origin Zhengzhou Henan
Brand Name Henan Yongsheng
Certification ISO, RoHS, FDA
Model Number High Dyne Value 12-16um Aluminum Foil
Minimum Order Quantity 1 ton
Packaging Details Seaworthy Export Standard Wooden Box
Delivery Time 7-25 days after order confirmation
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name High Dyne Value Battery Foil Alloy 1050 1060 1100 1235
Temper O, H14, H18, H22, H24 Thickness 0.01-0.02
Width 200-1950 Sample Free
Dyne Value 48 56 70 Dyn OEM/ODM Accept
Highlight

High Dyne Value Aluminum Foil

,

Lithium Battery Aluminum Foil

,

12-16um Aluminum Foil
Leave a Message
Product Description
High Dyne Value 12-16μm Aluminum Foil for Lithium Battery Positive Electrode
Aluminum and aluminum alloy battery foil serves as the collector for lithium-ion batteries. The lithium-ion battery industry typically uses rolled aluminum foil as the positive electrode collector, with thickness ranging from 10 to 50 microns. Our specialized battery foils include various alloy grades such as 1060, 1050, 1145, and 1235, available in multiple tempers including O, H14, H24, H22, and H18.
Key Performance Requirements
  • Thickness: Ranging down to 8μm with tight tolerance control (±2-4%)
  • Surface Quality: Strict control of pitting defects and surface imperfections
  • Surface Wetting Tension: 30-32 dyn standard, with higher values available for sensitive materials
  • Edge Cutting Quality: High precision cutting without cracks or burrs
  • Mechanical Properties: Optimized tensile strength (190-280 N/mm²) for burst resistance
    • Standard Alloy Specifications
    Alloy Temper Thickness Width Application
    1235 H18 0.014/0.015/0.016 mm 280-1200 mm Battery Foil
    1060/1070 H18 0.014/0.015/0.016 mm 280-1200 mm Battery Foil
    Product Specifications
    Product NameAluminum Foil Roll
    Item TypeSupplier Catering Aluminium Foil, Silver Aluminium Foil Paper, Food Packing Household Aluminium Foil
    Foil TypeHeavy gauge foil, Medium gauge foil, Light gauge foil
    Alloy Types1050, 1060, 1070, 1100, 1235, 1145, 3003, 3004, 5052, 5A02, 8006, 8011, 8021, 8079
    Thickness Range0.006 ~ 0.2mm
    Width Range10mm ~ 1500mm
    TemperO ~ H112
    Yield Strength0 ~ 560 MPa
    Ultimate Strength70 ~ 550 MPa
    Inner Core MaterialsAluminum core, etc.
    ApplicationsMedicine Packaging, Food Packaging, Cigarette Packaging, Tape Foil
    StandardsASTM B209, EN 573-1S, etc.
    CertificationsISO, RoHS, etc.
    Ordering & Delivery Information
  • Minimum Order Quantity: 3 tons
  • Coil ID: 76mm, 152mm or custom requirements
  • Samples: Available free of charge
  • Delivery Time: 7-30 days after order confirmation
  • Loading Ports: Qingdao, Tianjin, Shanghai, etc.
  • Price Terms: FOB, CIF, CFR, CNF
  • Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Packaging: Seaworthy export standard wooden boxes

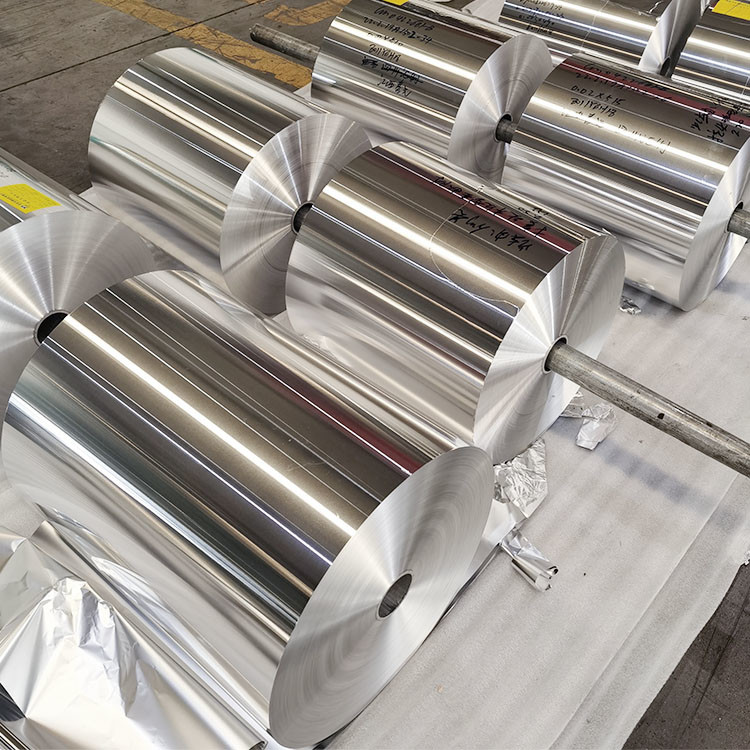

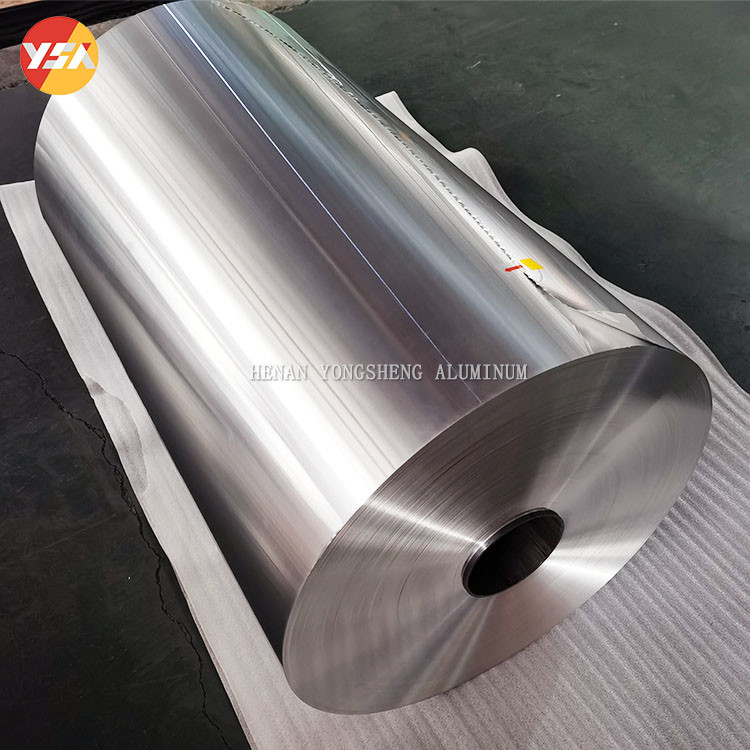

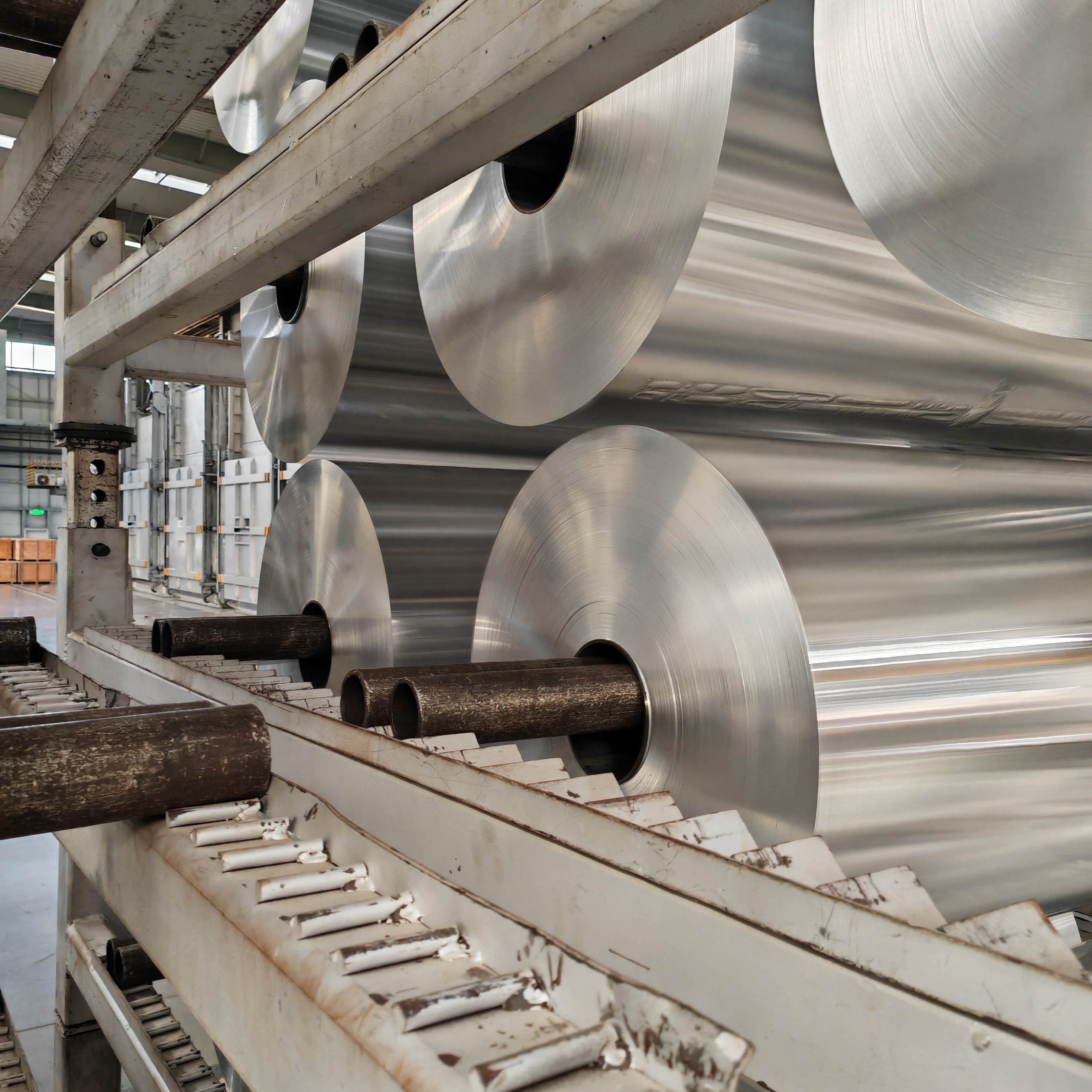

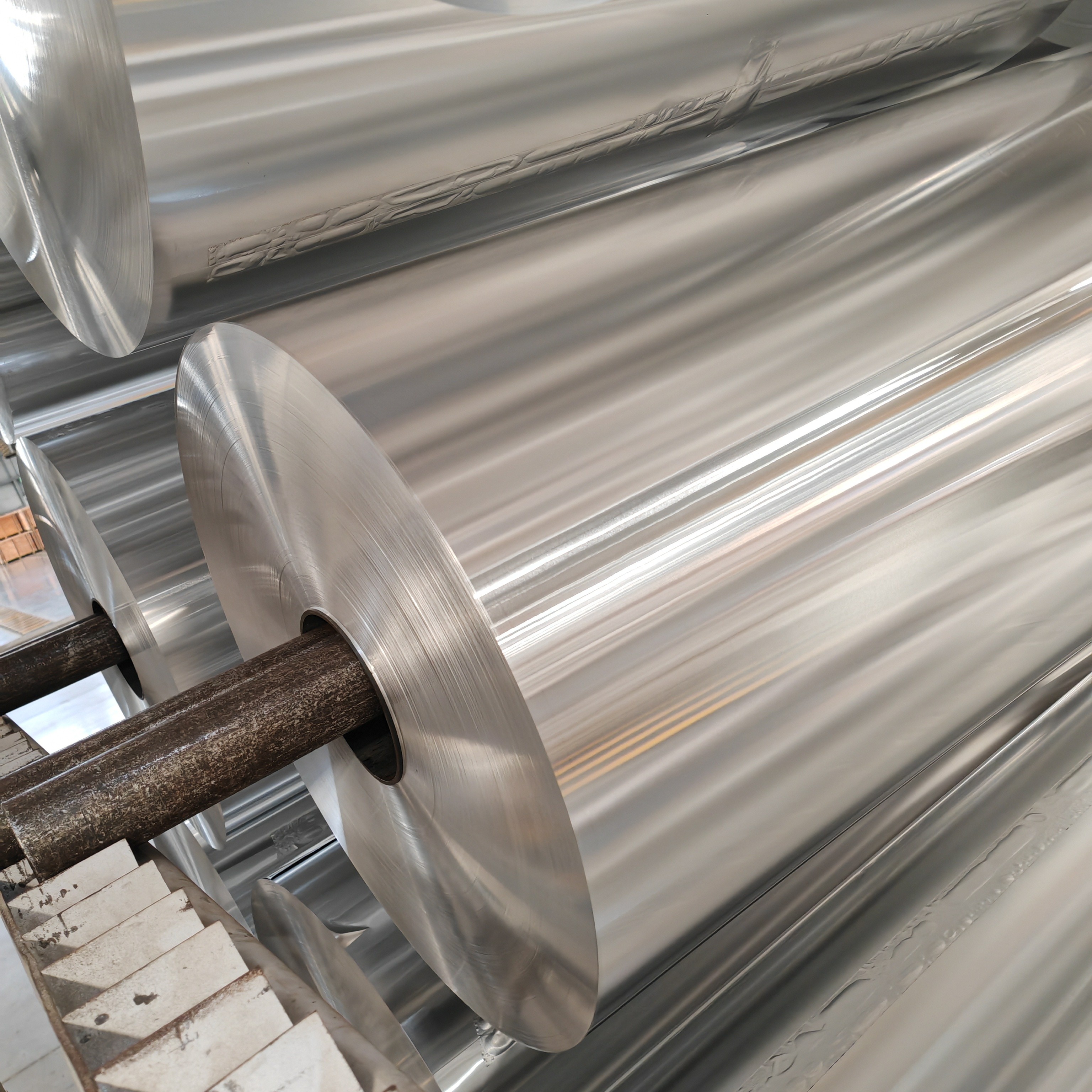

    • Product Gallery
    High Dyne Value 12-16um Aluminum Foil For Lithium Battery Positive Electrode 0 High Dyne Value 12-16um Aluminum Foil For Lithium Battery Positive Electrode 1 High Dyne Value 12-16um Aluminum Foil For Lithium Battery Positive Electrode 2 High Dyne Value 12-16um Aluminum Foil For Lithium Battery Positive Electrode 3 High Dyne Value 12-16um Aluminum Foil For Lithium Battery Positive Electrode 4 High Dyne Value 12-16um Aluminum Foil For Lithium Battery Positive Electrode 5 High Dyne Value 12-16um Aluminum Foil For Lithium Battery Positive Electrode 6
