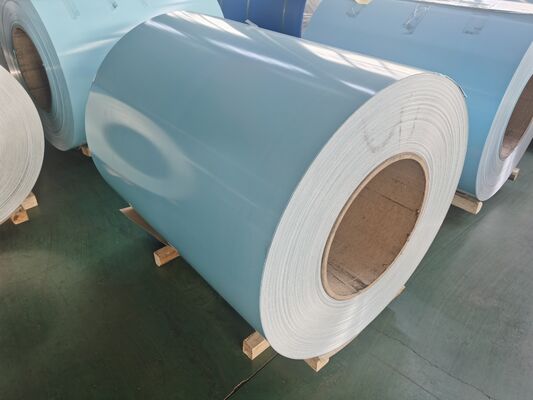

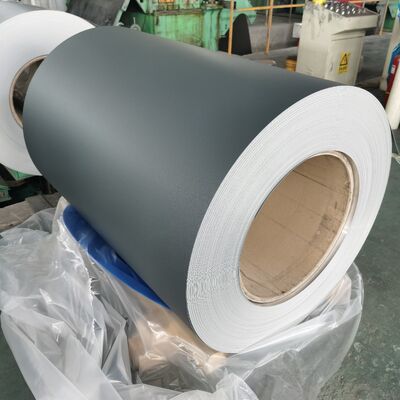

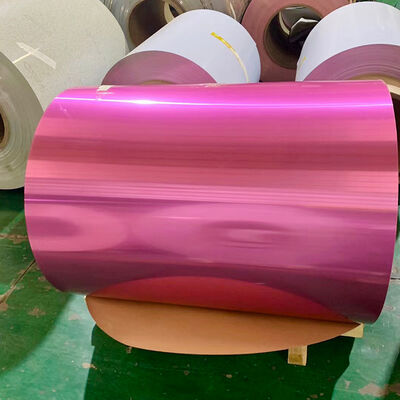

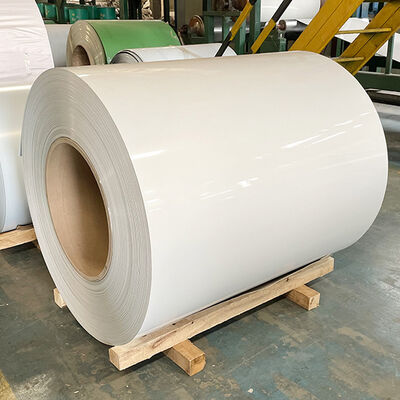

Ready Stock FEVE Color Coated Aluminum Coil 3003 3105 AkzoNobel PPG Paint Corrosion Resistant 5-8 Days Delivery

Place of Origin Henan Province , China
Brand Name Yongsheng
Certification ISO 9001, RoHS, ASTM-B209, EN573-1
Model Number 3003,3105
Minimum Order Quantity 1 ton
Price USD 2900-3400 / Ton
Packaging Details Eye to sky seaworthy wooden pallet, protective film, HDPE wrapping and steel strapping
Delivery Time 5-8 working days for ready stock, 15-20 days for custom colours
Payment Terms L/C,D/A,D/P,T/T
Supply Ability 5000 Tons per Month
Product Details
Leave a Message
Product Description
Ready Stock FEVE Color Coated Aluminum Coil, Shipped in 5-8 Working Days

This is our stock programme item: 3003 and 3105 alloy color coated aluminum coil, FEVE fluorocarbon coating over AkzoNobel or PPG paint, held in warehouse as slit and full width coils so that a trial order or an urgent replenishment order ships in 5 to 8 working days instead of waiting for a full production cycle. Width 100-1600mm, thickness 0.2-6.0mm, standard coil ID 508mm or 610mm, maximum coil weight 3 tons.

Ready Stock FEVE Color Coated Aluminum Coil 3003 3105 AkzoNobel PPG Paint Corrosion Resistant 5-8 Days Delivery

1. Ready stock, 5-8 working days to load
Stock specification Colours on hand Coating
0.5mm x 1200mm, 3003 H24 White, light grey, silver FEVE 25 micron, double side available
0.6mm x 1240mm, 3105 H24 White, ivory, RAL 9006 FEVE 25 micron
0.8mm x 1200mm, 3003 H14 White, blue, red PVDF 25 micron
Slit coil 100-600mm Gutter and trim coil colours PE 18 micron

Stock is held as 1xxx, 3xxx and 5xxx series base coil plus finished painted coil, so mixed specifications can be loaded in one container. Custom RAL colours and non stock thickness are produced in 15 to 20 working days. Every coil is weighed, edge trimmed and wrapped before loading, and the coil ID and gross weight are confirmed on the packing list before shipment.

2. FEVE coating for salt spray resistance up to 3000 hours

FEVE fluorocarbon resin uses alternating fluoroethylene and vinyl ether units, which gives a denser film than polyester and keeps the colour and gloss far longer under salt spray, acid rain and UV. On our FEVE system, salt spray resistance reaches up to 3000 hours depending on film thickness, against roughly 500 to 1000 hours for a standard PE system.

Ready Stock FEVE Color Coated Aluminum Coil 3003 3105 AkzoNobel PPG Paint Corrosion Resistant 5-8 Days Delivery

Coating system Salt spray resistance Outdoor life Best for
PE polyester 500-1000 hours 5-8 years Indoor ceilings, signage, gutter
HDP / SMP 1000-1500 hours 10-15 years Roofing, wall cladding
PVDF (70 percent Kynar 500) 1500-2000 hours 20 years Curtain wall, facade, ACP
FEVE fluorocarbon Up to 3000 hours 20-25 years Coastal facade, chemical plant, marine

Because the film stays intact longer, a FEVE coil needs no repainting cycle on the building, which is the argument that wins coastal and industrial projects where a PE coil would chalk and fade within a few years.

3. AkzoNobel and PPG paint, authorised supply

We hold an authorisation letter for PPG product usage and run AkzoNobel, PPG, Valspar, Nippon and Beckers paints on our three colour coating lines. Buyers who have to submit a paint brand certificate with the tender documents can be supplied with the coating brand, batch reference and a retained sample panel, so the delivered coil matches what was approved. Coating adhesion is checked by MEK rub and T bend test on every production batch, and paint hardness above 2H against pencil test.

Specifications
Alloy 3003 / 3105 (also 1050, 1060, 1100, 3004, 5052)
Temper H14, H24, H18, H22
Thickness 0.2-6.0mm
Width 100-1600mm, slit width from 100mm
Coating system FEVE, PVDF, HDP, SMP, PE
Coating thickness 25 micron standard, 15-30 micron on request
Gloss 80-90 GU, matt and high gloss available
Coil ID 508mm or 610mm
Coil weight Up to 3 tons per coil, jumbo coil on request
Colour RAL chart, wood grain, marble, solid and metallic
Standards ASTM B209, EN 573-1, GB/T 3880
Applications
  • Coastal and industrial building facade, curtain wall panel and column cladding where salt spray and chemical exposure are severe
  • Roofing and wall sheets for seaside hotels, logistics parks and factory buildings
  • Aluminium composite panel skin, signage board and channel letter face
  • Gutter, fascia and trim coil in matching building colour
  • Suspended ceiling and interior wall panel, including double sided coating
  • Appliance housing, electrical enclosure and light fitting reflector
  • Pipe insulation wrapping and HVAC duct jacketing

Ready Stock FEVE Color Coated Aluminum Coil 3003 3105 AkzoNobel PPG Paint Corrosion Resistant 5-8 Days Delivery

Packing and loading

Eye to sky or eye to wall seaworthy wooden pallet, protective film, HDPE wrapping and steel strapping, with corner protection and desiccant for long sea transit. Coils are loaded with wooden dunnage to stop movement in the container, and the packing list shows coil ID, gross weight and colour batch so the goods can be checked on arrival.

Quality documents supplied with each order

Mill test certificate for chemical composition and mechanical properties, coating thickness and adhesion report, colour sample retention sheet, and copies of our ISO 9001, ISO 14001, SGS and FDA certificates. Additional third party inspection such as SGS or BV can be arranged before loading.

Order now: send us the thickness, width, colour code and quantity. Stock specifications can be confirmed within one working day and loaded in 5-8 working days. Request a quotation or a free colour sample today.
