Embossed Aluminum Sheet 8-35 Micron Coating 0.2mm-3.0mm DC CC Rolled Factory Direct

Built for buyers who compare specs line by line: this embossed aluminum sheet puts the four numbers your purchasing team actually checks first on the table — coating thickness 8-35 micron, dimensional tolerance +/-1%, thickness 0.2mm-3.0mm, and pattern uniformity controlled by roll. Both DC hot rolled and CC cold rolled routes are available, straight from our own mill.

• PE coating 8-18 micron for short-term protection and indoor panels
• PVDF coating 20-28 micron for exterior cladding with 15-20 year colour retention
• Heavy duty PVDF up to 35 micron for coastal and industrial atmosphere
• Coating thickness measured per coil with a coating thickness gauge, reading recorded on the inspection sheet shipped with each lot
• Colour matching to RAL, Pantone or your approved sample chip

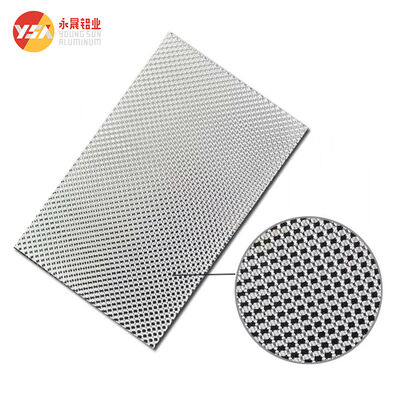

• Pattern depth and density controlled by matched embossing rolls, so sheet 1 and sheet 3,000 look the same
• Flatness within 3mm per meter on a granite inspection table, no oil canning, no waviness at the sheet edge
• No scratches, no roll marks, no dents — 100% visual inspection under 1000 lux before packing
• Dimensional tolerance +/-1%, so your CNC program and press brake setup stay unchanged from lot to lot

• DC hot rolled — continuous cast rolled slab, better surface cleanliness and formability, first choice for deep drawn and bent parts
• CC cold rolled — lower cost route, stable thickness and good flatness, first choice for insulation jacketing, ceiling and cladding runs
• Both routes available in the same alloy and pattern, so you can cost-optimise by application instead of being locked into one process
• Process route stated on the mill test certificate and packing list for your traceability file

• Embossed texture breaks up specular reflection, cutting glare on ceiling, facade and light box surfaces

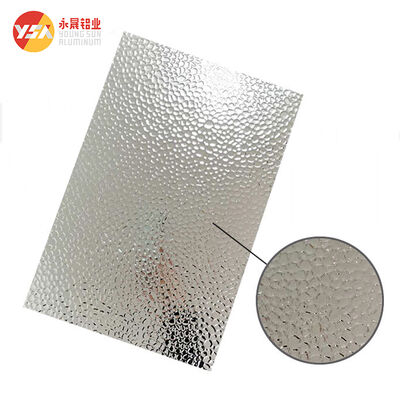

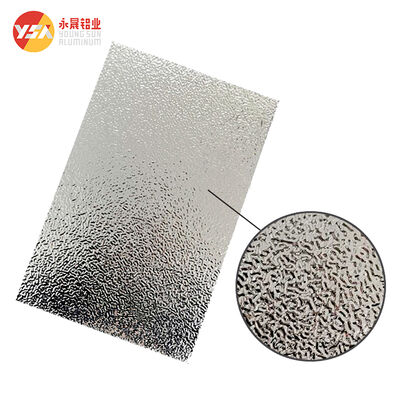

• Stucco and orange peel patterns scatter light evenly, giving a matte decorative look without extra painting

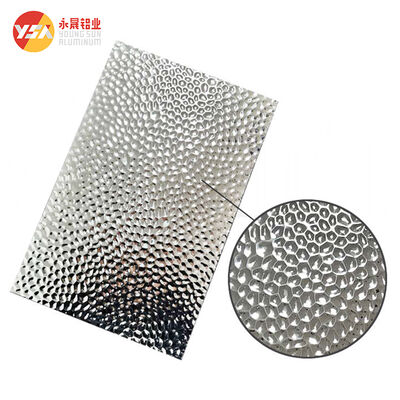

• Mirror-reflective embossed option available for decorative and lighting applications that need brightness

• 25 years in embossed aluminum development, rolling and export; we own the embossing rolls, the coating line and the cutting line
• Price quoted from the mill, no intermediary layer, consistent alloy and gauge lot to lot
• Custom patterns developed from your drawing or sample; new roll tooling at shared cost for volume programmes

• Seaworthy wooden pallet, 1,000kg to 3,000kg per pallet, eye-to-sky or horizontal packing as you prefer
• VCI anti-corrosion film and waterproof paper for sea freight over 30 days, corner protectors against fork lift damage
• Pallet weight and layout confirmed before booking, loading photos and container plan shared with you
• Loading ports: Qingdao, Tianjin, Shanghai, Ningbo

• HVAC and pipe insulation jacketing - 0.2mm to 1mm stucco sheet, thin gauge wraps radius easily
• Refrigerator and freezer liner - 0.3mm to 1mm, hygienic, mold-proof, easy to clean
• Ceiling panel and column cladding - 0.5mm to 1.5mm, anti-glare embossed face
• Exterior wall cladding and facade panel - 1mm to 3mm with 20-28 micron PVDF
• Truck, trailer and bus interior trim - 1mm to 3mm lightweight panel
• Electrical enclosure and appliance panel - 0.5mm to 2mm with powder coating

• Chemical composition and mechanical property test per heat number
• Coating thickness, pattern depth, flatness and dimension checked lot by lot, records shipped with goods
• Third party inspection by SGS, BV or your nominated inspector before shipment

• Free sample swatch of 300 x 300mm in your target pattern and coating, dispatched within 3 working days
• Engineers confirm coating system, alloy and temper for your climate and forming method before you order
• Full documents: packing list, invoice, CO / Form A / Form E, insurance certificate, mill test certificate

• MOQ 1 ton for standard patterns, 2 tons for custom pattern or custom colour
• Delivery 7-15 days for stock pattern and coating, 20-30 days for custom pattern or colour
• Terms: EXW, FOB, CFR, CIF, DDP; payment T/T, L/C at sight, D/P
