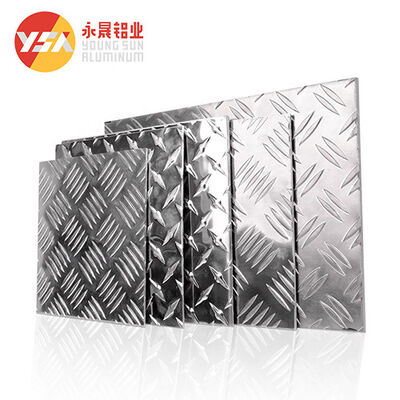

5754 5 Bar 5mm Aluminum Sheet Checked Pattern Plates Aluminum Checked Plate
| Place of Origin | Henan China |
|---|---|
| Brand Name | YongSheng |
| Certification | SGS |
| Model Number | Fast Delivery 5754 5 Bar 5mm Aluminum Sheet Checked Pattern Plates Aluminum Checked Plate |
| Minimum Order Quantity | 1 tons |
| Price | USD2598tons |
| Packaging Details | wooden package |
| Delivery Time | 15-21 workdays |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, |
| Supply Ability | 5000tonspermonth |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keyword | Aluminum Checked Plate，Aluminum Checked Pattern Plates，5754 5 Bar 5mm Aluminum Sheet | Place Of Origin | Gongyi，China |
|---|---|---|---|
| Pattern Size | Customized | Alloy/Grade | 1000series-8000series |
| Temper | O-H112, O/H14/H32/H24 | Thickness | 0.15mm-5.0mm |
| Width | 3mm-1600mm | Length | As Per Your Requirements |
| Pattern | Classic , Altered, Diamond ,1-5 Bars ,checker, Etc. | Processing Service | Decoiling, Cutting |
| Highlight | 5754 5 Bar 5mm Aluminum Sheet,Aluminum Checked Plate,Aluminum Checked Pattern Plates |
||
Product Description

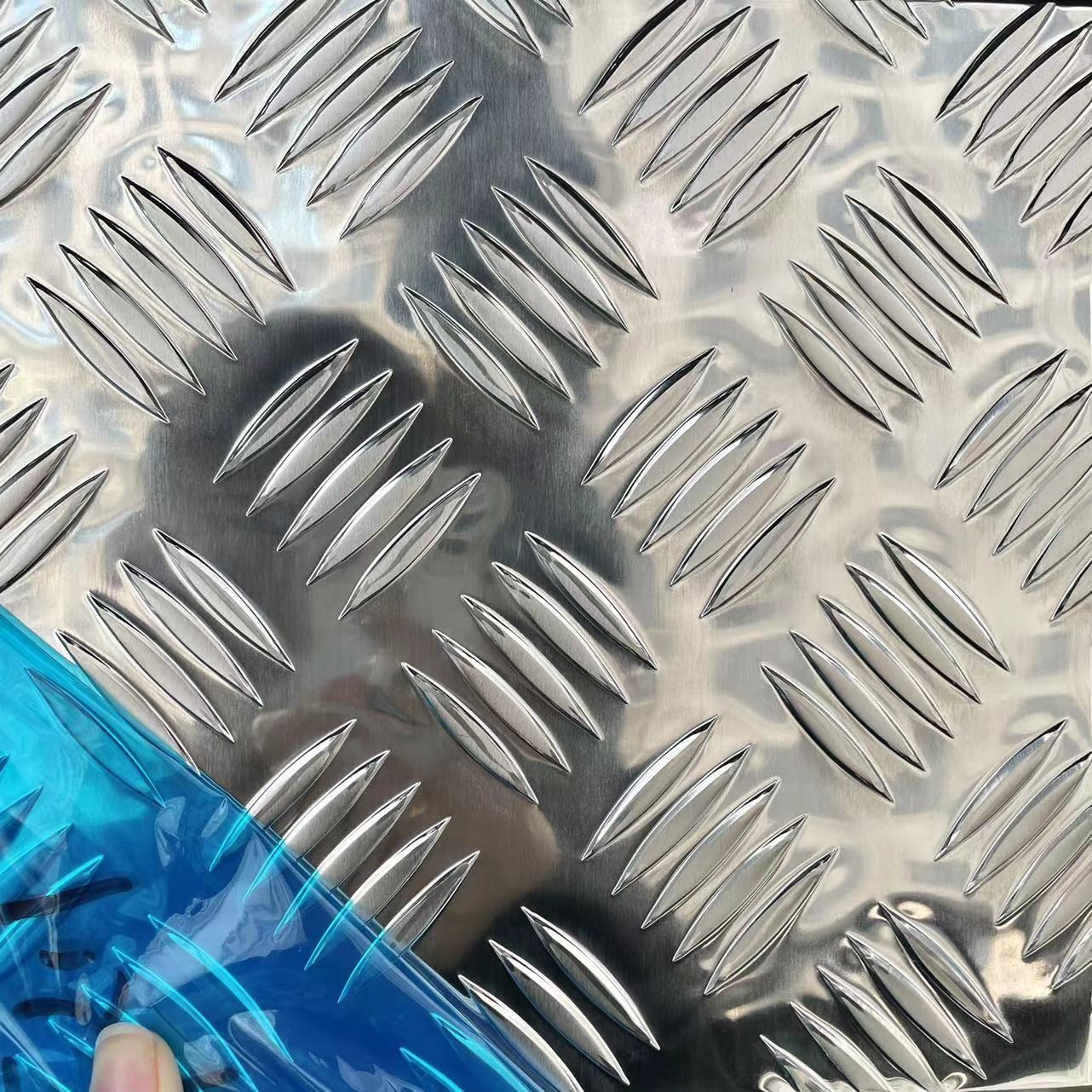

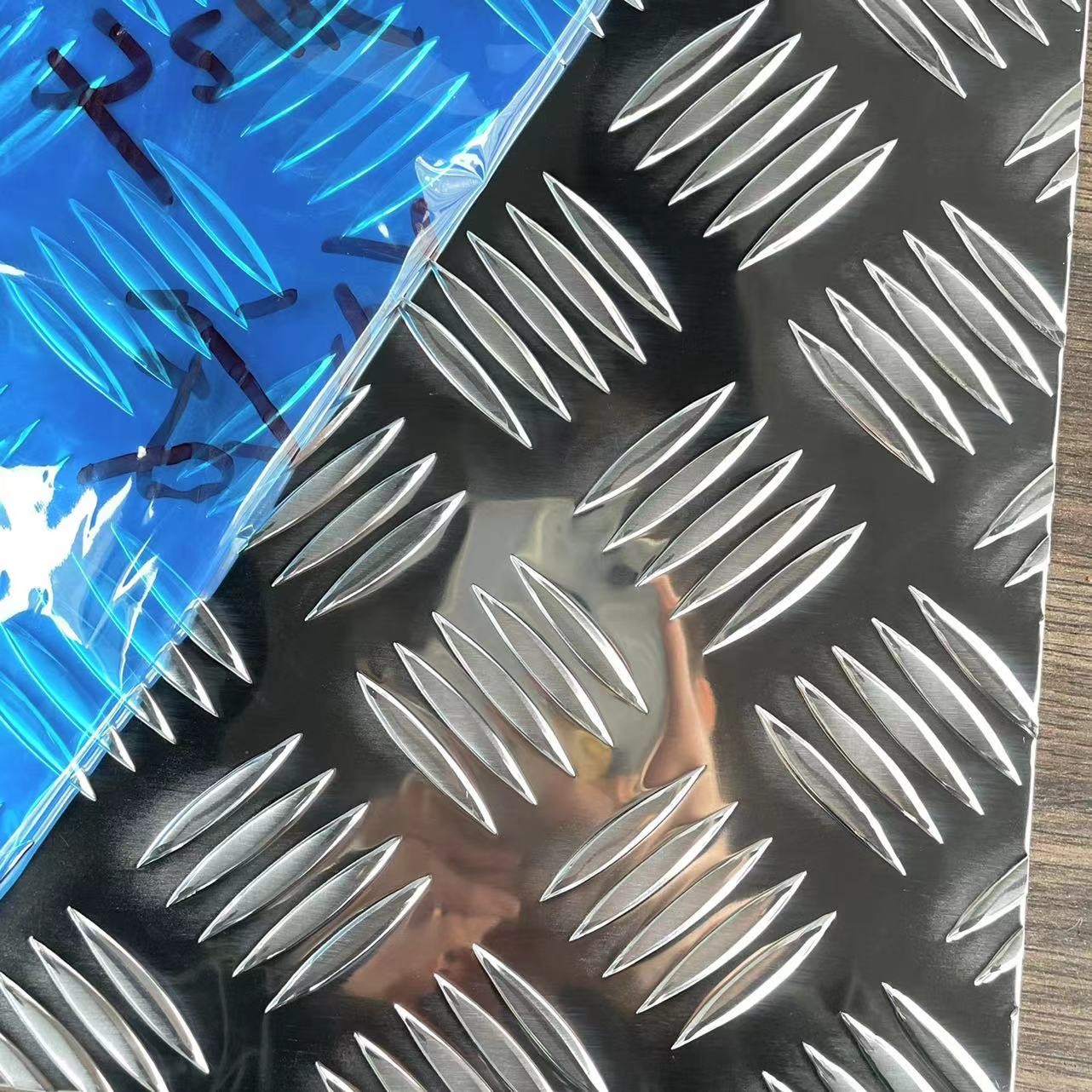

5754 5 Bar 5mm Aluminum Checkered Plate
Fast delivery 5754 5-bar 5mm aluminum sheet with checked pattern surface. These aluminum checked plates feature excellent anti-slip properties and aesthetic appeal.
Product Overview
Pattern aluminum plates feature surface designs including five ribs, three ribs, orange peel, lentil, diamond, round bean, and flat round mixed patterns. Five-rib patterns are the most common in the market, offering both visual appeal and functional anti-slip characteristics.
Small five-rib pattern aluminum plates provide numerous advantages including attractive appearance and superior anti-slip performance. They are widely used in transportation, architecture, decoration, equipment flooring, machinery, and shipbuilding applications. Quality is primarily measured by pattern coverage rate, pattern height, and height consistency.

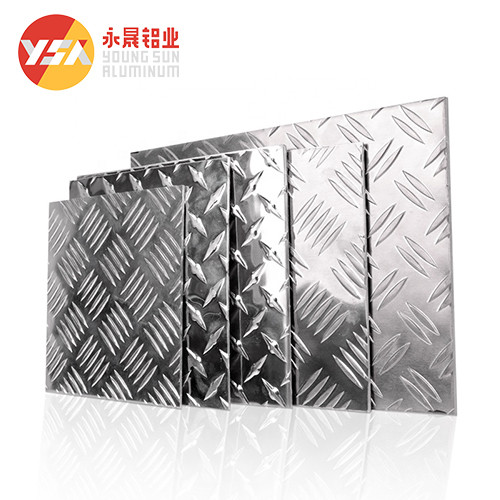

Available Checkered Plate Types
YongSheng supplies various aluminum checkered plates including:
- 5-bar aluminum checker plate
- Diamond aluminum tread plates
- Orange peel embossed aluminum plate
Our CLIMB aluminum checker plate meets military standards with pattern heights ranging from 0.9mm to 1.2mm, exceeding typical industry specifications. We also supply extra-wide aluminum tread plates up to 2200mm width.
Applications
Color embossed aluminum sheet and coil are widely used in:
- Refrigerator/freezer interiors
- Roofing and ceiling systems
- Wall decoration
- Household appliances
- Insulation works
- Cold storage facilities
- Industrial flooring
- Building construction
- Electrical applications
- Machinery components
Specifications
| Parameter | Details |
|---|---|
| Product Name | Embossed Aluminum sheet/coil |
| Alloy/Grade | 1000 Series, 3000 Series, 5000 Series |
| Temper | O-H112 |
| Thickness | 0.13mm-6.5mm |
| Width | 100mm-1600mm |
| Length | Custom requirements |
| Application | Construction, Flooring, etc. |
| Surface Treatment | Embossed |
| Pattern | Classic, altered, Diamond, 1-5 bars, checker, etc. |
| Delivery Time | 7-30 days after order confirmation |
| MOQ | 2 tons |
| Loading Port | Qingdao, Tianjin, Shanghai |
| Price Terms | FOB, CIF, CFR, CNF |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Standards | ASTM-B209, EN573-1, GB/T3880.1-2006 |
| Certificate | ISO, RoHS |
Aluminum Grade Specifications
| Series | Description |
|---|---|
| 1000 Series | Industrial Pure Aluminum (1050, 1060, 1070, 1100) |
| 3000 Series | Aluminum-manganese alloys (3A21, 3003, 3103, 3004, 3005, 3105) |
| 5000 Series | Al-Mg alloys (5052, 5083, 5754, 5005, 5086, 5182) |
| 6000 Series | Aluminum Magnesium Silicon Alloys (6063, 6061, 6060, 6351, 6070, 6181, 6082, 6A02) |
| 7000 Series | Aluminum, Zinc, Magnesium and Copper Alloys (7075, 7A04, 7A09, 7A52, 7A05) |
Product Images
Manufacturing Capabilities
Henan YongSheng Factory, located in Gongyi City industrial cluster area, specializes in aluminum product manufacturing including aluminum strip, color aluminum sheet/coil, aluminum circle disc, aluminum sheet, aluminum coil, embossed aluminum, and non-slip aluminum sheet.
We supply various aluminum grades: 1050, 1060, 1070, 1100, 3003, 3004, 3005, 3105, 5005, 5052, 5083, 5086, 5182, 5754, 6061, 6063, 6082, 7075, 8011 and more.
All products are manufactured independently with fast delivery, high quality, competitive pricing, and professional customer service. Our products are exported worldwide and consistently receive positive customer feedback.
Packing Details
- 20MT capacity in 20-foot container (recommended for cost efficiency)
- Three-layer protective packaging: thick fiber, foam, plastic
- Sufficient drying agent for long-distance sea transportation
- Wooden or steel pallets available per customer request
- External wooden box packaging
- Container securing to prevent transportation damage
- 24 wooden boxes per 20ft container
Our Services
- ISO Verified Outstanding Manufacturer
- Third-party inspection services: SGS, BV, CE, COC, AI
- Flexible Payment Options: T/T, LC, O/A, CAD, DAP
- Sufficient Stock Availability
- Quick Delivery Time, Long-term Price Validity
- Transport tracking with production, loading, and reinforcement photos
- Experienced Professional Sales Team
Frequently Asked Questions
Who are we?
Henan Yongsheng Aluminum Co., Ltd. specializes in aluminum products including Aluminum Strip, Color Aluminum Coil/Sheet, Aluminum Sheet, Aluminum Coil, Embossed Aluminum Coil/Sheet, and Mirror Aluminum Coil/Sheet. Our 100,000 square meter facility employs 476 staff with 20 casting lines, 2 color coating lines, 3 slitting lines, 4 shearing lines, and 4 embossed aluminum production lines, with annual output exceeding 200,000 tons and exports accounting for over 40%.
How can we guarantee quality?
- Free samples available via TNT, DHL, FEDEX, EMS, UPS
- Pre-production samples before mass production
- Final inspection before shipment
- Products meet ASTM, GB/T, and EN AW standards
- Quality inspection certificates and ISO certification provided
Do you have products in stock?
We maintain 10,000 tons of stock across various sizes. Contact us with your requirements for current stock details.
How long will it take to produce my order?
Standard production time is 7-25 working days, depending on order specifications.
How much will the shipping cost be?
Shipping costs depend on order size, weight, and shipping method selected.
Can you help me find a shipping company?
Yes, we have long-term partnerships with shipping companies and can provide competitive pricing and quality service.
Will our goods be damaged during long haul transportation?
No damage expected. We apply low-viscosity protective film to prevent scratches and use professional packaging methods to ensure safe arrival.
Why should you buy from us instead of other suppliers?
- 20 years of aluminum industry experience
- Source manufacturer with leading equipment and skilled team
- Competitive pricing, fast delivery, excellent quality, and professional service
- Comprehensive technical solutions
Reliable quality, reasonable pricing, and prompt delivery guaranteed. Tell us your requirements and we will provide the best solution.
