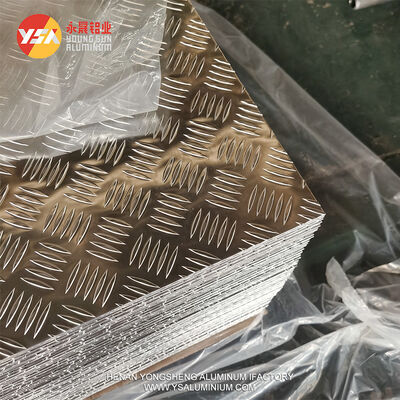

Aluminium Diamond Plate 5052 Embossed Aluminium Sheet 8 X 4 Aluminum Tread Plate
| Place of Origin | Henan Province , China |
|---|---|
| Brand Name | Henan Yongsheng |
| Certification | SGS, ISO, RoHS, etc. |
| Model Number | Aluminum Checkered Plate |
| Minimum Order Quantity | 2 tons |
| Price | 2900-3300 USD/Ton |
| Packaging Details | Standard Seaworthy Wooden Pallet Packing |
| Delivery Time | 7-21 workdays |
| Payment Terms | L/C,D/A,D/P,T/T,Western Union, |
| Supply Ability | 5000 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Diamond Plate 5052 Aluminum 8 X 4 Aluminium Sheet Aluminum Tread Plate | Alloy/Grade | 1000 Series,3000 Series, 5000 Series |
|---|---|---|---|
| Temper | O-H112 | Thickness | 0.13mm-6.5mm |
| Width | 100mm-1600mm | Length | As Per Your Requirements |
| Pattern | Classic , Altered, Diamond ,1-5 Bars ,checker, Etc. | Application | Construction , Flooring ,Refrigerator, Wine Cabinet, Kitchen Cabinet Etc. |
| Payment Terms | T/T, L/C | Price Terms | FOB, CIF, CFR, CNF, Etc. |
| Highlight | Diamond Plate Aluminium Sheet,5052 Aluminum Tread Plate,8 x 4 Aluminium Sheet |
||
Product Description

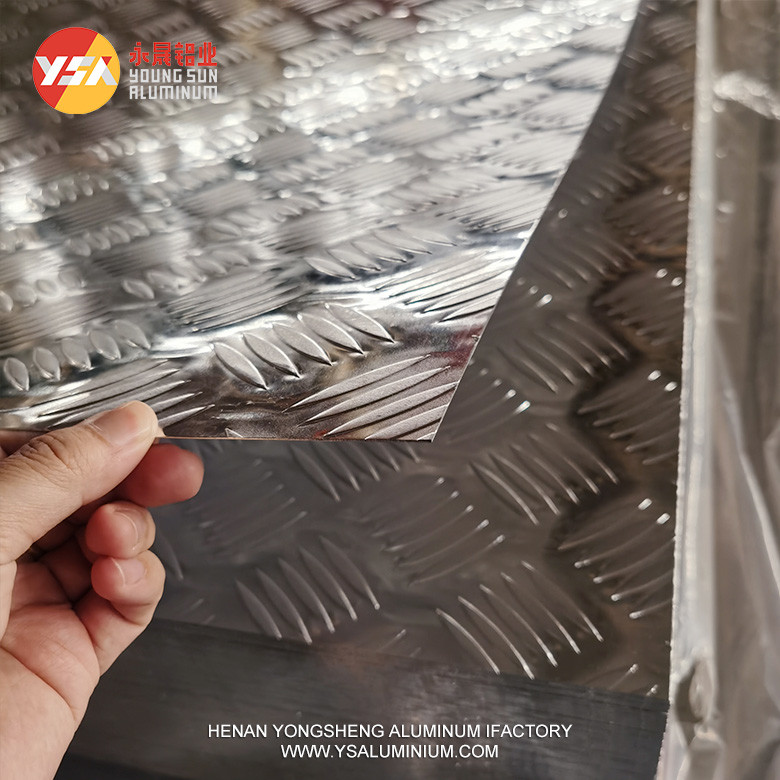

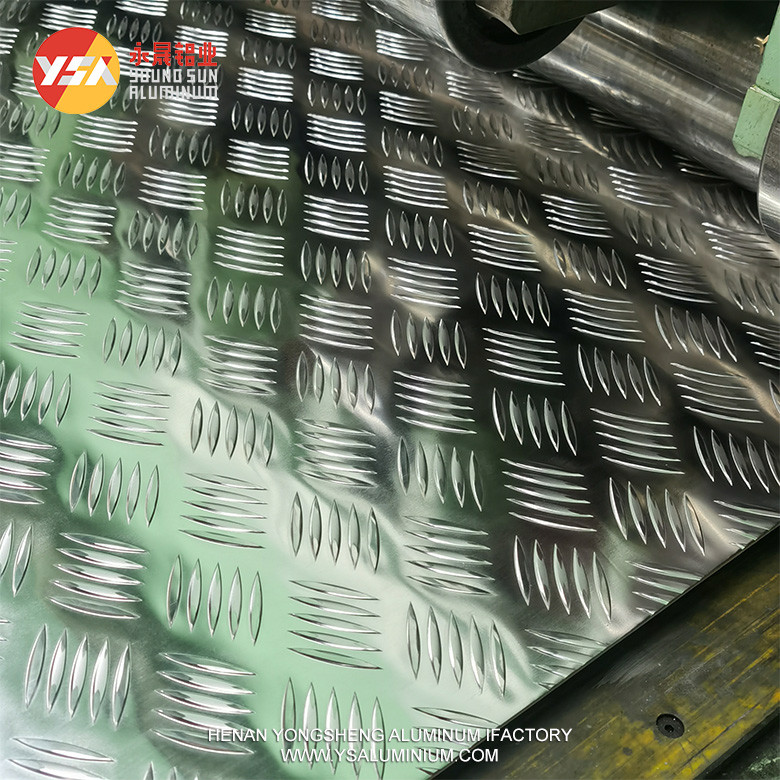

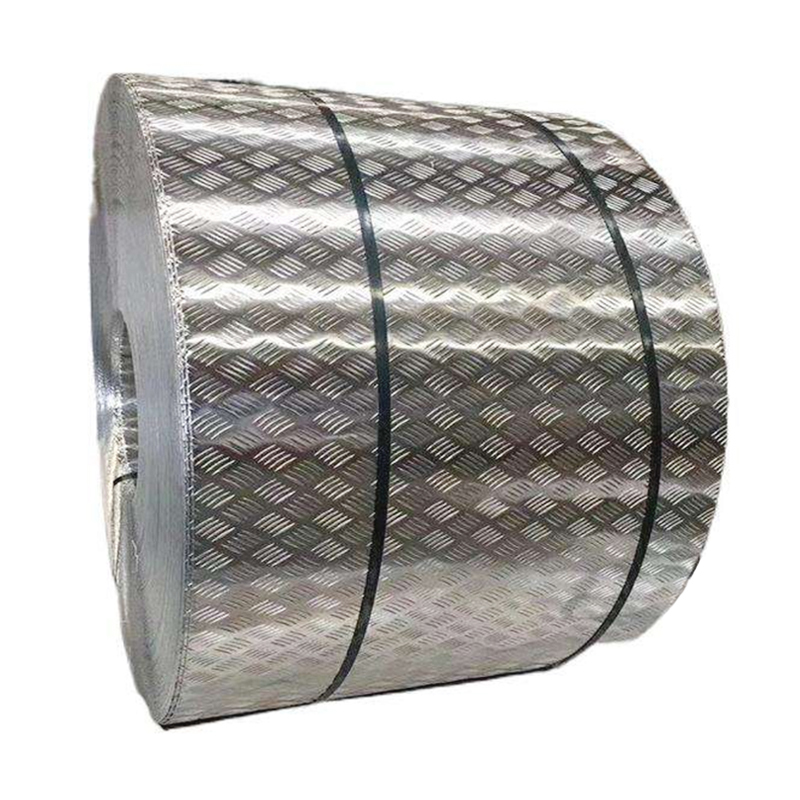

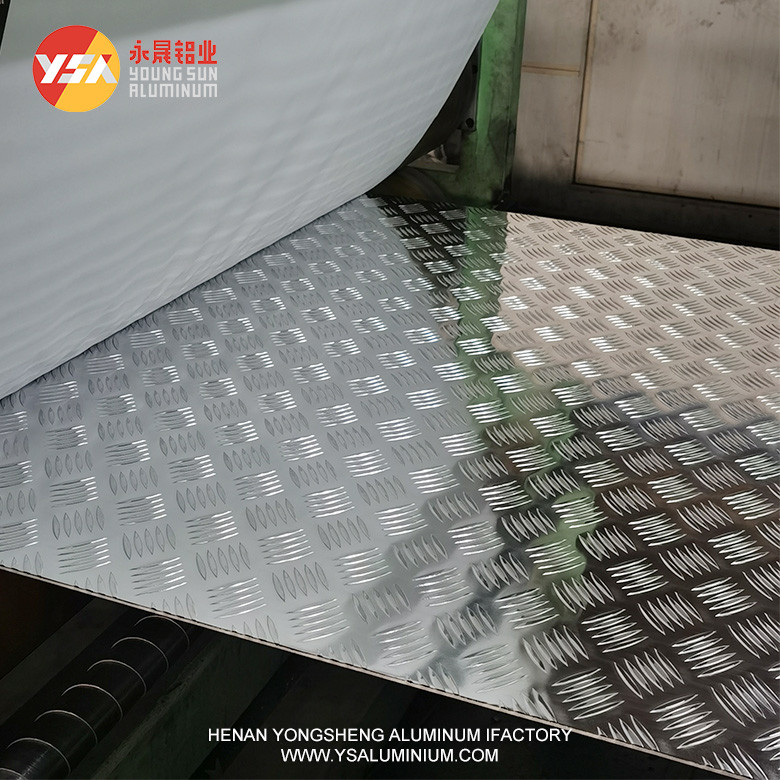

Diamond Plate 5052 Aluminum 8 x 4 Aluminium Sheet Aluminum Tread Plate
Patterned aluminum sheet, also known as embossed aluminum sheet, is available in various patterns including 5 bars, 3 bars, 2 bars, 1 bar, orange peel pattern, lentil shape, diamond shape, round bean shape, and flat round mixed shape. The 5-bar aluminum checkered plate is the most common variant in the market.
Material Composition
5052 aluminum sheet belongs to the Al-Mg alloy family, offering medium strength with excellent corrosion resistance, processing and forming capabilities, and welding performance. Its composition includes aluminum, magnesium, and small amounts of silicon and iron elements, providing superior corrosion resistance and formability.
Applications
5-ribs diamond aluminum sheet features an attractive appearance and effective anti-slip properties. It is widely used in transportation, construction, decoration, equipment surrounding floors, machinery, shipbuilding, and various industrial applications.
Available Patterns
We produce one-rib (pointer-shaped or gem-shaped), 2-bar, 3-bar, and 5-bar patterned plates. These embossed aluminum plates are extensively used for anti-slip floors, decorative applications, and various industrial uses in buildings, vehicles, and ships.
Product Specifications
| Material | 1000 series, 3000 series, 5000 series, 6000 series aluminum sheet |
| Technical | Hot rolled |
| Thickness | 0.12mm - 1.2mm |
| Effective Width | 750mm, 820mm, 840mm, 850mm, 900mm, 910mm, 1050mm, 1250mm |
| Length | Any length, typically less than 12m (depending on transportation requirements) |
| Color | Standard colors: blue, white, red (Special colors available according to RAL color system) |
| Characteristics |
|
| Packing | Plastic film + wood packaging, or customized according to customer requirements |
| Application | Building materials, container materials, machine structure parts, manufacturing shells of motors |
Product Gallery
