5052 H32 1060 H24 Al Embossed Aluminium 3003 H14 Aluminum Checkered Plate

  • 5052 H32 1060 H24 Al Embossed Aluminium 3003 H14 Aluminum Checkered Plate
  • 5052 H32 1060 H24 Al Embossed Aluminium 3003 H14 Aluminum Checkered Plate
  • 5052 H32 1060 H24 Al Embossed Aluminium 3003 H14 Aluminum Checkered Plate
  • 5052 H32 1060 H24 Al Embossed Aluminium 3003 H14 Aluminum Checkered Plate
Place of Origin Henan Province , China
Brand Name Yongsheng
Certification SGS, ISO, RoHS, etc.
Model Number Aluminum Checkered Plate
Minimum Order Quantity 2 Tons
Price 2800-3300 USD/Ton
Packaging Details Standard Seaworthy Wooden Pallet Packing
Delivery Time 7-20 workdays
Payment Terms L/C,D/A,D/P,T/T,Western Union
Supply Ability 5000 Tons Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Grade 1100 3003 5052 5754 Type Plate
Temper O-H112 Width 70mm~1600mm
Thickness 0.8mm-8mm Standard ASTM AISI JIS DIN GB,GB/T3880.1-2006
Sample For Free With Fast Delivery Application Transportation, Construction, Machinery, Shipbuilding And So On
Highlight

1060 H24 Aluminum Checkered Plate

,

3003 H14 Aluminum Checkered Plate

,

5052 H32 Aluminum Checkered Plate
Leave a Message
Product Description
5052 H32 1060 H24 Al Embossed Aluminum 3003 H14 Aluminum Checkered Plate
Product Overview
Embossed aluminum plate is manufactured through mechanical processing where aluminum sheets are rolled through a press to create raised patterns on the surface. This process enhances both the aesthetic appeal and functional properties of the material.
Available Embossed Patterns
  • Five-Rib Pattern: Excellent anti-slip properties with parallel patterns at 60-80 degree angles, widely used for flooring and platforms
  • Orange Peel Pattern: Classic and variant designs resembling orange peel texture, commonly used in refrigeration and packaging applications
  • Lentil Pattern: Effective anti-slip design ideal for vehicle floors, industrial platforms, and elevator surfaces
  • Spherical Pattern: Pearl-like spherical designs offering enhanced strength for packaging and decorative applications
  • Compass Pattern: Anti-slip aluminum plate with specialized directional patterning
  • Other Patterns: Wavy, water ripple, corrugated, rattan, triangular, strip, pebble, and various custom embossed designs
Technical Specifications
Aluminium Alloy Thickness (mm) Width (mm) Temper
A1050, A1060, A1070, A1100 0.2-8.0 20-2300 O, H12, H14, H16, H18, H22, H24, H26
A3003, A3004, A3105 0.2-8.0 20-2300 O, H12, H14, H16, H18, H22, H24, H26
A5052, A5005, A5083, A5754 0.2-8.0 20-2300 O, H12, H14, H34, H32, H36, H111, H112
A6061, A6082, A6063 0.2-8.0 20-2300 T4, T6, T651
A8011 0.2-8.0 20-2300 O, H12, H14, H16, H18, H22, H24, H26
Additional Specifications:
Material Process: CC and DC
Custom Sizes: Available per client requirements
Surface Finishes: Mill finish, color coated (PVDF & PE), stucco embossed, bright polish, anodizing, mirror, brush, perforated, tread plate, corrugated
Minimum Order Quantity: 1 ton per size
Delivery Time: Within 25 days after receipt of LC or deposit
Quality Assurance
All materials undergo tension leveling to ensure flatness and are free from defects including oil stains, roll marks, waves, dents, and scratches. Our A+++ quality production process has passed SGS and BV inspections.
Applications
Construction, building decoration, curtain walls, roofing, molds, lighting, ship building, aircraft, tanks, truck bodies, and various industrial applications.
Packaging
Standard export-worthy wooden pallets with approximately 2 tons per pallet. Pallet weight can be customized according to client requirements.
Product Gallery

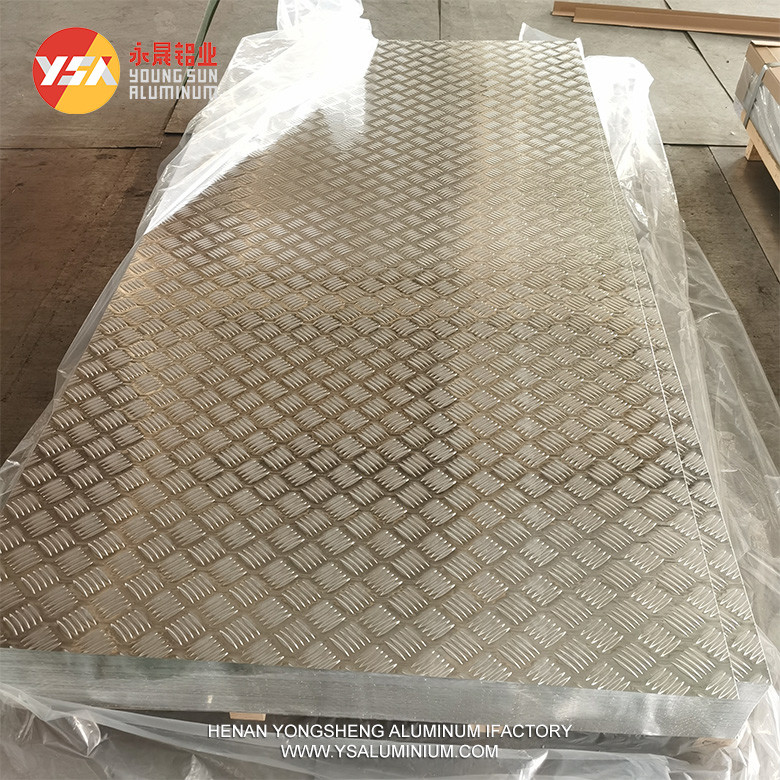

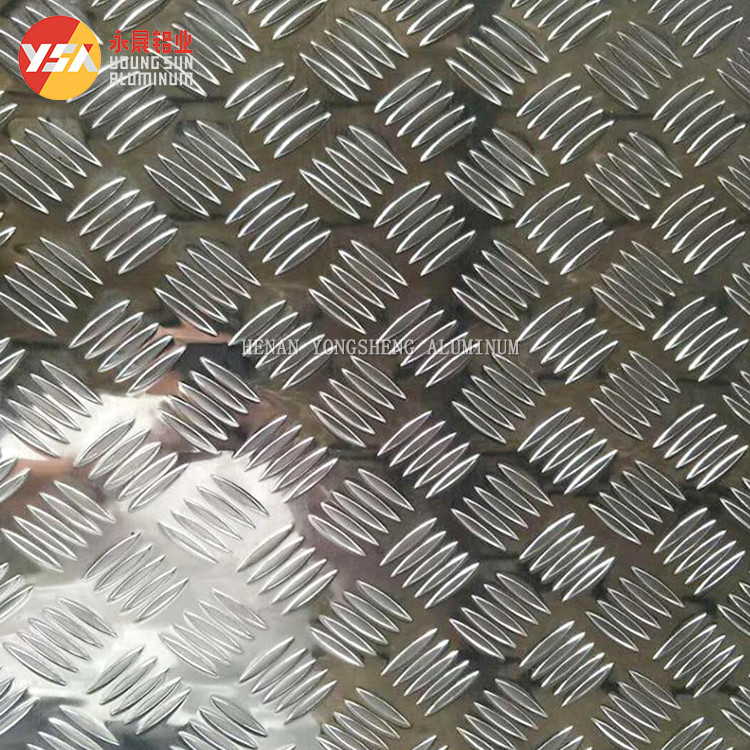

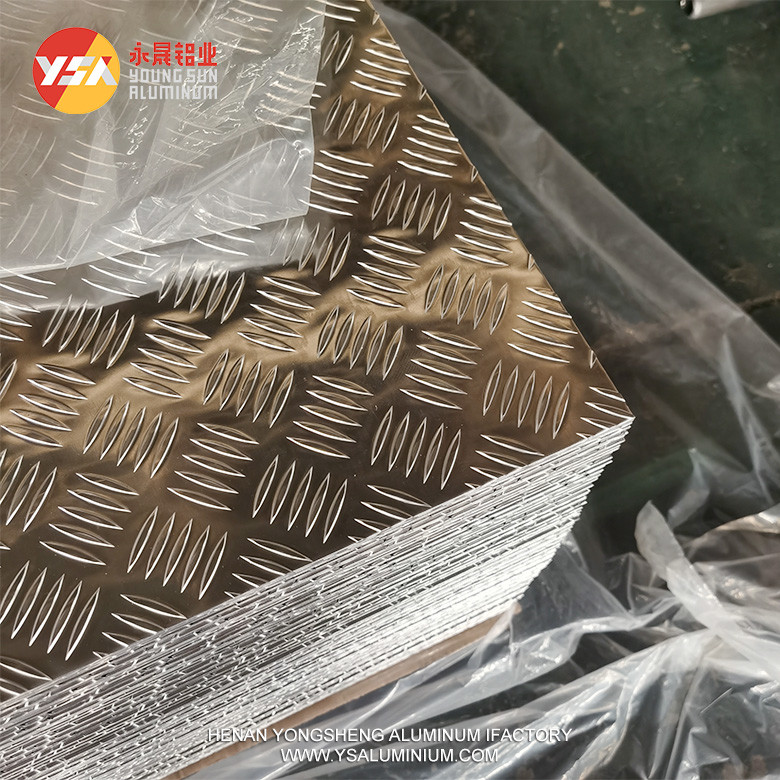

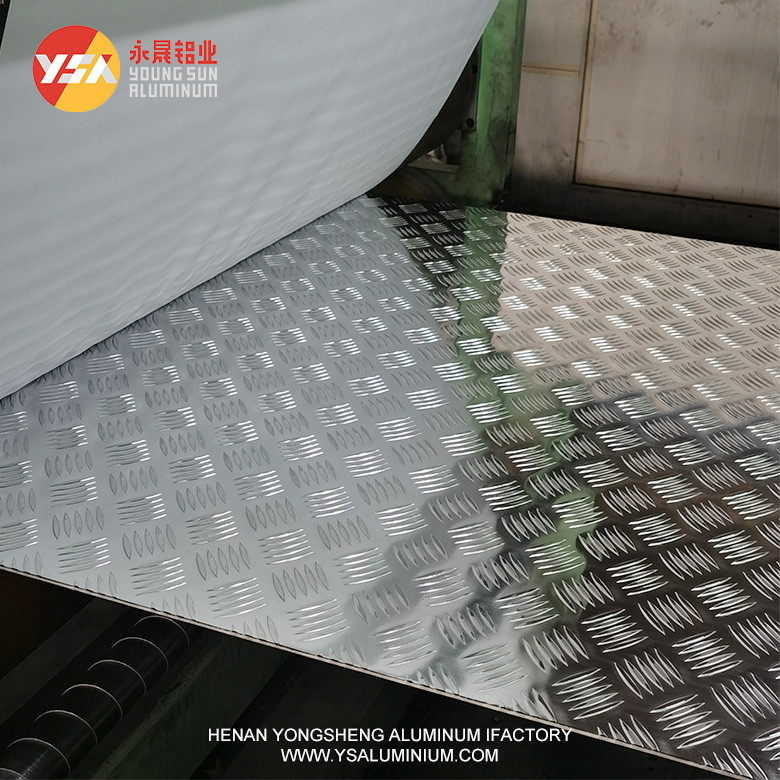

5052 H32 1060 H24 Al Embossed Aluminium 3003 H14 Aluminum Checkered Plate 0 5052 H32 1060 H24 Al Embossed Aluminium 3003 H14 Aluminum Checkered Plate 1 5052 H32 1060 H24 Al Embossed Aluminium 3003 H14 Aluminum Checkered Plate 2 5052 H32 1060 H24 Al Embossed Aluminium 3003 H14 Aluminum Checkered Plate 3 5052 H32 1060 H24 Al Embossed Aluminium 3003 H14 Aluminum Checkered Plate 4
