3003 H14 Aluminum 1mm 2mm 3mm 4mm 6mm 5mm Aluminum Alloy Sheet
| Place of Origin | Zhengzhou Henan |
|---|---|
| Brand Name | Henan Yongsheng |
| Certification | ISO, RoHS |
| Model Number | 3003 H14 Aluminum |
| Minimum Order Quantity | 1 ton |
| Price | FOB, CIF, CFR, CNF, etc. |
| Packaging Details | Seaworthy Export Standard Wooden Box |
| Delivery Time | 7-25 days after order confirmation |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Alloy | 3003 | Temper | O-H112 |
|---|---|---|---|
| Thickness | 0.12-6.00mm,or Customer's Requirement | Width | 600mm-1500mm, According To Customer's Requirement |
| Surface | Bright, Polished, Hair Line, Brush, Sand Blast, Checkered, Embossed, Etching, Etc | MOQ | 1 Ton |
| Packaging | Standard Export Package,such As Wooden Box Or As Required. | Technology | Hot Rolled ( DC ), Cold Rolling( CC ), Cast |
| Highlight | 4mm Aluminum Alloy Sheet,5mm Aluminum Alloy Sheet,3mm Aluminum Alloy Sheet |
||
Product Description

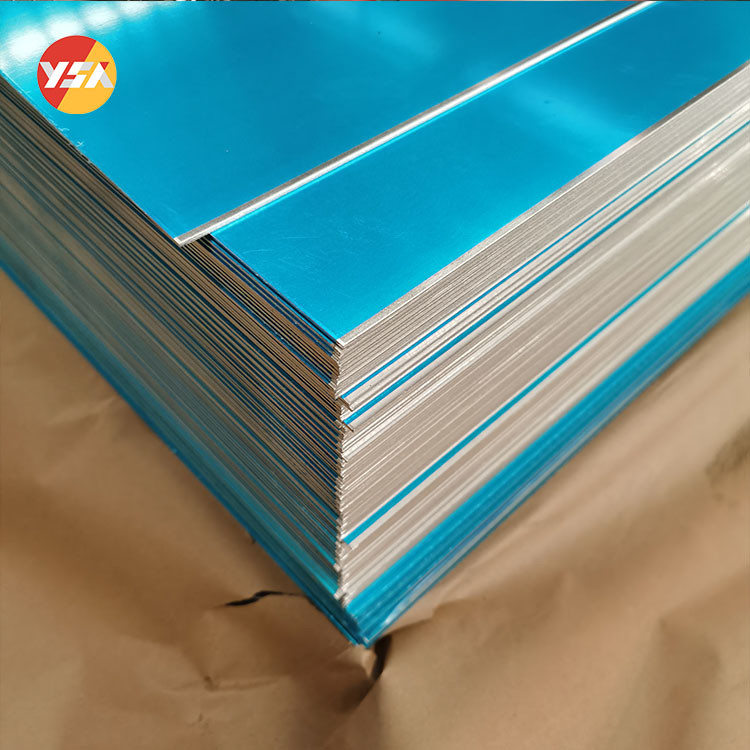

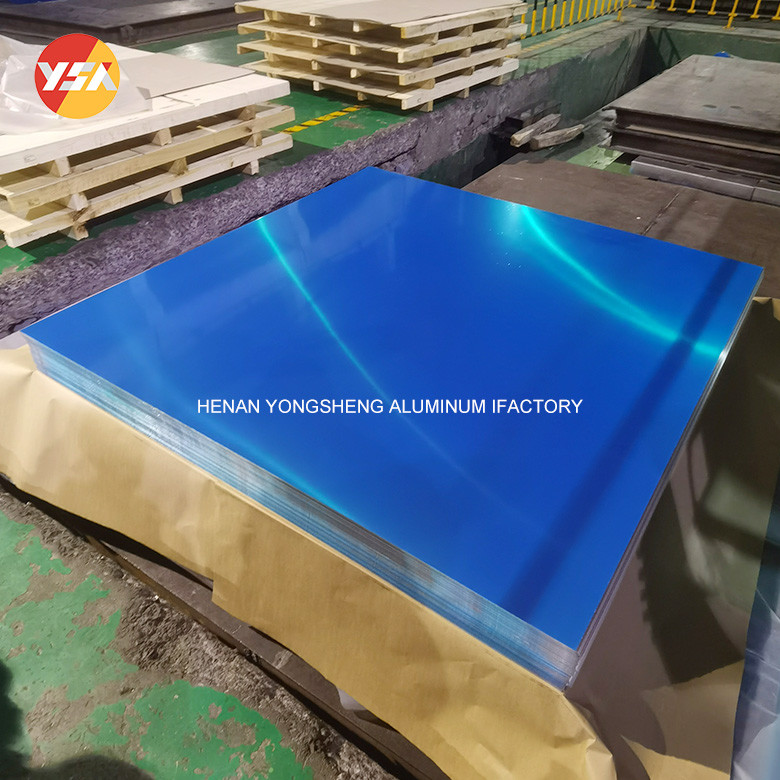

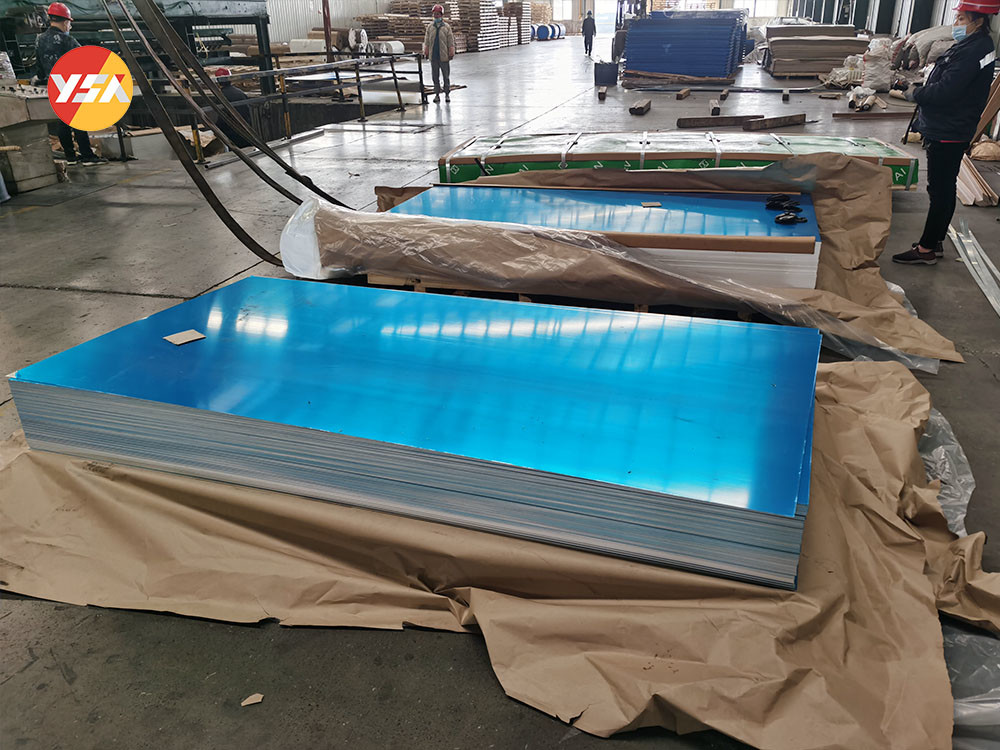

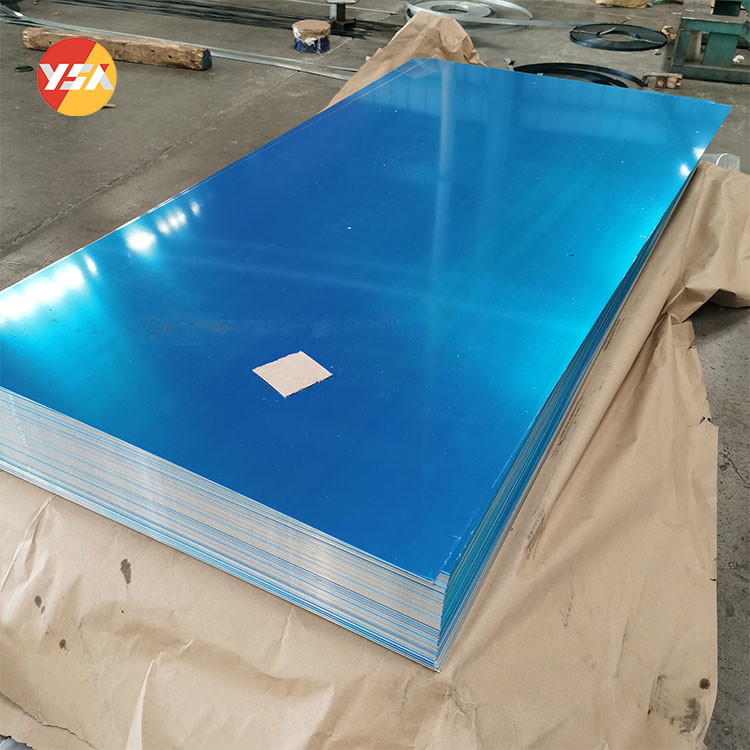

3003 H14 Aluminum Alloy Sheet
The 3003 H14 Aluminum Alloy Sheet is a versatile material renowned for its excellent formability, corrosion resistance, and balanced strength. Available in thicknesses from 1mm to 6mm, this product serves diverse applications across multiple industries.
Applications
- Construction: Ideal for roofing, cladding, and decorative panels due to weather resistance and aesthetic appeal
- Automotive & Transportation: Used in vehicle body panels, fuel tanks, and heat exchangers for lightweight durability
- Industrial Manufacturing: Perfect for tanks, containers, and machinery parts requiring corrosion resistance and weldability
- Consumer Goods: Commonly used in kitchenware, signage, and packaging due to non-toxic, easy-to-clean properties
Product Specifications
| Grade | 3003 |
|---|---|
| Temper | H24 / H112 |
| Thickness/Size |
H24: 1-6mm / 1250×2500mm H112: 8-200mm / 1250×2500mm, 1500×3000mm (limited availability) |
| Surface | Natural color, smooth finish with protective film (thickness <100mm) |
- Thickness >6mm can be custom cut to smaller sizes
- Ready stock available - contact us for custom specifications
Chemical Composition (Standard max, W%)
| Element | Content |
|---|---|
| Al | Balance |
| Si | 0.6 |
| Fe | 0.7 |
| Cu | 0.05-0.2 |
| Mn | 1.0-1.5 |
| Mg | - |
| Zn | 0.1 |
| Ti | - |
| Other | - |
Mechanical Properties (Standard Values)
| Property | H112 | H24 |
|---|---|---|
| Tensile Strength (MPa) | ≥ 100 | ≥ 145 |
| Yield Strength (MPa) | ≥ 40 | ≥ 115 |
| Elongation (%) | ≥ 18 | ≥ 6 |
Product Features
Superior Corrosion Resistance
The manganese content in 3003 H14 enhances resistance to corrosion, making it suitable for both indoor and outdoor applications.
Excellent Formability
This alloy can be easily bent, stamped, or shaped without cracking, ensuring flexibility in manufacturing processes.
Moderate Strength
Offers a balance of strength and workability, ideal for applications requiring durability without excessive rigidity.
Lightweight
Aluminum's low density makes this sheet material easy to handle and transport, reducing overall project costs.
Weldability and Machinability
Can be welded and machined with ease, allowing for seamless integration into various designs and structures.
