3000 Series PE PVC Coated Aluminum Trim Coil Roll Painted Aluminum Sheet

  • 3000 Series PE PVC Coated Aluminum Trim Coil Roll Painted Aluminum Sheet
  • 3000 Series PE PVC Coated Aluminum Trim Coil Roll Painted Aluminum Sheet
  • 3000 Series PE PVC Coated Aluminum Trim Coil Roll Painted Aluminum Sheet
  • 3000 Series PE PVC Coated Aluminum Trim Coil Roll Painted Aluminum Sheet
Place of Origin Henan Province, China
Brand Name YONGSHENG
Certification SO,RoHS,MSDS,MTC
Model Number 1000 3000 series
Minimum Order Quantity 5 Ton
Price 2950-3150 USD/Ton
Packaging Details Standard Sea-worthy Packing
Delivery Time 7-25 days after order confirmation
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 5000 Tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Alloy 1050, 1060, 1100, 3003, 3004, 3105, Etc. Temper O-H112
Thickness 0.2-3mm Width 10mm-1600mm, Can Be Divided Into Strips
Tolerance ±1% Surface Treatment PVDF Coating , PE Coating Etc.
Coating Thickness PE≥18 μm, PVDF≥25 μm Color Silver,bronze,black,gold,blue,grey,bright,etc
Packing Export Seaworthy Wooden Pallet Sample Free
Highlight

PE PVC coated aluminum trim coil

,

painted aluminum sheet roll

,

color coated aluminum coil
Leave a Message
Product Description
3000 Series PE PVC Coated Aluminum Trim Coil Roll Painted Aluminum Sheet
High-performance coated aluminum sheets designed for industrial and architectural applications with superior weather resistance and durability.
Product Specifications
Alloy Thickness (mm) Coating Thickness (micron) Width (mm) Temper
A1050,A1060,A1070,A1100,A1235,A1245 0.15-3.0 PE≥14 PVDF≥25 20-2200 O,H12,H22,H14,H24,H16,H26,H18
3.0-12.0 - 20-2200 H111,H112
A3003,A3004,A3105 0.2-4.0 - 20-2200 O,H12,H22,H14,H24,H16,H26,H18
4.0-12.0 - 20-2200 H111,H112
A5052,A5083,A5754,A5005 0.2-4.0 - 20-2200 O,H12,H22,H14,H24,H16,H26,H18
4.0-12.0 - 20-2200 H111,H112
A6061,A6082,A6063 0.15-12 - 20-2200 T6,T4,T651
A8011,1235 0.006-0.2 - 20-2200 O,H14,H18,H24
Coating Finish: PVDF (Polyvinylidene Fluoride), PE (Polyester)
Coating Hardness: More than HB (pencil resistance)
Key Advantages
  • High temperature resistant
  • Weathering resistant
  • Scrubbing resistant
  • Sound insulation
  • Acid or alkali proof
  • Fireproof
  • Light weight material for easy construction and installation
ID: 405MM, 505mm
Packing: Export wooden pallets, wooden case
Standards: ASTM-B209, EN573-1, GB/T3880.1-2006
PE vs PVC Coated Aluminum Comparison
PE coated aluminum sheets and PVC coated aluminum sheets both belong to surface-coated aluminum sheets with aluminum alloy sheet as the core base material. The core differences lie in the coating materials.
PE Coated Aluminum Sheet
Key Advantages:
  • Excellent weather resistance and corrosion resistance for outdoor and harsh environments
  • Good flexibility and strong processing adaptability for complex shape requirements
  • High long-term stability with low maintenance cost
  • Environmentally friendly, suitable for both indoor and outdoor use
Main Disadvantages:
  • Lower surface hardness and scratch resistance
  • Decorative texture lacks three-dimensional effect
  • Higher production cost compared to PVC
PVC Coated Aluminum Coil
Key Advantages:
  • High surface hardness and excellent scratch resistance
  • Strong three-dimensional texture with vivid colors for enhanced decorative effect
  • Lower production cost with simple coating process
Main Disadvantages:
  • Poor weather resistance and shorter service life outdoors
  • Limited flexibility and processing capabilities
  • Poor heat resistance, unsuitable for high-temperature environments
  • Potential release of harmful substances, requiring environmental testing
Purchase Recommendations
  • Outdoor long-term use (exterior walls, outdoor advertisements): Choose PE coated aluminum sheets with weather-resistant type coating
  • Indoor decoration with limited budget (wardrobes, display cases): Consider PVC coated aluminum sheets with environmental testing report (RoHS, GB 18585)
  • Complex processing requirements (bending, stamping): Must choose PE coated aluminum sheets (PVC prone to cracking)
  • High-temperature environments (kitchens, heat sources): PVC strictly prohibited; PE recommended
Maintenance Guidelines
PE Coated Aluminum Sheet
  • Clean with water or neutral cleaner
  • Avoid hard-bristled brushes to prevent scratches
  • Outdoor use: Clean every 1-2 years to extend service life
PVC Coated Aluminum Sheet
  • Avoid contact with high temperatures (hot water, ovens)
  • Clean with dry cloth or weakly alkaline cleaner
  • Avoid strong solvents (gasoline, etc.)
  • Outdoor use: Inspect every six months; replace immediately if coating cracks
Product Images

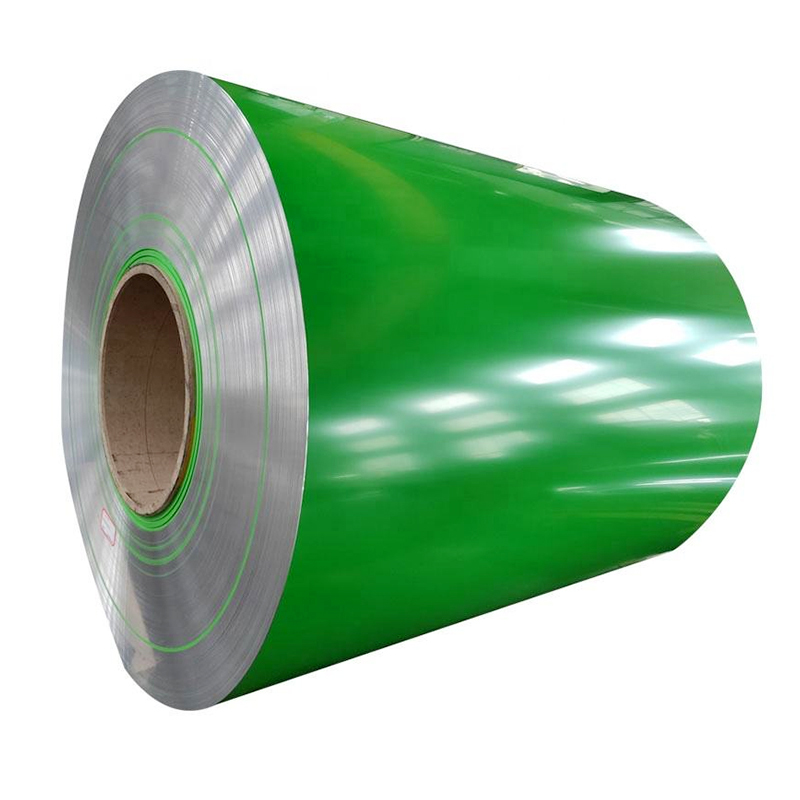

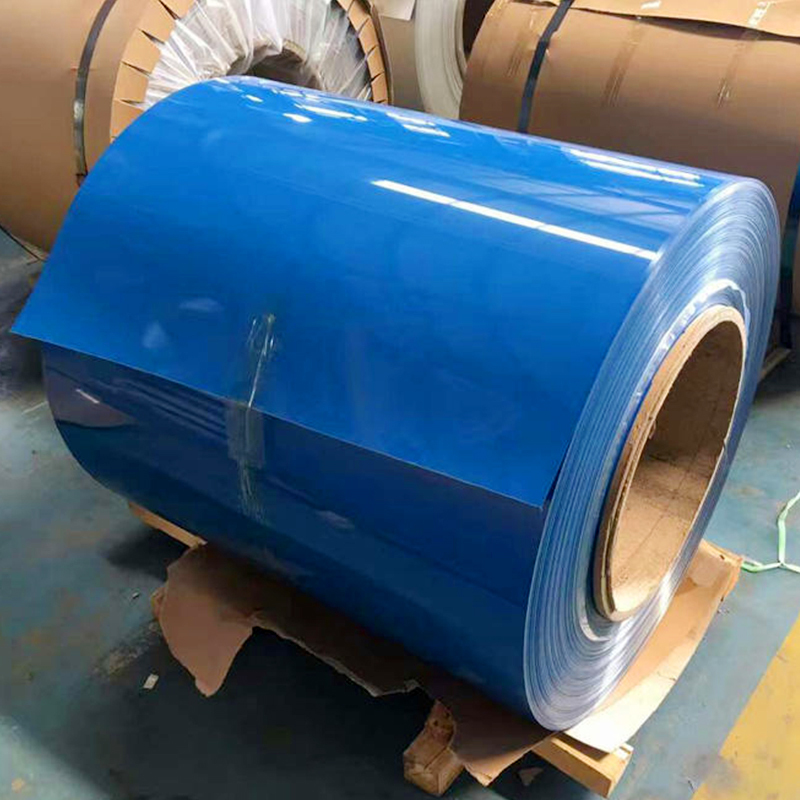

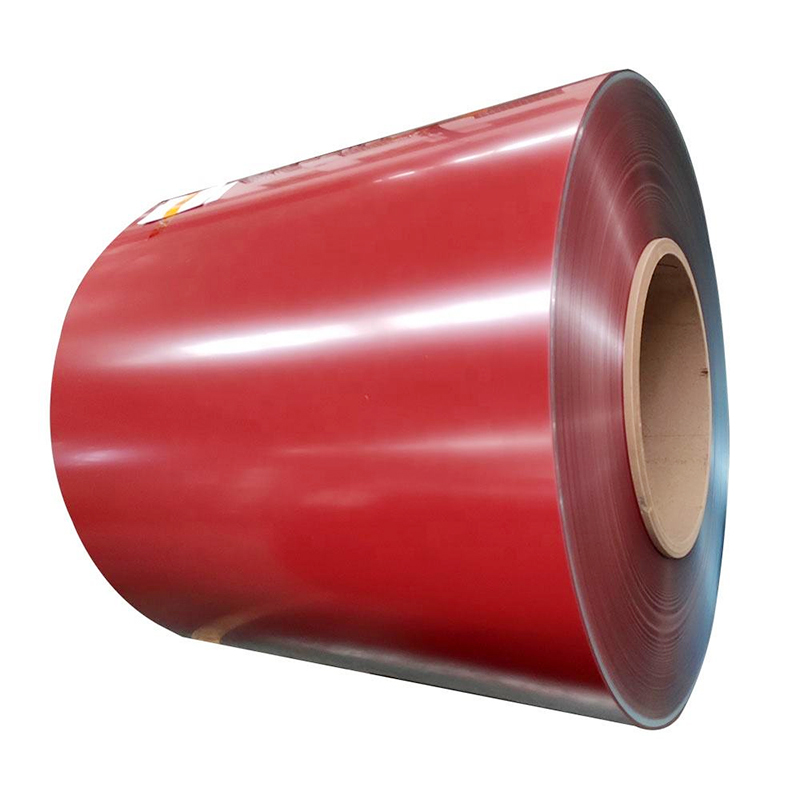

3000 Series PE PVC Coated Aluminum Trim Coil Roll Painted Aluminum Sheet 0 3000 Series PE PVC Coated Aluminum Trim Coil Roll Painted Aluminum Sheet 1 3000 Series PE PVC Coated Aluminum Trim Coil Roll Painted Aluminum Sheet 2
Product Applications

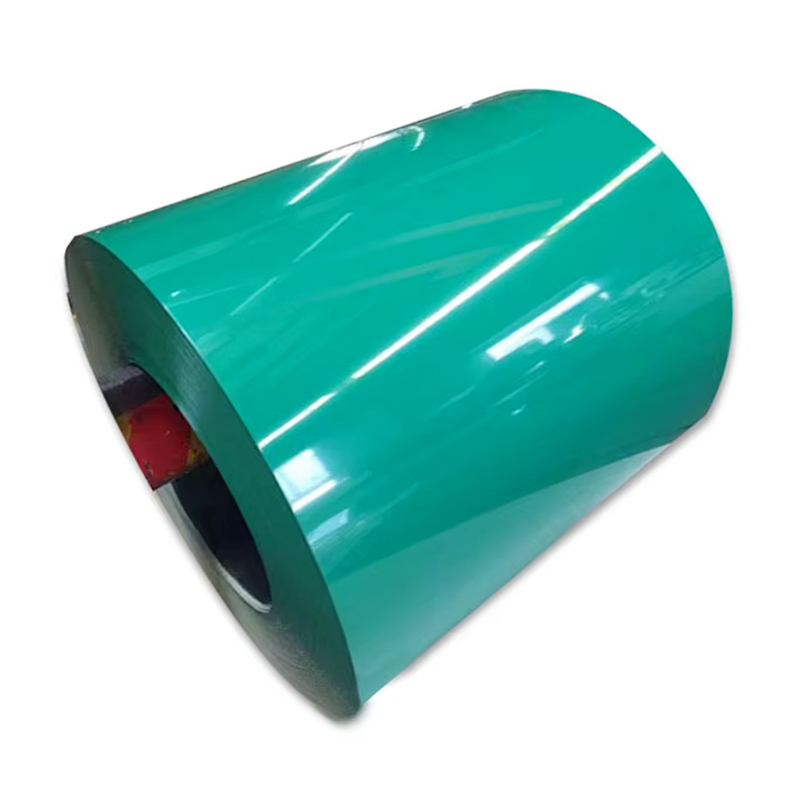

3000 Series PE PVC Coated Aluminum Trim Coil Roll Painted Aluminum Sheet 3
