Coating Thickness PVDF 25 Micron 1050 1060 Aluminum Coil Stock

Place of Origin	Henan Province, China
Brand Name	Henan Yongsheng
Certification	EN10147/EN10142/DIN 17162/JIS G3302/ASTM A653
Model Number	PVDF 25 Micron 1050 1060
Minimum Order Quantity	3 Ton
Packaging Details	Wooden package
Delivery Time	7-25 days after order confirmation
Payment Terms	L/C, D/A, D/P, T/T
Supply Ability	5000 Tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Alloy/Grade	1050 1100 3003 3105 ,etc	Temper	O-H112
Thickness	0.022-3.0mm	Width	Standard Width:1240mm; 1200mm; All Width: 30mm-1600mm
Outter Diameter	1200mm	Coating	PE Or PVDF
Place Of Origin	Henan Province, China	Port	QingDao, ShangHai, TianJin
Highlight	1050 aluminum coil , 25 Micron Aluminum Coil

Leave a Message

Product Description

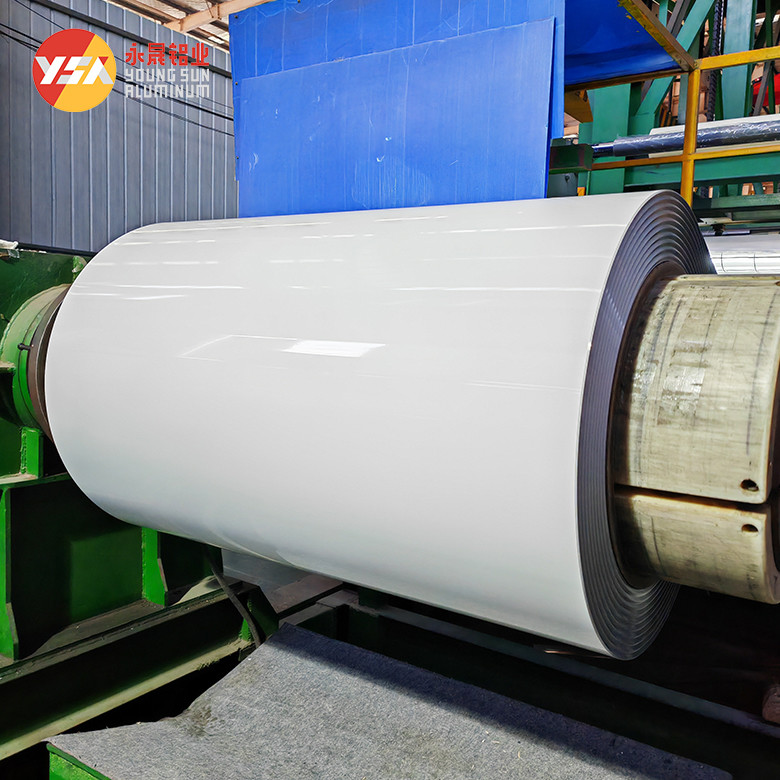

PVDF Coated Aluminum Coil with 25 Micron Thickness

Color coated aluminum coil is a high-performance material manufactured using premium aluminum substrates (1060/3003 series) that undergo surface degreasing, chemical treatment, and multi-layer coating application (fluorocarbon/PVDF/polyester) followed by baking. This process creates a material with exceptional durability and aesthetic appeal.

Key Advantages: Excellent weather resistance (20+ years without fading), superior scratch and abrasion resistance, environmentally friendly and non-toxic (meets food packaging standards), vibrant color options with full customization, and 30% lighter weight than traditional color steel plates.

Product Features

Lightweight Construction: Aluminum material reduces product weight for easier transportation and installation
High Strength: Aluminum alloy provides excellent structural strength for diverse application requirements
Superior Corrosion Resistance: Polyester coating protects against moisture and chemical exposure, extending product lifespan
Advanced Coating Technology: Uniform coating application with strong adhesion ensures consistent performance
Customizable Options: Wide range of colors and gloss levels available to match design specifications

Applications

Building Facades: Enhances aesthetics and protection for modern architectural structures
Roofing Systems: Provides waterproof and weather-resistant roofing solutions
Interior Decoration: Suitable for wall panels, ceilings, and interior architectural elements
Advertising Signage: Outdoor signs with excellent weather resistance and vibrant color retention
Industrial Transport: Wagon linings and container panels offering wear resistance and reduced maintenance
Electronics & Appliances: Air conditioning panels and LED lampshades with electrostatic spraying and precise color matching
Food Packaging: Can lids, beverage cans, and food sealing bags (FDA certified for safety)

Technical Specifications

Product Name	Aluminum Gutter Coil
Available Alloys	1100, 3003, 1050, 3105, 5005, etc.
Thickness Range	0.022mm to 3.0mm
Width Options	Standard: 1240mm, 1200mm \| Custom: 30mm - 1600mm
Coil Dimensions	Outer Diameter: 1200mm \| Inner Diameter: 405mm, 505mm
Weight Capacity	2.5T/coil, 3.0T/coil
Coating Types	PE, PVDF
Surface Finishes	Embossed, mill finish, coated
Color Options	All RAL colors available
Gloss Levels	10-90% (EN ISO-2813:1994)
Coating Thickness	PE: ≥18 micron \| PVDF: ≥25 micron
Coating Hardness	≥2H pencil resistance
Coating Adhesion	5J (EN ISO-2409:1994)
Impact Resistance	No peeling or cracking (50 kg/cm, ASTMD-2794:1993)
MEK Resistance	≥100 cycles
