3003 Coated Aluminum Coil for Great Wall ACP 0.5x1200mm 0.6x1200mm

Place of Origin	Zhengzhou Henan
Brand Name	Henan Yongsheng
Certification	ISO, RoHS
Model Number	Color Aluminum Coil
Minimum Order Quantity	1 ton
Price	FOB, CIF, CFR, CNF, etc.
Packaging Details	Seaworthy Export Standard Wooden Box
Delivery Time	7-25 days after order confirmation
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	5000 tons per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Alloy	3003	Temper	O-H112, Etc
Thickness	0.2mm--3.0mm	Width	30mm--1600mm
Single Weight	2.5 Ton/Roll Or Customized	Thickness Of Coating	PE Coating More Than 18um / PVDF More Than 25um
MOQ	1 Ton	Packing	Exprot Wooden Pallet
Highlight	0.6x1200mm Coated Aluminum Coil , Great Wall ACP Coated Aluminum Coil , 0.5x1200mm Coated Aluminum Coil

Leave a Message

Product Description

3003 Coated Aluminum Coil for Great Wall ACP

Available in 0.5x1200mm and 0.6x1200mm specifications

Manufacturing Process

Raw Material Input: Continuous unwinding ensures smooth coil feeding into production line
Surface Preparation: Comprehensive cleaning, chemical treatment, and drying of both surfaces
Roller Coating: Application of primer and topcoat using composite fluorocarbon coatings
Curing Process: Controlled baking and cooling to achieve durable, high-quality finish

Product Features

Lightweight: Aluminum density of 2.73g/cm³ (1/3 that of steel)
High Strength: Enhanced through alloy composition and heat treatment
Corrosion Resistant: Natural oxide layer provides excellent rust prevention and acid/alkali resistance
Versatile Finishing: Suitable for anodizing, electrophoresis, chemical treatment, polishing, and painting
Excellent Formability: Easy to process and shape as required
Conductive: Good electrical conductivity with non-magnetic properties
Easy Installation: Compatible with riveting, welding, and adhesive bonding methods
Environmentally Friendly: 100% recyclable material

Technical Specifications

Parameter	Specification
Aluminum Alloy	1050, 1060, 1100, 3003, 3004, 3105, 5052, 5083
Temper	H12, H14, H16, H22, H24, H26, O, H112
Thickness	0.2mm - 3.0mm
Width	30mm - 1600mm
Coil ID	505 mm
Single Weight	2.5-ton roll or customized
Coating Thickness	PE coating ≥18μm / PVDF ≥25μm
Color Options	Solid, metallic colors, wood/marble patterns
Paint Quality	Premium brands (PPG, BECKER, AkzoNobel)
MOQ	3 tons (varies by specification)
Production Capacity	100,000 Tons/Year
Packaging	Export wooden pallet

Applications

Raw material for ceiling systems, aluminum composite panels, aluminum sheets, sign boards, kitchen cabinets, display platforms, decorative elements, and wall cladding.

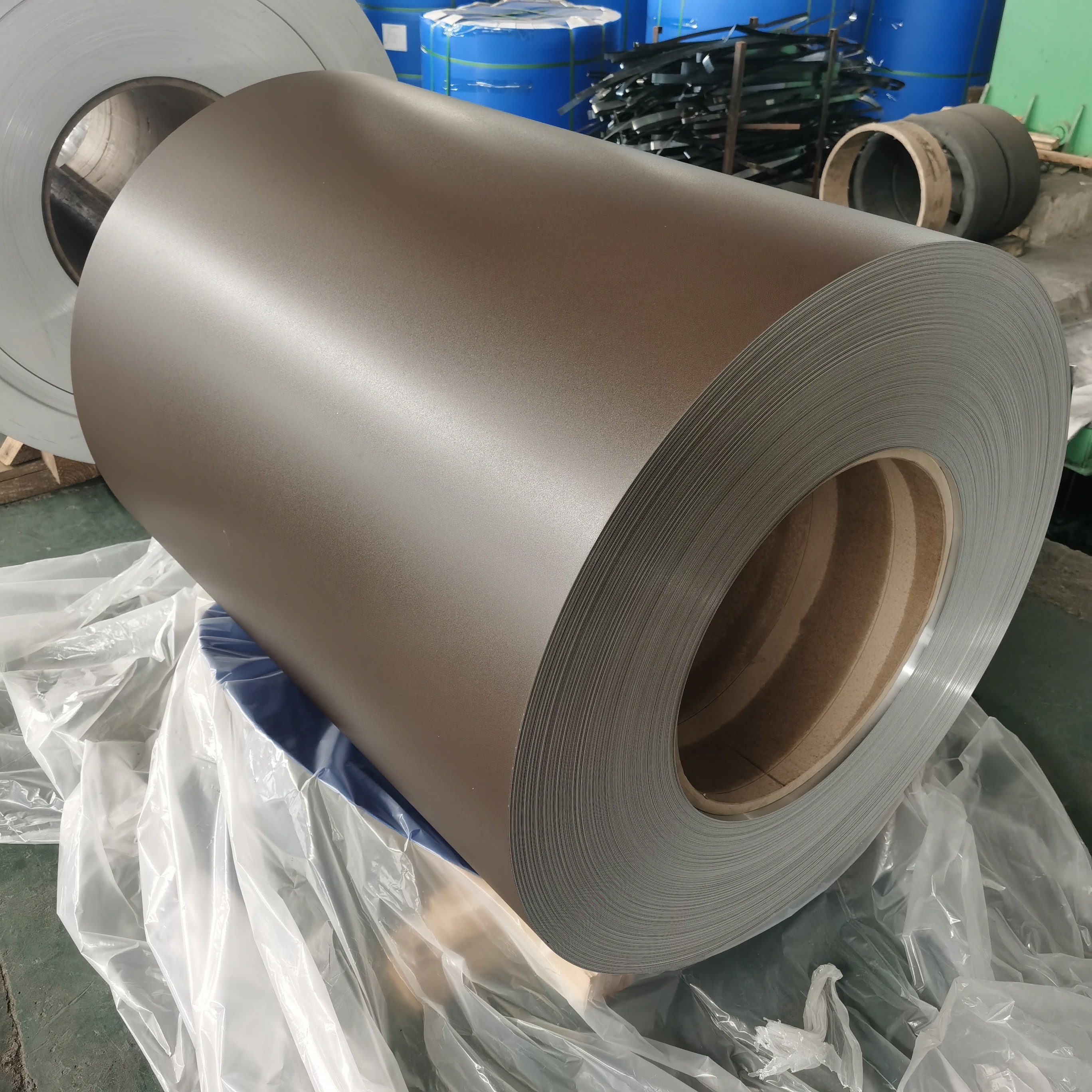

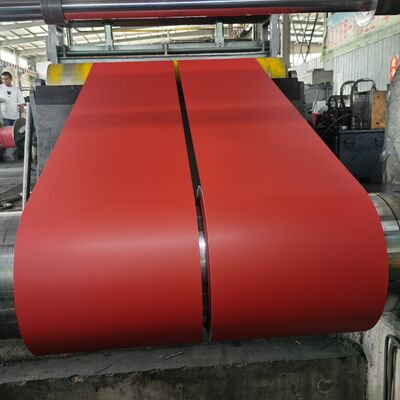

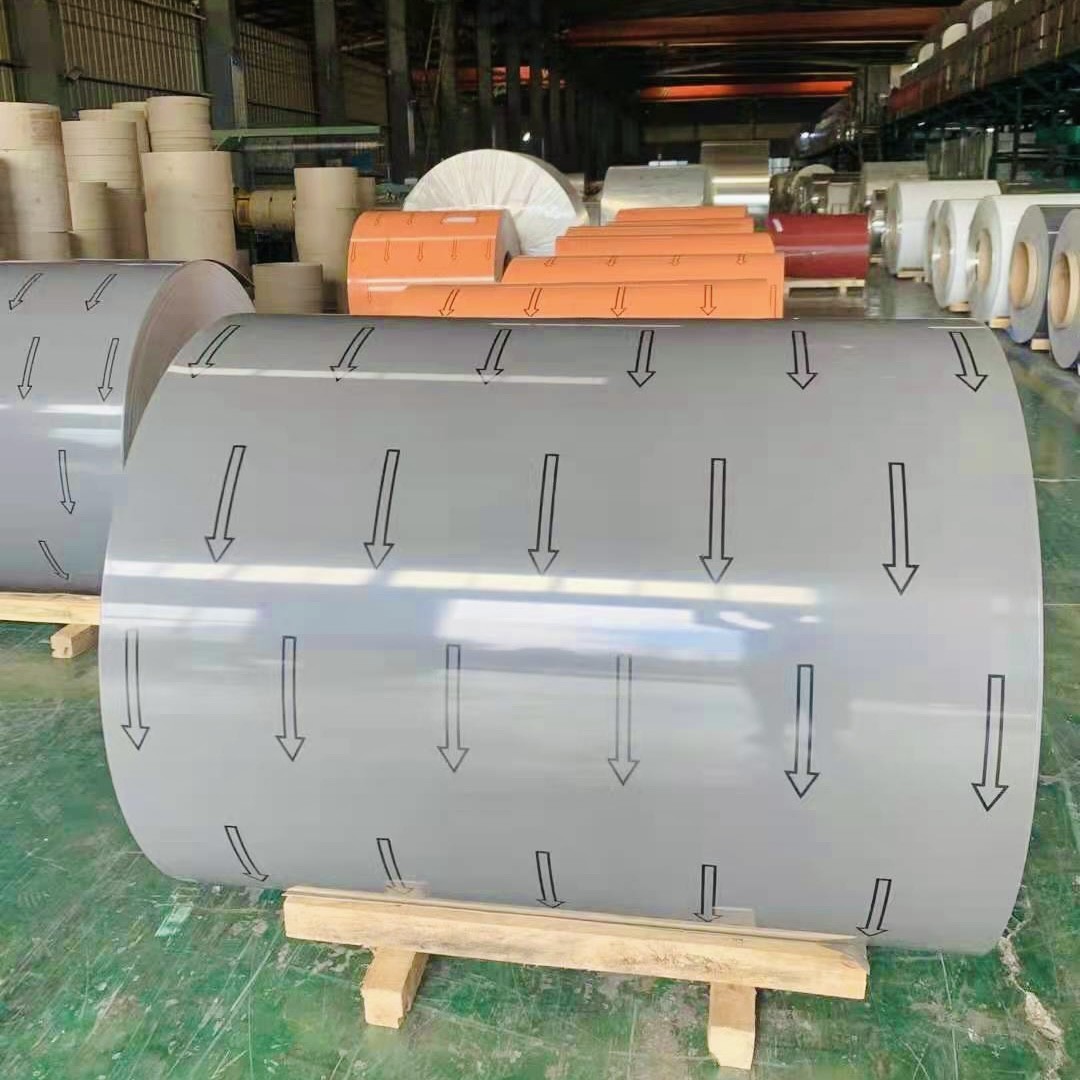

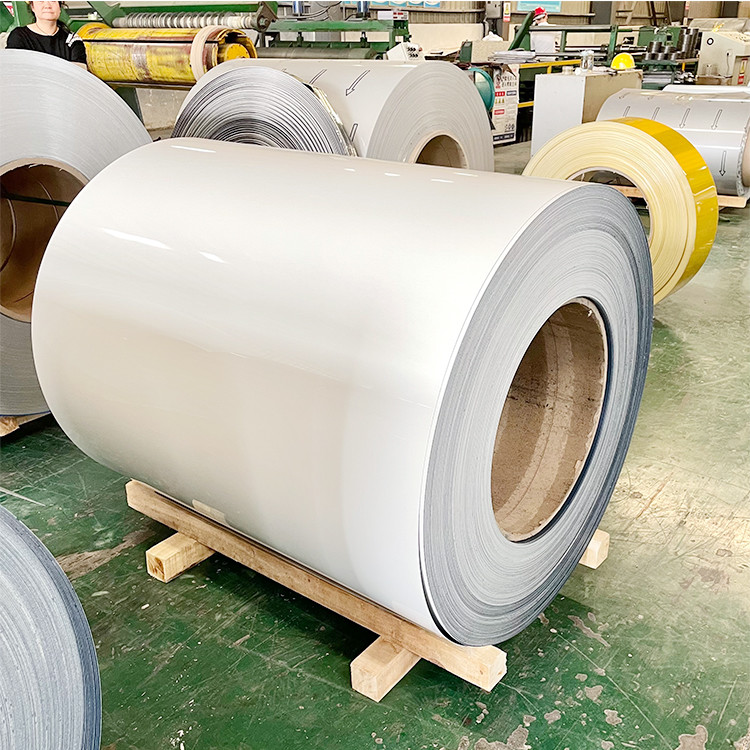

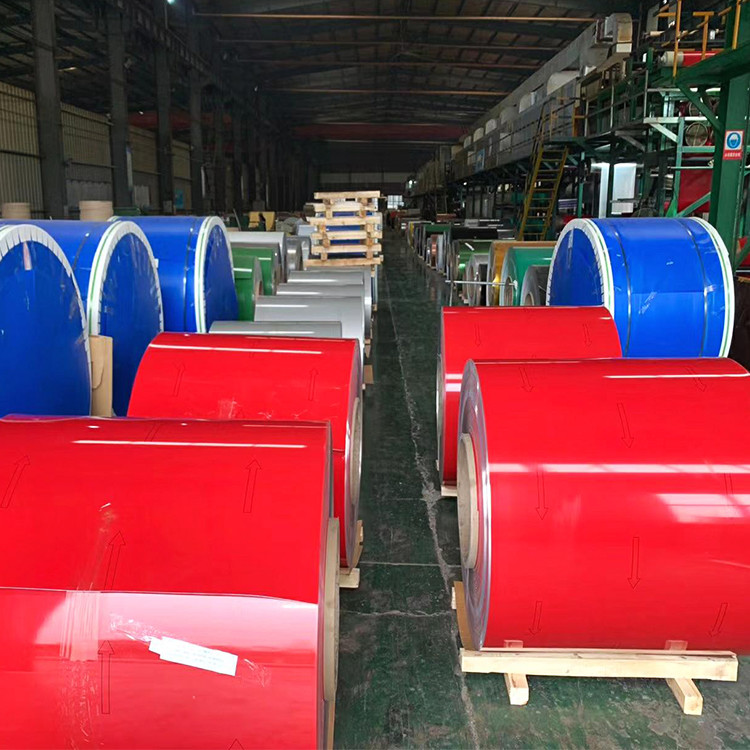

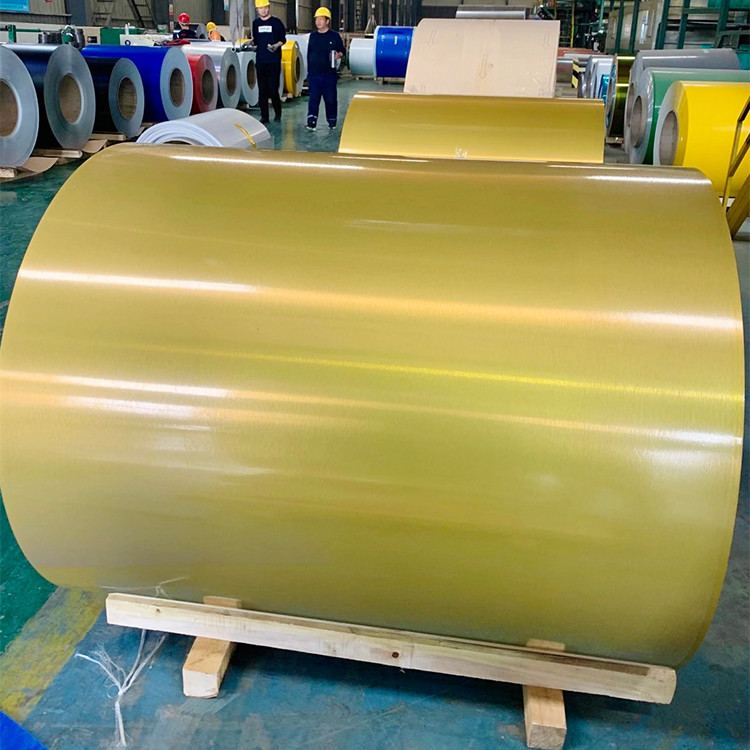

Product Gallery
