Prepainted Color Coated Aluminum Coil H112 1600mm Width
| Place of Origin | Henan China |
|---|---|
| Brand Name | Yongsheng |
| Certification | SGS |
| Model Number | Color Coated Aluminum Coil |
| Minimum Order Quantity | 3 tons |
| Packaging Details | wooden package |
| Delivery Time | 7-30 workdays |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, |
| Supply Ability | 5000tonspermonth |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Color Coated Aluminum Coil | Place Of Origin | China |
|---|---|---|---|
| Brand | Yongsheng Aluminum Industry Co., Ltd. | Alloy/Grade | 1000series-8000series |
| Temper | O - H112 , T3 - T8 , T351 - T851 | Thickness | 0.2mm - 6.0mm |
| Width | 10mm-1600mm | Length | As Per Your Requirements |
| Highlight | Prepainted Color Coated Aluminum Coil,H112 Color Coated Aluminum Coil,1600mm Width Prepainted Aluminum Coil |
||
Product Description

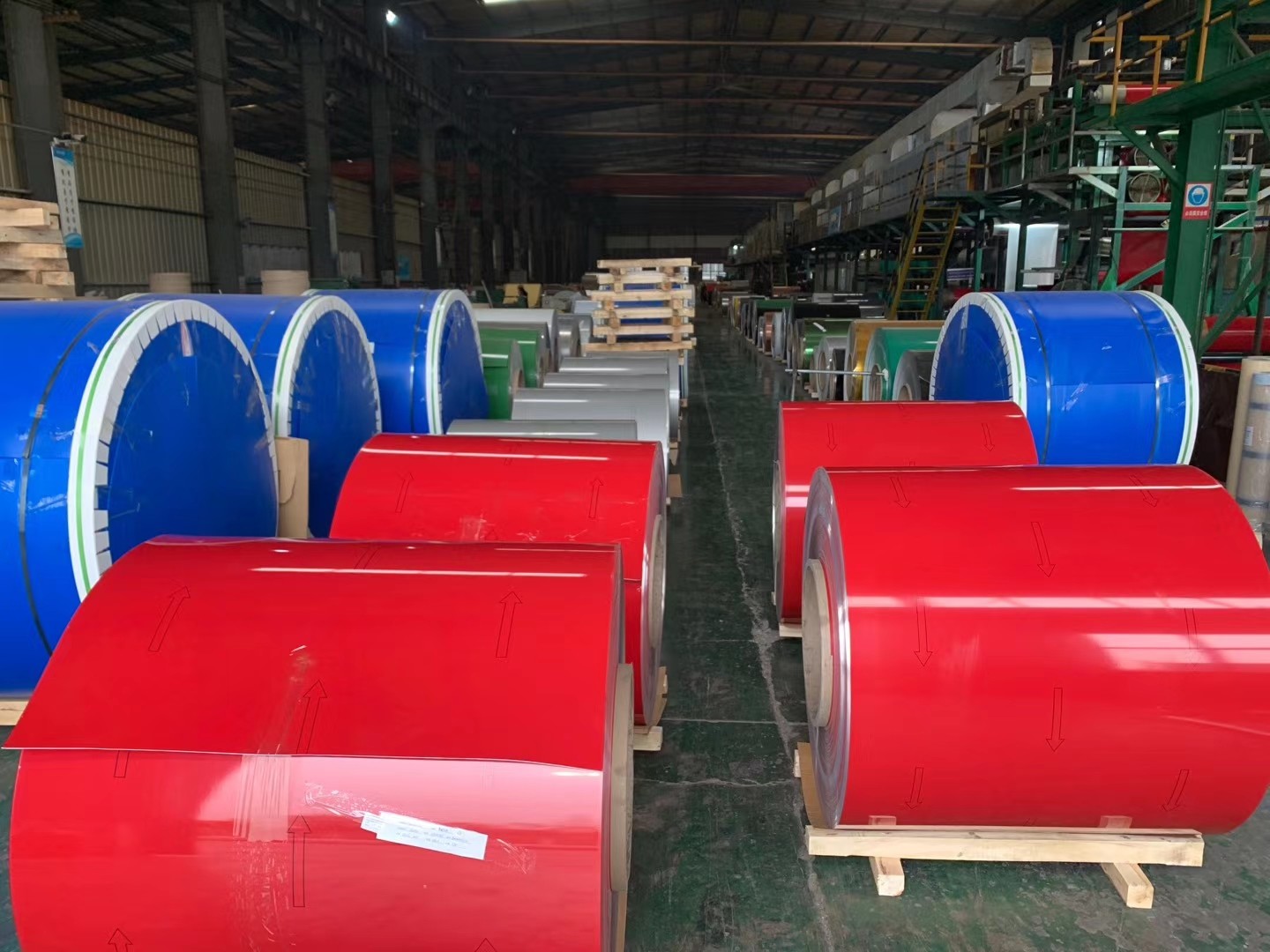

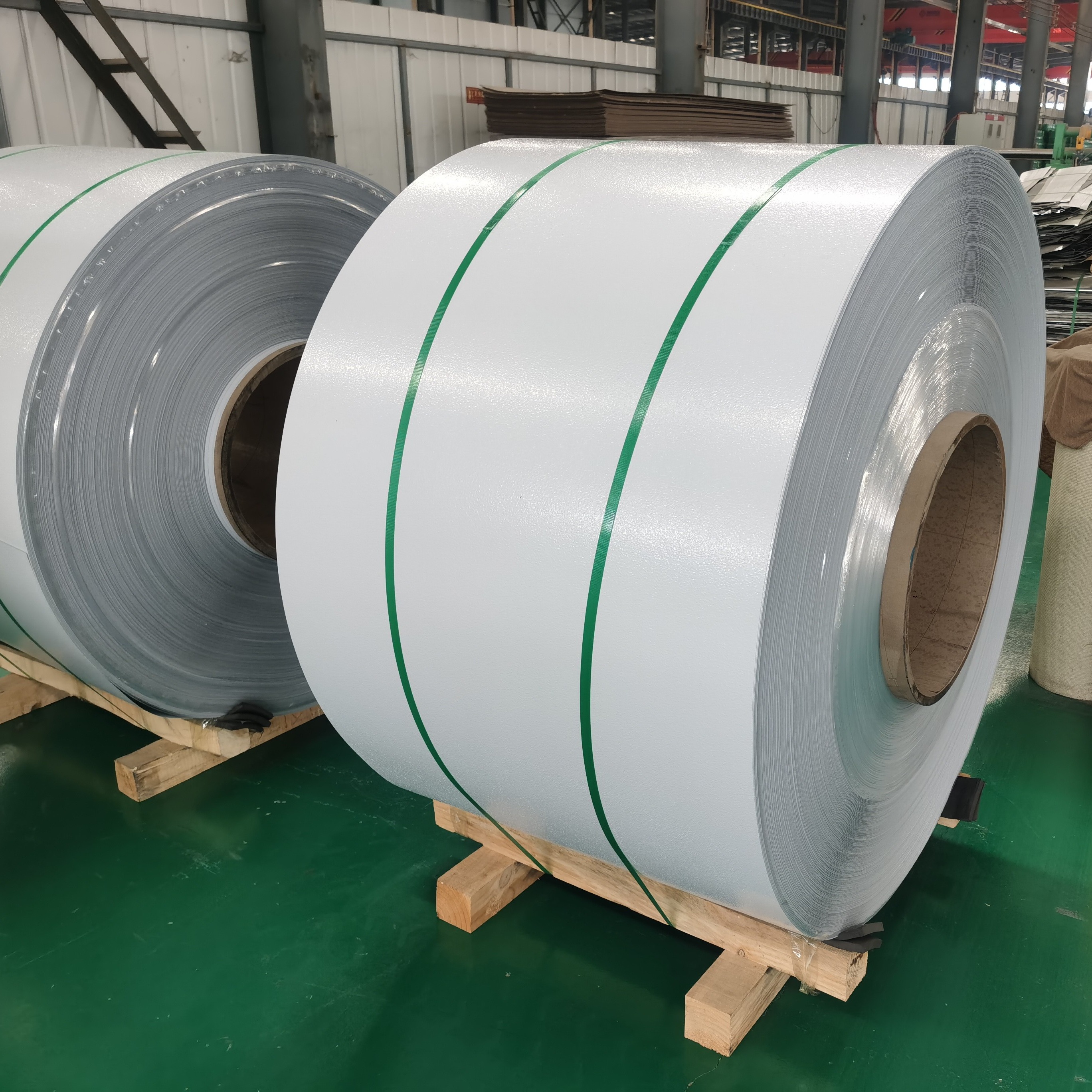

Prepainted Color Coated Aluminum Coil H112 1600mm Width
Color Coated Aluminum Description
PVDF Coating
PVDF coating consists of vinylidene fluoride homopolymer or copolymer with other fluorine-containing vinyl monomers. Its stable chemical structure provides exceptional durability, making PVDF coated aluminum coils highly resistant to wear, impact, fading, and UV radiation.
PE (Polyester) Coating
Polyester coating uses high molecular polymers with alkyd additives, creating a UV-resistant surface. Available in matte and glossy finishes, its compact molecular structure ensures smooth surfaces ideal for printing applications. With 8-10 year weather resistance warranty, it's perfect for interior decoration and signage.
Technical Specifications
| Alloy | State | Thickness(mm) | Tensile Strength(Mpa) | Yield Strength(Mpa) | Elongation(%) | Hardness(HV) |
|---|---|---|---|---|---|---|
| 1060 (1050) | 0 | > 0.2-0.5 | 60-100 | ≥ 15 | ≥ 20 | 20-30 |
| > 0.5-1.0 | 60-100 | ≥ 30 | ≥ 20 | |||
| > 1.0-4.0 | 60-100 | ≥ 35 | ≥ 20 | |||
| H22 | > 0.2-0.5 | 80-120 | ≥ 60 | ≥ 12 | 30-40 | |
| > 0.5-1.0 | 80-120 | ≥ 60 | ≥ 15 | 30-40 | ||
| > 1.0-4.0 | 80-120 | ≥ 60 | ≥ 18 | 30-40 | ||
| H24 | > 0.2-0.5 | 95-135 | ≥ 70 | ≥ 6 | 35-45 | |
| > 0.5-1.0 | 95-135 | ≥ 70 | ≥ 8 | 35-45 | ||
| > 1.0-4.0 | 95-135 | ≥ 70 | ≥ 10 | 35-45 | ||
| H26 | > 0.2-0.5 | 110-155 | ≥ 75 | ≥ 2 | 43-55 | |
| > 0.5-1.0 | 110-155 | ≥ 75 | ≥ 4 | 43-55 | ||
| > 1.0-4.0 | 110-155 | ≥ 75 | ≥ 6 | 43-55 | ||
| H18 | > 0.2-0.5 | ≥ 125 | ≥ 85 | ≥ 2 | 50-65 | |
| > 0.5-1.0 | ≥ 125 | ≥ 85 | ≥ 3 | 50-65 | ||
| > 1.0-4.0 | ≥ 125 | ≥ 85 | ≥ 4 | 50-65 |
Product Specifications
- Alloy / Grade: 1000 Series, 2000 Series, 3000 Series, 5000 Series, 6000 Series, 7000 Series, 8000 Series
- Temper: O - H112, T3 - T8, T351 - T851
- Thickness: 0.2mm - 6.0mm
- Width: 10mm-1600mm
- Length: As per your requirements
- Application: Building, Decoration, Construction, etc.
- Surface Treatment: PVDF Coating, PE Coating, etc.
- Color: As per your requirements
- Coil ID: As per your requirements
- Tolerances: As per your requirements
- Surface Treatment: Coating, Embossing
- MOQ: 3 ton
- Package: Wooden Pallets
- Delivery Time: 7-30 days after order confirmation
- Price Terms: FOB, CIF, CFR, CNF, etc.
- Loading Port: China Main Port
- Payment Terms: L/C, D/A, D/P, T/T, West Union, Money Gram, etc.
- Special Specifications available upon customer request
Product Line
Our Factory
Certification
Packing Conditions
Packing Details
- Standard 20MT capacity for 20-foot containers with cost-effective shipping rates
- Three-layer protective packaging: thick fiber, foam, plastic with sufficient drying agent
- Suitable for long-distance sea transportation
- Wooden or steel pallets available per customer request
- External wooden box packaging
- Container securing systems to prevent transportation damage
- 24 wooden boxes per 20ft container
Frequently Asked Questions
1. Who are we?
Henan Yongsheng Aluminum Co., Ltd., located in Gongyi City Industrial Cluster Area, Henan Province, specializes in aluminum products including Aluminum Strip, Color Aluminum Coil/Sheet, Aluminum Sheet, Aluminum Coil, Embossed Aluminum Coil/Sheet, and Mirror Aluminum Coil/Sheet. Our 100,000 square meter facility employs 476 staff with 20 casting lines, 2 color coating lines, 3 slitting lines, 4 shearing lines, and specialized equipment for embossed aluminum production. Annual output exceeds 200,000 tons with over 40% export volume.
2. How can we guarantee quality?
- Free samples available via TNT, DHL, FEDEX, EMS, UPS or direct delivery
- Pre-production samples before mass production
- Final inspection before shipment
- Products meet ASTM (American standard), GB/T (national standard), EN AW (European standard)
- Quality inspection certificates and ISO certification provided
3. Do you have products in stock?
We maintain 10,000 tons of inventory across various sizes. Contact us with your requirements for current stock details.
4. How long will it take to produce my order?
Standard production time is 7-25 working days, depending on order specifications.
5. How much will the shipping cost be?
Shipping costs vary based on order size, weight, and shipping method selected.
6. Can you help me find the shipping company?
Yes, we have long-term partnerships with reliable shipping companies and can provide competitive pricing with excellent service.
7. Will our goods be damaged during the long haul? How to avoid it?
No damage expected. We apply low-viscosity protective film to prevent scratches and stains. Our experienced team ensures professional packaging and container arrangement for safe long-distance transportation.
8. Why should you buy from us not from other suppliers?
- 20 years of aluminum industry experience
- Source manufacturer with advanced equipment and skilled team
- Competitive pricing, fast delivery, excellent quality, and superior service
- Professional technical solutions
Reliable quality, reasonable price and prompt delivery are insured to be offered to you.
TELL US WHAT YOU NEED, THEN WE WILL TRY OUR BEST.
