Pe Pvdf Aluminium Colour Coated Sheet For Making Roofing

  • Pe Pvdf Aluminium Colour Coated Sheet For Making Roofing
  • Pe Pvdf Aluminium Colour Coated Sheet For Making Roofing
  • Pe Pvdf Aluminium Colour Coated Sheet For Making Roofing
  • Pe Pvdf Aluminium Colour Coated Sheet For Making Roofing
  • Pe Pvdf Aluminium Colour Coated Sheet For Making Roofing
  • Pe Pvdf Aluminium Colour Coated Sheet For Making Roofing
  • Pe Pvdf Aluminium Colour Coated Sheet For Making Roofing
  • Pe Pvdf Aluminium Colour Coated Sheet For Making Roofing
Place of Origin Henan China
Brand Name Yongsheng
Certification SGS
Model Number Color Coated Aluminum Coil
Minimum Order Quantity 3 tons
Price USD2500tons
Packaging Details wooden package
Delivery Time 7-30 workdays
Payment Terms L/C, D/A, D/P, T/T, Western Union,
Supply Ability 5000tonspermonth

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Color Coated Aluminum Coil Place Of Origin China
Brand Yongsheng Aluminum Industry Co., Ltd. Alloy/Grade 1000series-8000series
Temper O - H112 , T3 - T8 , T351 - T851 Thickness 0.2mm - 6.0mm
Width 10mm-1600mm Length As Per Your Requirements
Highlight

Pvdf Aluminium Colour Coated Sheet

,

6.0mm Colored Coated Aluminum Sheet

,

T351 Aluminium Colour Coated Sheet
Leave a Message
Product Description
PE/PVDF Color Coated Aluminum Sheet for Roofing Applications
Coating Technologies
PVDF Coating
PVDF coating consists of vinylidene fluoride homopolymer or copolymer with other fluorine-containing vinyl monomers. This chemical structure provides exceptional stability, resulting in superior wear resistance, impact resistance, color retention, and UV protection for aluminum roofing materials.
PE (Polyester) Coating
Polyester coating utilizes high molecular polymers with alkyd additives, creating excellent UV-resistant protection. Available in matte and glossy finishes, this coating ensures smooth surface quality ideal for printing applications. With 8-10 year weather resistance warranty, it's particularly suitable for interior decoration and signage applications.
Technical Specifications
Material Properties
Alloy State Thickness (mm) Tensile Strength (Mpa) Yield Strength (Mpa) Elongation (%) Hardness (HV)
1060 (1050) 0 > 0.2-0.5 60-100 ≥ 15 ≥ 20 20-30
> 0.5-1.0 ≥ 30 - -
> 1.0-4.0 ≥ 35 - -
H22 > 0.2-0.5 80-120 ≥ 60 ≥ 12 30-40
> 0.5-1.0 - - ≥ 15 -
> 1.0-4.0 - - ≥ 18 -
H24 > 0.2-0.5 95-135 ≥ 70 ≥ 6 35-45
> 0.5-1.0 - - ≥ 8 -
> 1.0-4.0 - - ≥ 10 -
H26 > 0.2-0.5 110-155 ≥ 75 ≥ 2 43-55
> 0.5-1.0 - - ≥ 4 -
> 1.0-4.0 - - ≥ 6 -
H18 > 0.2-0.5 ≥ 125 ≥ 85 ≥ 2 50-65
> 0.5-1.0 - - ≥ 3 -
> 1.0-4.0 - - ≥ 4 -
Product Specifications
  • Alloy / Grade: 1000, 2000, 3000, 5000, 6000, 7000, 8000 Series
  • Temper: O - H112, T3 - T8, T351 - T851
  • Thickness: 0.2mm - 6.0mm
  • Width: 10mm-1600mm
  • Length: Custom requirements
  • Application: Building, Decoration, Construction
  • Surface Treatment: PVDF Coating, PE Coating
  • Color: Custom requirements
  • Coil ID: Custom requirements
  • MOQ: 3 tons
  • Package: Wooden Pallets
  • Delivery Time: 7-30 days after order confirmation
  • Price Terms: FOB, CIF, CFR, CNF, etc.
  • Loading Port: China Main Port
  • Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, etc.
  • Special specifications available upon request
Product Gallery

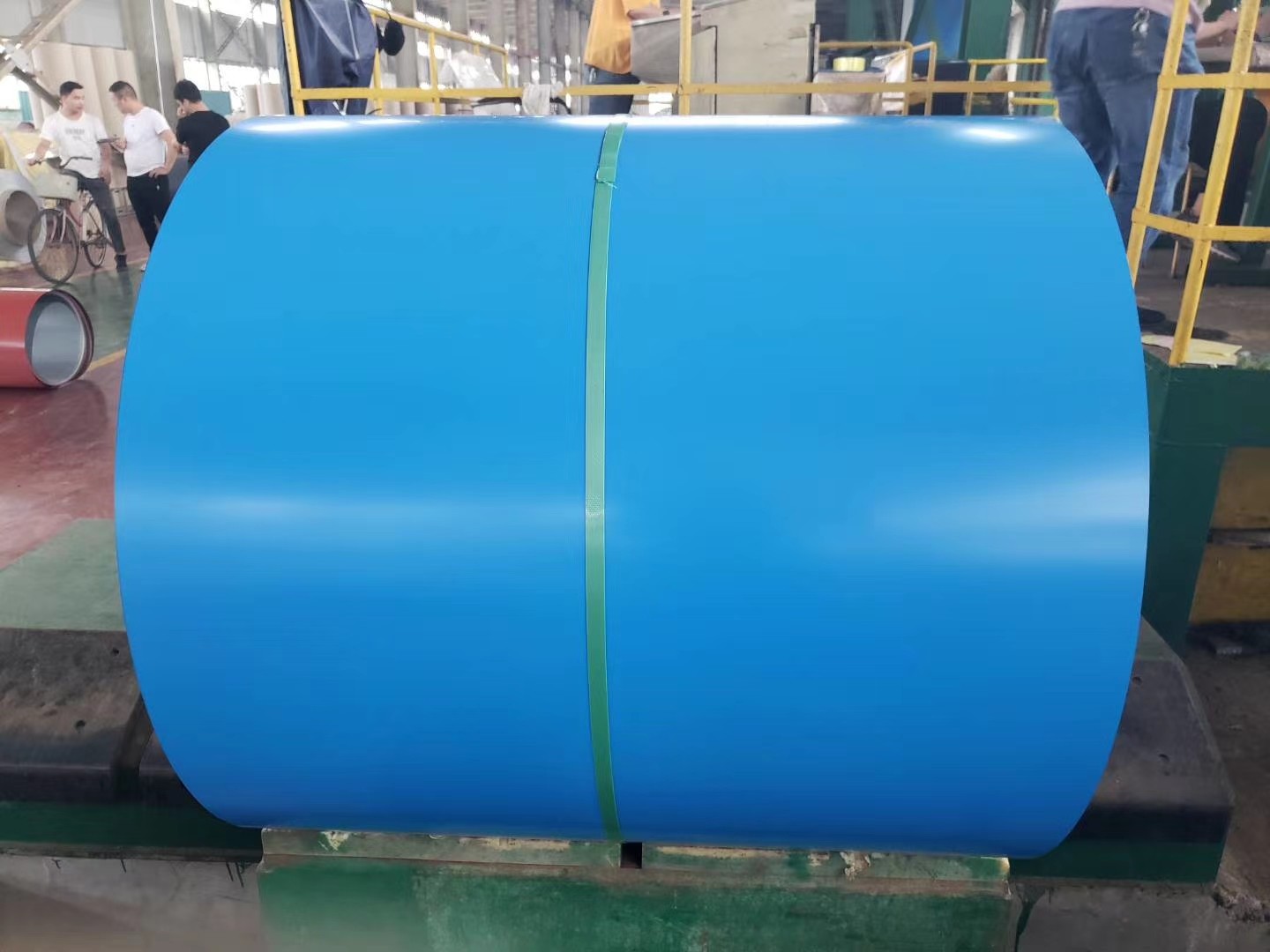

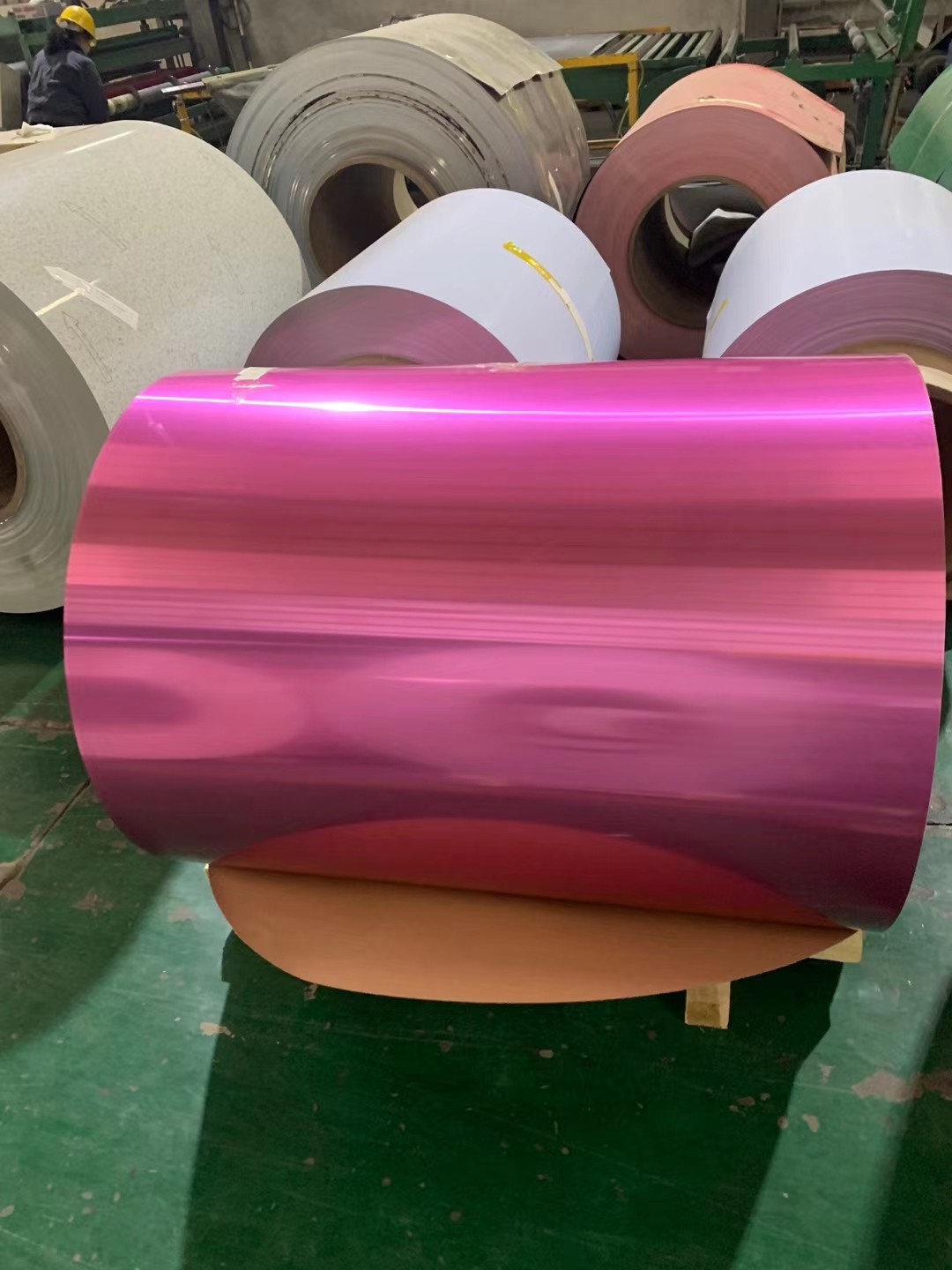

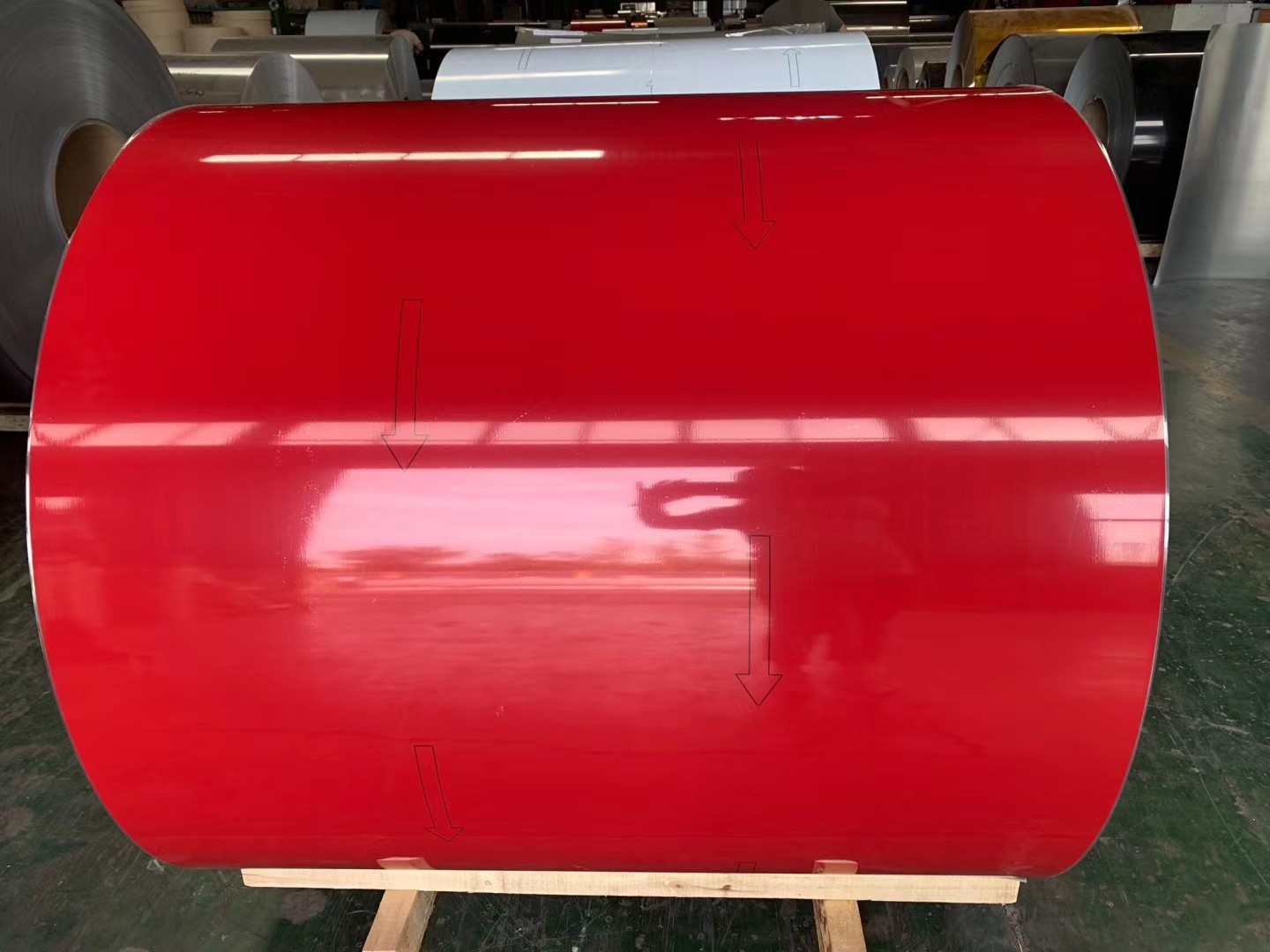

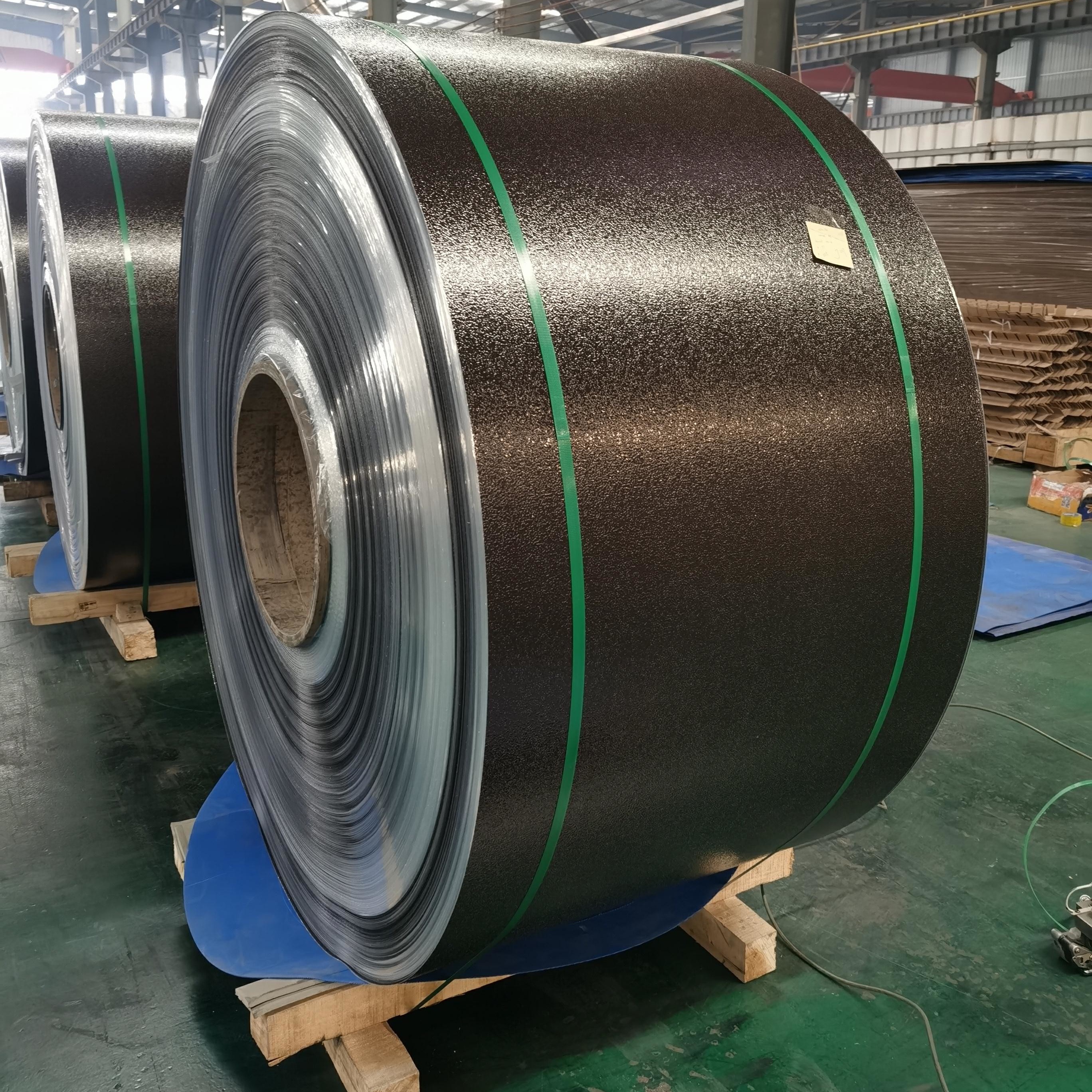

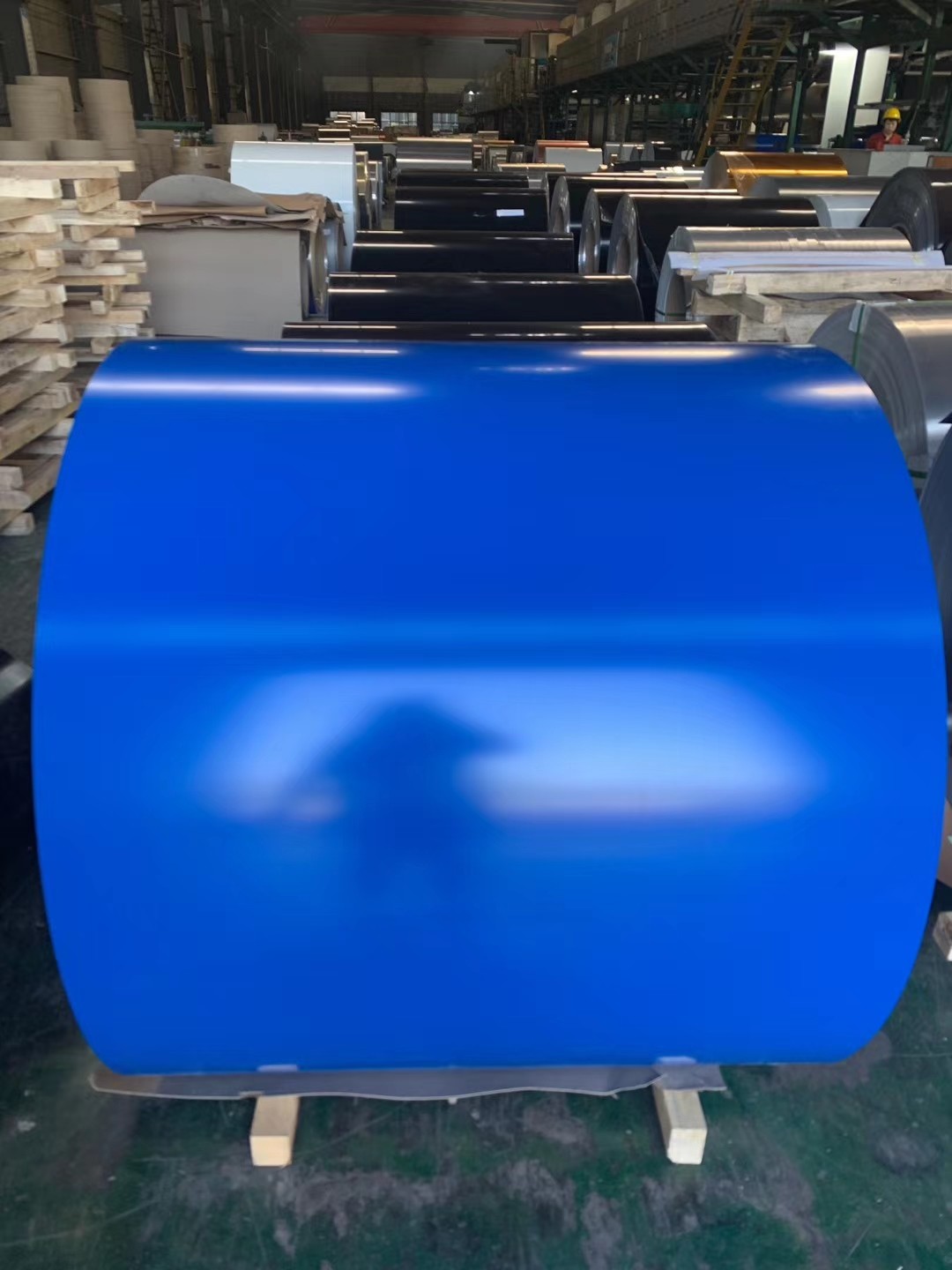

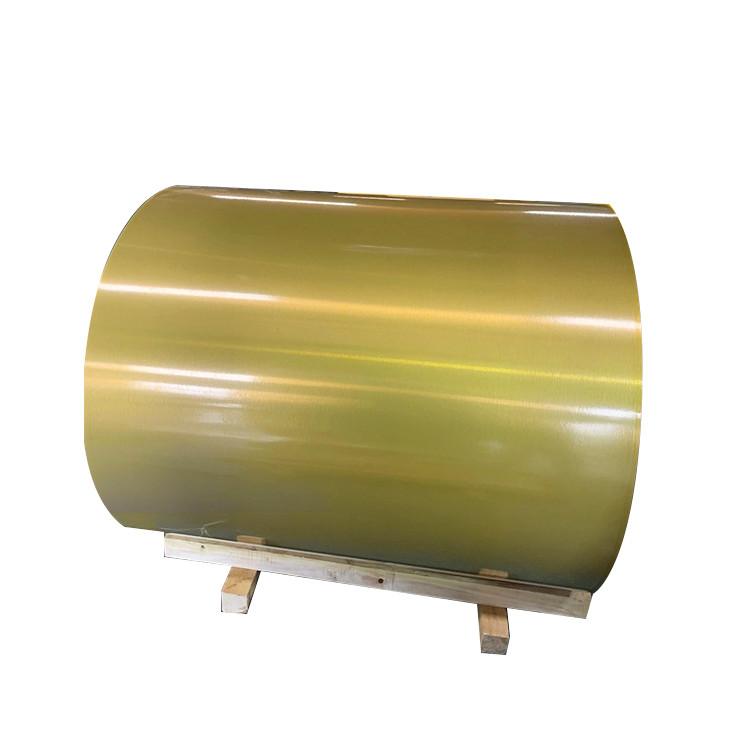

Pe Pvdf Aluminium Colour Coated Sheet For Making Roofing 0 Pe Pvdf Aluminium Colour Coated Sheet For Making Roofing 1 Pe Pvdf Aluminium Colour Coated Sheet For Making Roofing 2 Pe Pvdf Aluminium Colour Coated Sheet For Making Roofing 3 Pe Pvdf Aluminium Colour Coated Sheet For Making Roofing 4 Pe Pvdf Aluminium Colour Coated Sheet For Making Roofing 5
Packaging & Shipping

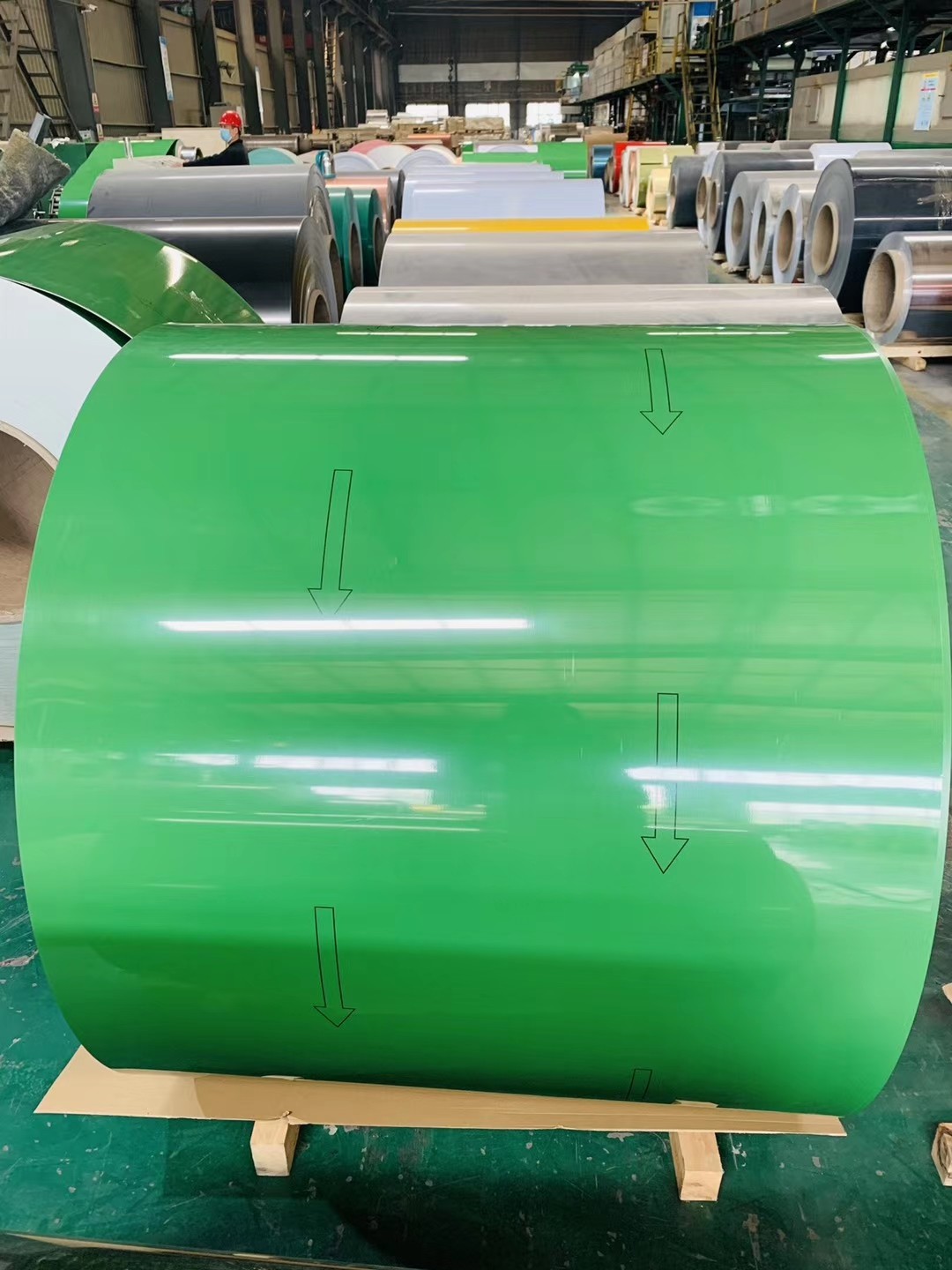

Pe Pvdf Aluminium Colour Coated Sheet For Making Roofing 6
Packaging Details
  • 20MT capacity in 20-foot container (recommended for cost efficiency)
  • Three-layer protective packaging: thick fiber, foam, plastic with drying agent
  • Wooden or steel pallets available per customer request
  • External wooden box packaging
  • Container securing to prevent transportation damage
  • 24 wooden boxes per 20ft container
Frequently Asked Questions
Company Overview
Henan Yongsheng Aluminum Co., Ltd. is located in Gongyi City Industrial Cluster Area, Henan Province. Our 100,000 square meter facility employs 476 professionals and specializes in aluminum strip, color aluminum, aluminum sheet, aluminum coil, pressed aluminum products, and embossed aluminum. With annual production exceeding 200,000 tons and export accounting for over 40%, we maintain 20 casting lines, 2 color coating lines, 3 slitting lines, 4 shearing lines, 32 punch presses, and 4 embossed aluminum production lines.
Quality Assurance
  • Sample provision available via TNT, DHL, FEDEX, EMS, UPS
  • Pre-production sampling before mass production
  • Final inspection prior to shipment
Order Processing
Standard production time: 7-15 working days. Shipping costs vary based on order size, weight, and shipping method. We maintain 10,000 tons of inventory across various sizes - contact us for stock availability.
Competitive Advantages
  • 20 years of aluminum industry expertise
  • Direct manufacturer with advanced equipment and skilled team
  • Competitive pricing, fast delivery, and superior quality
  • Professional technical solutions
Service Capabilities
  • Delivery Terms: FOB, CFR, CIF, EXW, CIP, CPT, DDP, DDU
  • Payment Currency: USD, EUR, HKD, GBP, CNY
  • Payment Methods: T/T, L/C, D/P, D/A, Credit Card, PayPal, Western Union, Cash, Escrow
  • Languages: English, Chinese, Spanish, Japanese, Portuguese, Korean
We guarantee reliable quality, reasonable pricing, and prompt delivery. Tell us your requirements and we will provide our best service.
