Customized 1500mm A3003 H24 Pre Painted Aluminum

  • Customized 1500mm A3003 H24 Pre Painted Aluminum
  • Customized 1500mm A3003 H24 Pre Painted Aluminum
  • Customized 1500mm A3003 H24 Pre Painted Aluminum
Place of Origin Henan China
Brand Name Yongsheng
Certification SGS
Model Number Painted Aluminum Coil
Minimum Order Quantity 3 tons
Price USD2500tons
Packaging Details wooden package
Delivery Time 7-30 workdays
Payment Terms L/C, D/A, D/P, T/T, Western Union,
Supply Ability 5000tonspermonth

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Painted Aluminum Coil Place Of Origin China
Brand Yongsheng Aluminum Industry Co., Ltd. Alloy/Grade 1000series-8000series
Temper O - H112 , T3 - T8 , T351 - T851 Thickness 0.2mm - 6.0mm
Width 10mm-1600mm Application Building, Decoration, Construction , Etc.
Surface Treatment PVDF Coating , PE Coating Etc. Color As Per Your Requirements
Highlight

A3003 H24 Pre Painted Aluminum

,

Customized 1500mm H24 Aluminum

,

Customized 1500mm aluminium coil coating
Leave a Message
Product Description
Customized 1500mm A3003 H24 Pre Painted Aluminum
Product Overview

YONGSHENG ALUMINUM specializes in producing high-quality color coated aluminum coil for both exterior and interior applications. Our pre-painted aluminum offers excellent acid resistance, long-lasting color retention, and environmentally friendly, fire-resistant properties suitable for modern decorative applications.

Key Applications
  • Commercial buildings, airports, express highway stations, subway systems
  • Stadiums, schools, hospitals, administration buildings
  • Tunnels, opera houses, hotels, and various architectural structures
  • Outdoor curtain walls, indoor ceilings, walls, halls, and corridors
  • Balconies, background walls, curtain boxes, columns, beams, and floating gardens
  • Elevators, stairs, and universal bedroom applications
Technical Specifications
Alloy State Thickness (mm) Tensile Strength (Mpa) Yield Strength (Mpa) Elongation (%) Hardness (HV)
1060 (1050)0> 0.2-0.560-100≥ 15≥ 2020-30
> 0.5-1.0≥ 30
> 1.0-4.0≥ 35
H22> 0.2-0.580-120≥ 60≥ 1230-40
> 0.5-1.0≥ 15
> 1.0-4.0≥ 18
H24> 0.2-0.595-135≥ 70≥ 635-45
> 0.5-1.0≥ 8
> 1.0-4.0≥ 10
H26> 0.2-0.5110-155≥ 75≥ 243-55
> 0.5-1.0≥ 4
> 1.0-4.0≥ 6
H18> 0.2-0.5≥ 125≥ 85≥ 250-65
> 0.5-1.0≥ 3
> 1.0-4.0≥ 4
1100 (1200)0> 0.2-0.575-105≥ 25≥ 1825-30
> 0.5-1.0≥ 30
> 1.0-4.0≥ 35
H22> 0.2-0.595-130≥ 75≥ 1230-40
> 0.5-1.0≥ 15
> 1.0-4.0≥ 18
H24> 0.2-0.5110-145≥ 95≥ 638-40
> 0.5-1.0≥ 8
> 1.0-4.0≥ 10
H26> 0.2-0.5130-165≥ 115≥ 245-60
> 0.5-1.0≥ 4
> 1.0-4.0≥ 6
H18> 0.2-0.5≥ 150≥ 130≥ 255-70
> 0.5-1.0≥ 3
> 1.0-4.0≥ 4
3003 (3A21)0> 0.2-0.595-140≥ 35≥ 1530-40
> 0.5-1.0≥ 30
> 1.0-4.0≥ 35
H22> 0.2-0.5120-160≥ 90≥ 1239-53
> 0.5-1.0≥ 15
> 1.0-4.0≥ 18
H24> 0.2-0.5145-195≥ 125≥ 642-59
> 0.5-1.0≥ 8
> 1.0-4.0≥ 10
H26> 0.2-0.5170-210≥ 150≥ 255-65
> 0.5-1.0≥ 4
> 1.0-4.0≥ 6
H18> 0.2-0.5≥ 190≥ 170≥ 260-85
> 0.5-1.0≥ 3
> 1.0-4.0≥ 4
Product Specifications
  • Alloy / Grade: 1000-8000 Series
  • Temper: O-H112, T3-T8, T351-T851
  • Thickness: 0.2mm - 6.0mm
  • Width: 10mm-1600mm
  • Length: Customized to requirements
  • Surface Treatment: PVDF Coating, PE Coating, Embossing
  • Colors: Customized to specifications
  • Minimum Order Quantity: 3 tons
  • Packaging: Wooden Pallets
  • Delivery Time: 7-30 days after order confirmation
Product Gallery

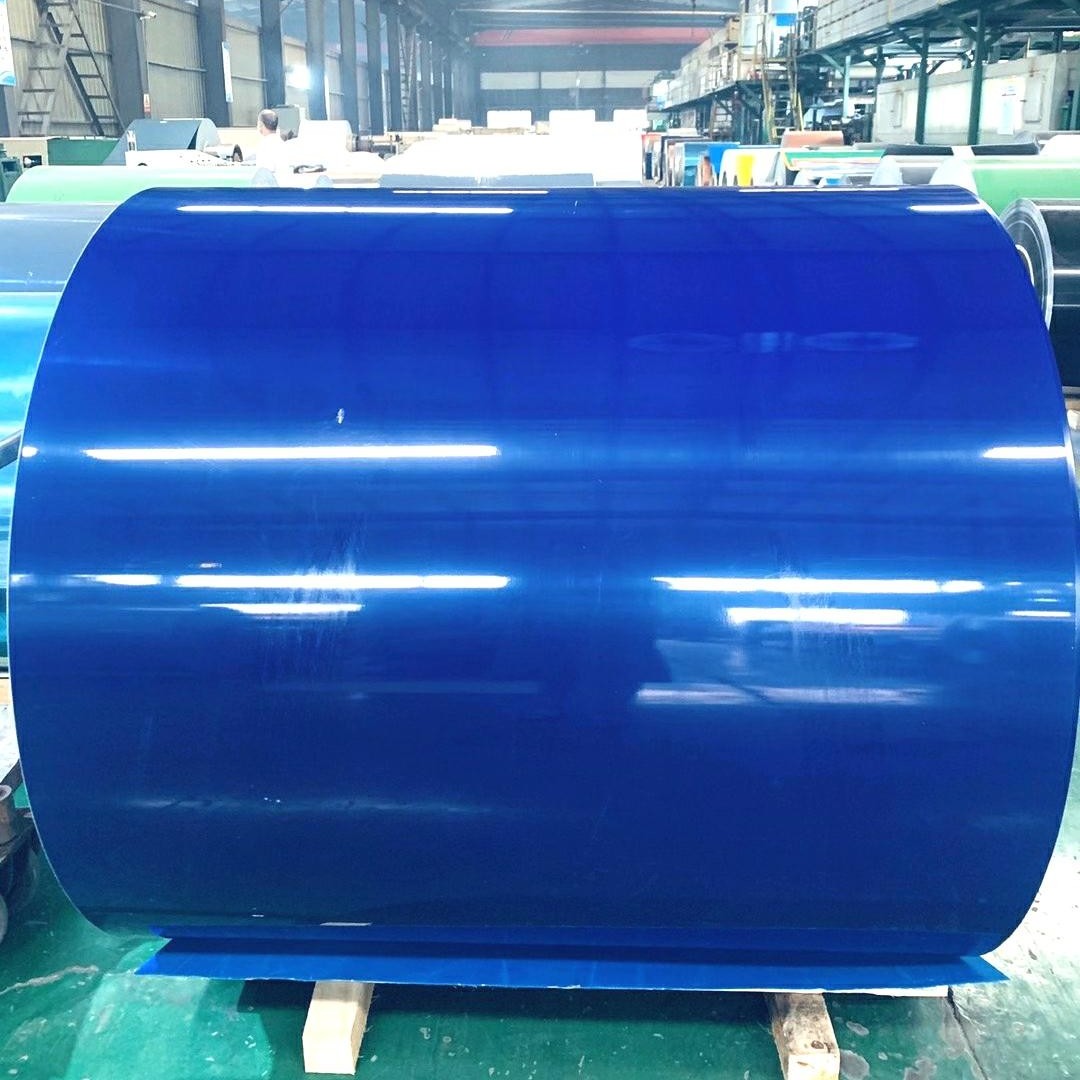

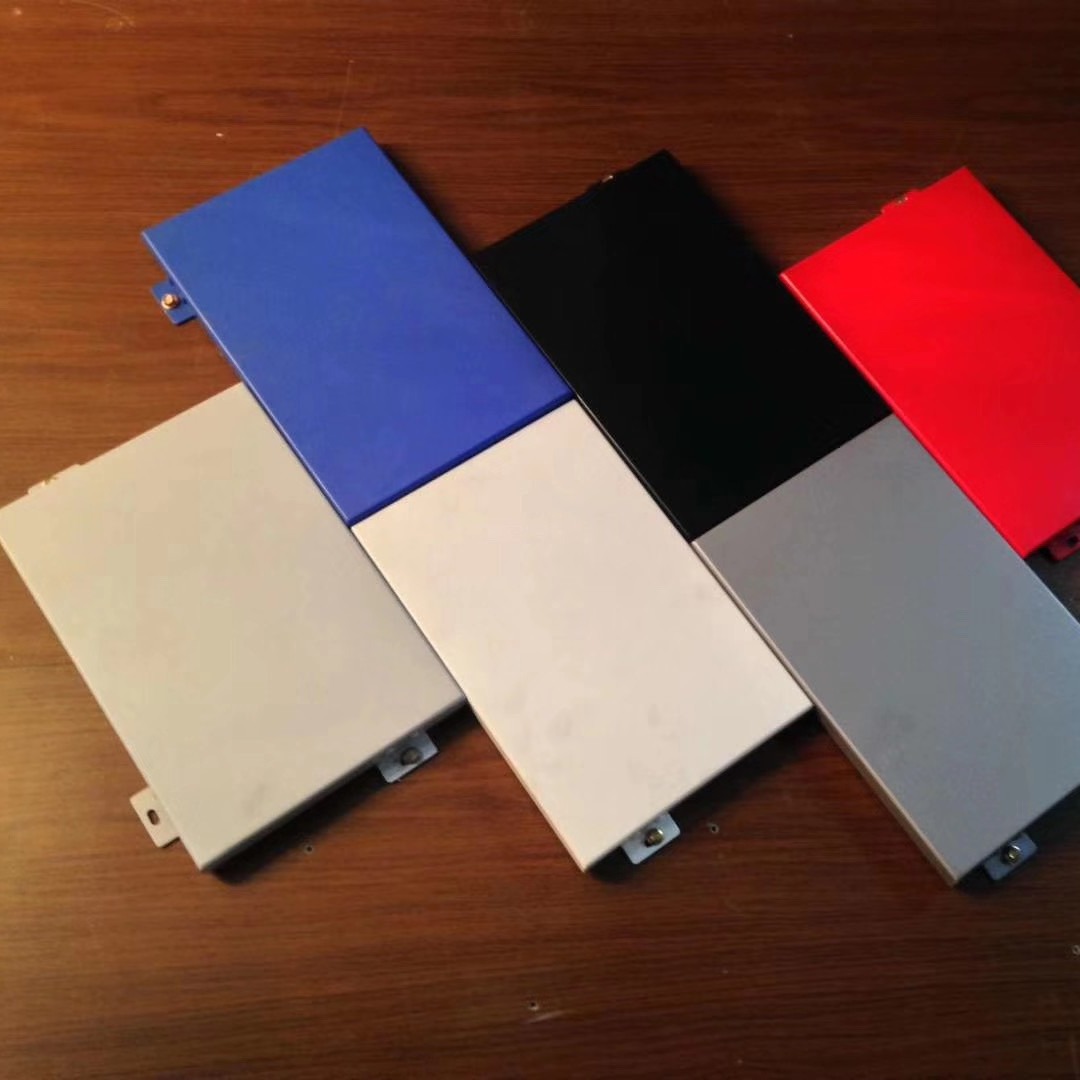

Customized 1500mm A3003 H24 Pre Painted Aluminum 0 Customized 1500mm A3003 H24 Pre Painted Aluminum 1
Packaging & Shipping

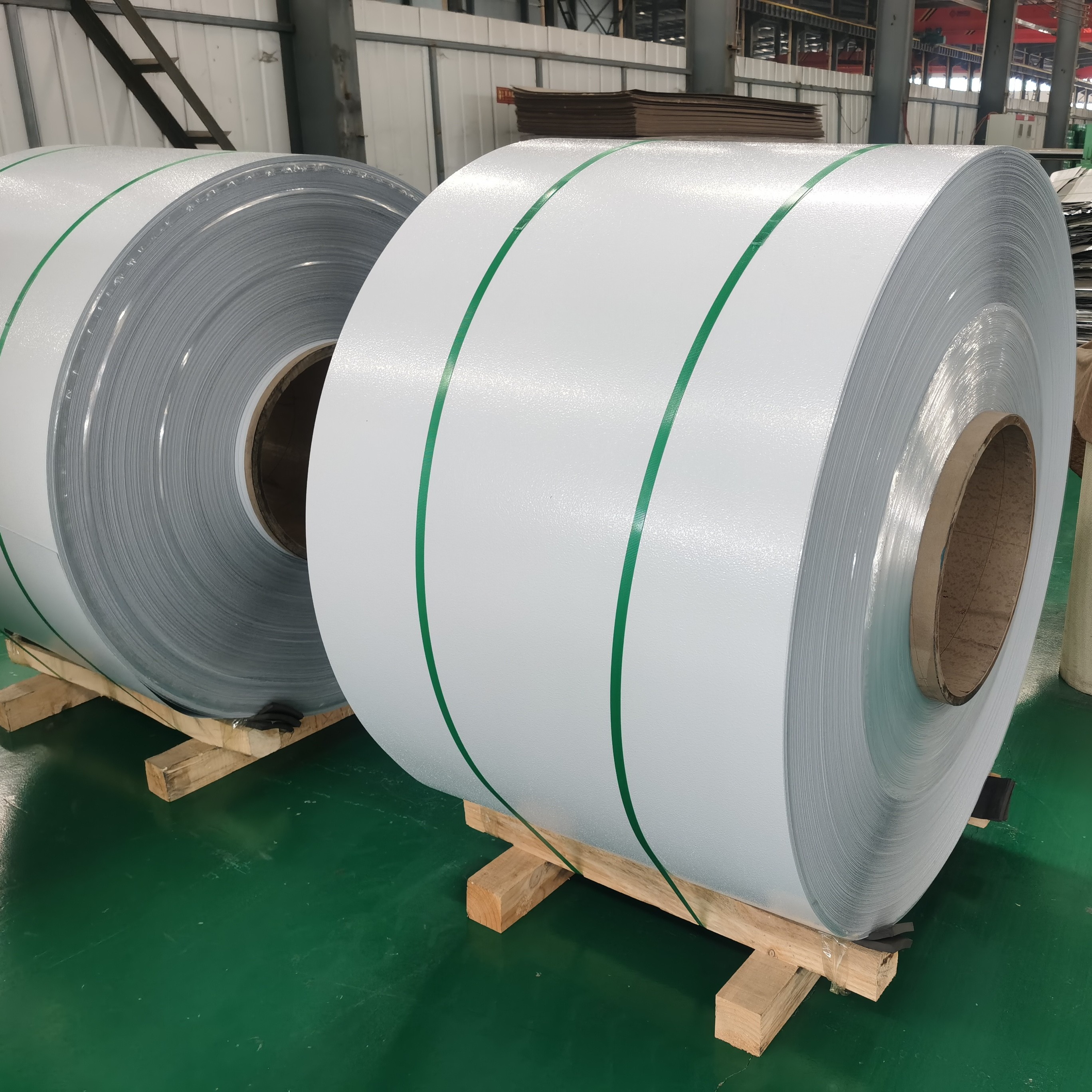

Customized 1500mm A3003 H24 Pre Painted Aluminum 2

Packing Details:

  • 20MT capacity in 20-foot container (recommended for cost efficiency)
  • Three-layer protective packaging with fiber, foam, and plastic
  • Wooden or steel pallets available per customer request
  • External wooden box packaging with proper fixation
  • 24 wooden boxes per 20ft container
Frequently Asked Questions

Who are we?

Henan Yongsheng Aluminum Co., Ltd. is a leading manufacturer located in Gongyi City Industrial Cluster Area, specializing in aluminum strip, color aluminum, aluminum sheet, coil, and embossed aluminum products.

Quality Assurance:

  • Sample provision available via international couriers
  • Pre-production sampling before mass production
  • Final inspection prior to shipment

Production Timeline:

Standard production time: 7-15 working days

Why choose us?

  • 20+ years of aluminum industry experience
  • Source manufacturer with leading equipment and skilled team
  • Competitive pricing, fast delivery, and superior quality
  • Professional technical solutions and support

Reliable quality, reasonable pricing, and prompt delivery guaranteed.

Tell us what you need, and we will do our best to meet your requirements.
