5.0mm Thin 5052 Aluminum Sheet For Door Weather Stripping
| Place of Origin | Henan China |
|---|---|
| Brand Name | Yongsheng |
| Certification | SGS |
| Model Number | ALuminum strip |
| Minimum Order Quantity | 1 tons |
| Price | USD2500tons |
| Packaging Details | wooden package |
| Delivery Time | 10-20workdays |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, |
| Supply Ability | 5000tonspermonth |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Aluminum Strip Coil | Place Of Origin | China |
|---|---|---|---|
| Brand | Yongsheng Aluminum Industry Co., Ltd. | Alloy/Grade | 1000series-8000series |
| Temper | O - H112 , T3 - T8 , T351 - T851 | Tolerances | As Per Your Requirements |
| Thickness | 0.13mm - 5.0mm | Width | 3mm-2600mm |
| Length | As Per Your Requirements | Coil ID | As Per Your Requirements |
| Highlight | 5.0mm Thin 5052 Aluminum Sheet,Thin 5.0mm 5052 Aluminum Sheet,Yongsheng Thin 5052 Aluminum sheet |
||
Product Description
5.0mm Thin 5052 Aluminum Sheet for Door Weather Stripping
This 5052 aluminum coil belongs to the Al-Mg series alloy and offers excellent corrosion resistance, superior weldability, good cold workability, and moderate strength. The 5052 alloy aluminum coil features high strength, particularly high fatigue strength, high plasticity, corrosion resistance, good weldability, and can be polished.
Product Overview
HENAN YONGSHENG Aluminum Co., Ltd. is a professional manufacturer specializing in aluminum foil sheet production including 1050/1060/1070, 3XXX, 5XXX, and 8XXX series. We are your trusted partner for high-quality aluminum strip manufacturing.
Aluminum Series Features
- 1 Series: Contains over 99.00% aluminum with good electrical conductivity, corrosion resistance, welding performance, and low strength. Ideal for conventional industrial applications.
- 2 Series: High hardness with approximately 3-5% copper content. Used primarily in aviation applications.
- 3 Series: Primarily composed of manganese (1.0-1.5%) with excellent rust prevention, corrosion resistance, weldability, and plasticity.
- 5 Series: Commonly used alloy aluminum plate with magnesium as the main element. Features low density, high tensile strength, high elongation, and good fatigue strength.
- 6 Series: Contains magnesium and silicon, suitable for applications requiring corrosion resistance and oxidation resistance.
- 7 Series: Aeronautical series aluminum-magnesium-zinc-copper alloy with good wear resistance and weldability.
Technical Specifications
| Alloy | State | Thickness (mm) | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation (%) | Hardness (HV) |
|---|---|---|---|---|---|---|
| 1060 (1050) | 0 | > 0.2-0.5 | 60-100 | ≥ 15 | ≥ 20 | 20-30 |
| 1060 (1050) | H22 | > 0.2-0.5 | 80-120 | ≥ 60 | ≥ 12 | 30-40 |
| 1100 (1200) | 0 | > 0.2-0.5 | 75-105 | ≥ 25 | ≥ 18 | 25-30 |
| 3003 (3A21) | 0 | > 0.2-0.5 | 95-140 | ≥ 35 | ≥ 15 | 30-40 |
| 5052 (5251) | 0 | > 0.2-0.5 | 170-215 | ≥ 65 | ≥ 14 | 50-70 |
Product Specifications
- Alloy/Grade: 1000, 2000, 3000, 5000, 6000, 7000, 8000 Series
- Temper: O-H112, T3-T8, T351-T851
- Thickness: 0.13mm - 6.5mm
- Width: 3mm - 2600mm
- Length: Customized to requirements
- Hardness: O/HO
- Conductivity: ≥61.5% IACS
- Elongation: > 23%
- Surface Treatment: Mill Finish, Coated, Powder Coated, Anodized, Polished Mirror, Embossed
- Delivery Time: 7-30 days after order confirmation
- MOQ: 1 ton
Applications
- Aluminum Strip for transformers
- High-frequency welding hollow aluminum strip
- Finned radiators
- Cable manufacturing
- Stamping applications
- Edge strips and various industrial uses
Quality Assurance
We provide samples for quality verification, conduct pre-production sampling before mass production, and perform final inspection before shipment to ensure product excellence.

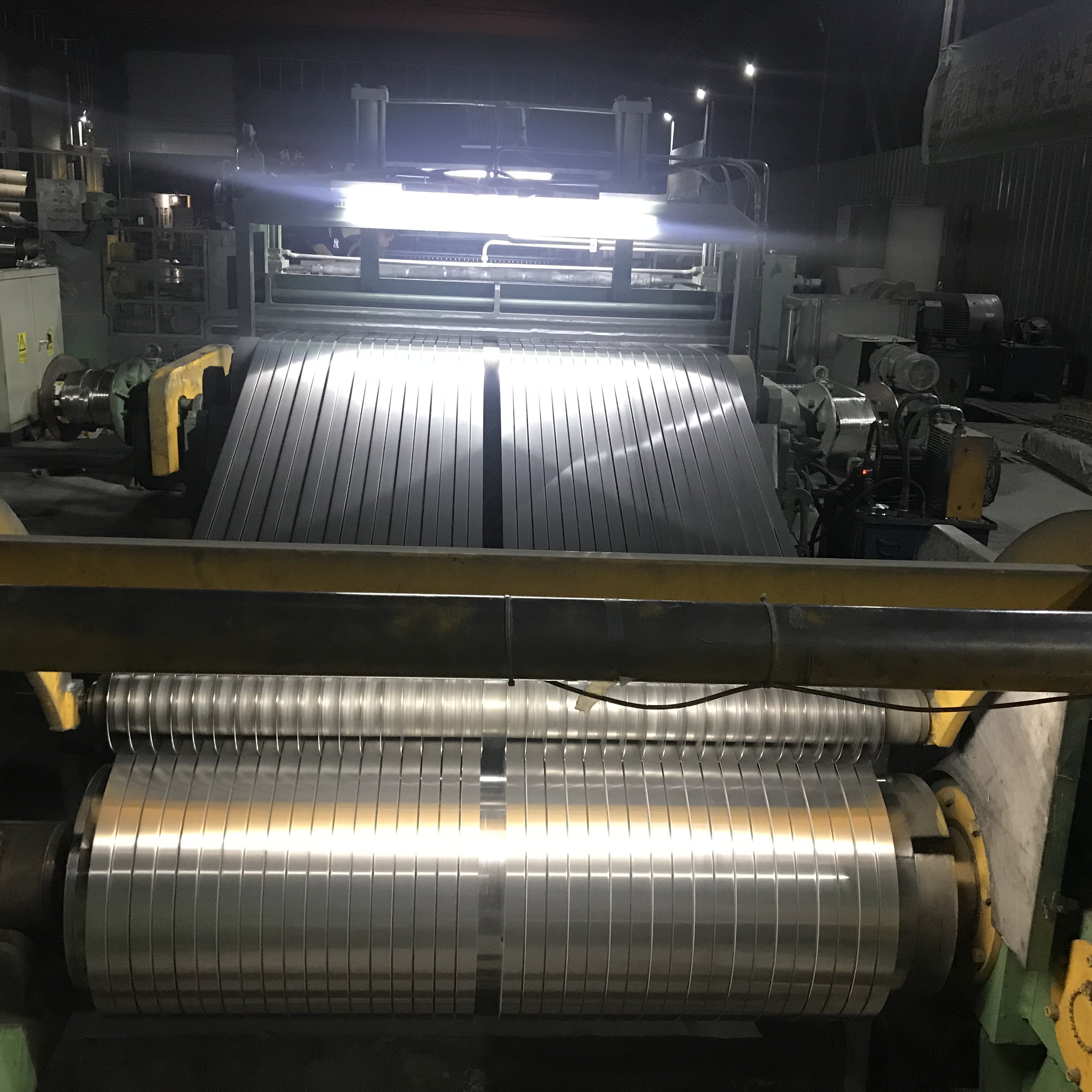

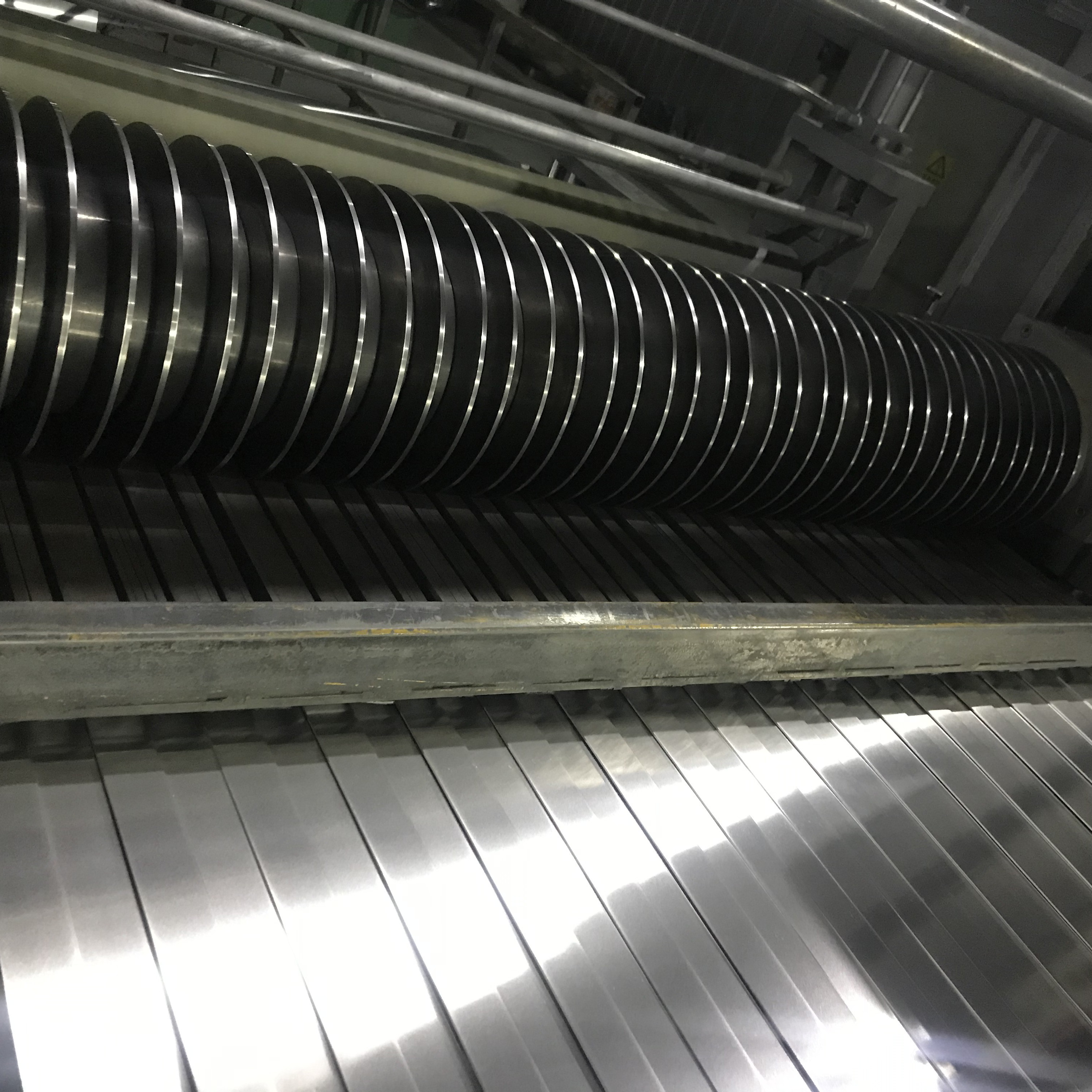

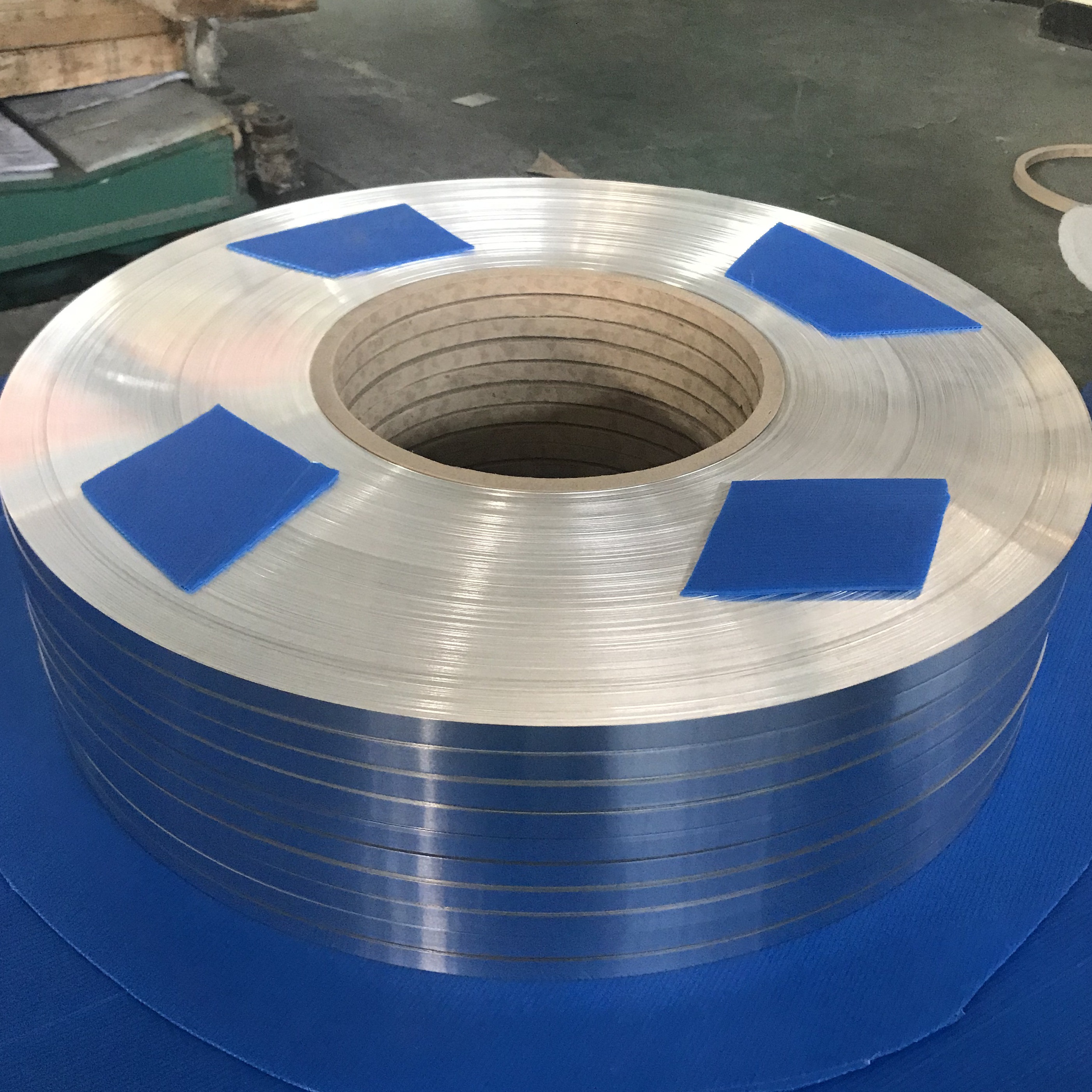

Product Images
Packaging Details
Our packaging includes 3-layer protection with thick fiber, foam, and plastic materials, suitable for long-distance sea transportation. We use wooden pallets and steel pallets according to customer requirements.
Reliable quality, reasonable price and prompt delivery are guaranteed.
For more information about our aluminum products or aluminum coil, please contact us. We will reply within 24 hours.
