SGS 15mm Width 0.4mm Thick 1050 Thin 1060 Alloy Aluminum

  • SGS 15mm Width 0.4mm Thick 1050 Thin 1060 Alloy Aluminum
  • SGS 15mm Width 0.4mm Thick 1050 Thin 1060 Alloy Aluminum
  • SGS 15mm Width 0.4mm Thick 1050 Thin 1060 Alloy Aluminum
Place of Origin Henan China
Brand Name Yongsheng
Certification SGS
Model Number ALuminum strip
Minimum Order Quantity 1 tons
Price USD2500tons
Packaging Details wooden package
Delivery Time 20workdays
Payment Terms L/C, D/A, D/P, T/T, Western Union,
Supply Ability 5000tonspermonth

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Aluminum Strip Coil Place Of Origin China
Brand Yongsheng Aluminum Industry Co., Ltd. Alloy/Grade 1000series-8000series
Temper O - H112 , T3 - T8 , T351 - T851 Tolerances As Per Your Requirements
Thickness 0.13mm - 5.0mm Width 3mm-2600mm
Length As Per Your Requirements Coil ID As Per Your Requirements
Highlight

0.4mm Thick 1060 Alloy Aluminum

,

SGS 1060 alloy aluminum

,

15mm Width 1060 aluminum
Leave a Message
Product Description
SGS 15mm Width 0.4mm Thick 1050 Thin 1060 Alloy Aluminum
Aluminum Strip Overview
1050 aluminum sheet is a commercially pure wrought alloy with 99.5% aluminum content. With 0.4% iron addition, it offers high electrical conductivity. 1060 aluminum sheet is similar to 1050 but contains more than 0.1% aluminum by weight. Both alloys meet ISO standards and cover different ASTM specifications.
1060 aluminum sheet contains 0.05% copper, providing 55% conductivity. This relatively low-strength, essentially pure aluminum alloy is available in various tempers including O (annealed), H12, H14, H16, and H18. Other commercial pure wrought aluminum sheets available include 1050, 1070, 1100 and more.
1060 aluminum coil features a flat surface, high cleanliness, excellent polymer welding compatibility, and product elongation. With adequate tensile strength, it meets conventional processing requirements (punching, drawing) with high formability, making it ideal for soft battery connections, aluminum-plastic panels, lighting fixtures, signage, and other applications.
Aluminum Series Characteristics
  • 1000 Series: Contains the highest aluminum content (over 99.00%), offering excellent electrical conductivity, corrosion resistance, and welding performance with moderate strength for conventional industrial use.
  • 2000 Series: High hardness with 3-5% copper content, enhanced by manganese, magnesium, lead and bismuth for improved machinability, primarily used in aviation applications.
  • 3000 Series: Primarily composed of manganese (1.0-1.5%), providing superior rust prevention, excellent corrosion resistance, weldability, and plasticity.
  • 5000 Series: Main element is magnesium, featuring low density, high tensile strength, excellent elongation, and good fatigue strength, though not heat-treatable for strengthening.
  • 6000 Series: Contains magnesium and silicon, suitable for applications requiring corrosion resistance and oxidation protection.
  • 7000 Series: Aerospace-grade aluminum-magnesium-zinc-copper alloy, heat-treatable super hard aluminum with good wear resistance and weldability, though corrosion resistance is moderate.
Mechanical Properties
Alloy State Thickness(mm) Tensile Strength(Mpa) Yield Strength(Mpa) Elongation(%) Hardness(HV)
1060 (1050) 0 > 0.2-0.5 60-100 ≥ 15 ≥ 20 20-30
> 0.5-1.0 60-100 ≥ 15 ≥ 30 20-30
> 1.0-4.0 60-100 ≥ 15 ≥ 35 20-30
H22 > 0.2-0.5 80-120 ≥ 60 ≥ 12 30-40
> 0.5-1.0 80-120 ≥ 60 ≥ 15 30-40
Technical Specifications
  • Alloy/Grade: 1000, 2000, 3000, 5000, 6000, 7000, 8000 Series
  • Temper: O-H112, T3-T8, T351-T851
  • Thickness: 0.13mm - 6.5mm
  • Width: 3mm - 2600mm
  • Length: Custom requirements
  • Hardness: O/HO
  • Conductivity (% IACS): ≥61.5
  • Elongation (%): > 23
  • Surface Treatment: Mill Finish, Coated, Powder Coated, Anodized, Polished Mirror, Embossed
  • Delivery Time: 7-30 days after order confirmation
  • MOQ: 1 ton
Applications
  • Aluminum Strip for transformers
  • High-frequency welding hollow aluminum strip
  • Finned radiator applications
  • Cable manufacturing
  • Stamping operations
  • Edge strip applications
Aluminum Alloy Categories
  • Pure aluminum strip
  • Transformer aluminum strip
  • Super hard aluminum strip
  • All soft aluminum strip
  • Semi hard aluminum strip
  • Rust proof aluminum strip
Product Images

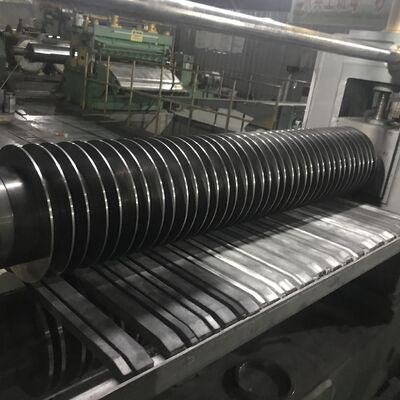

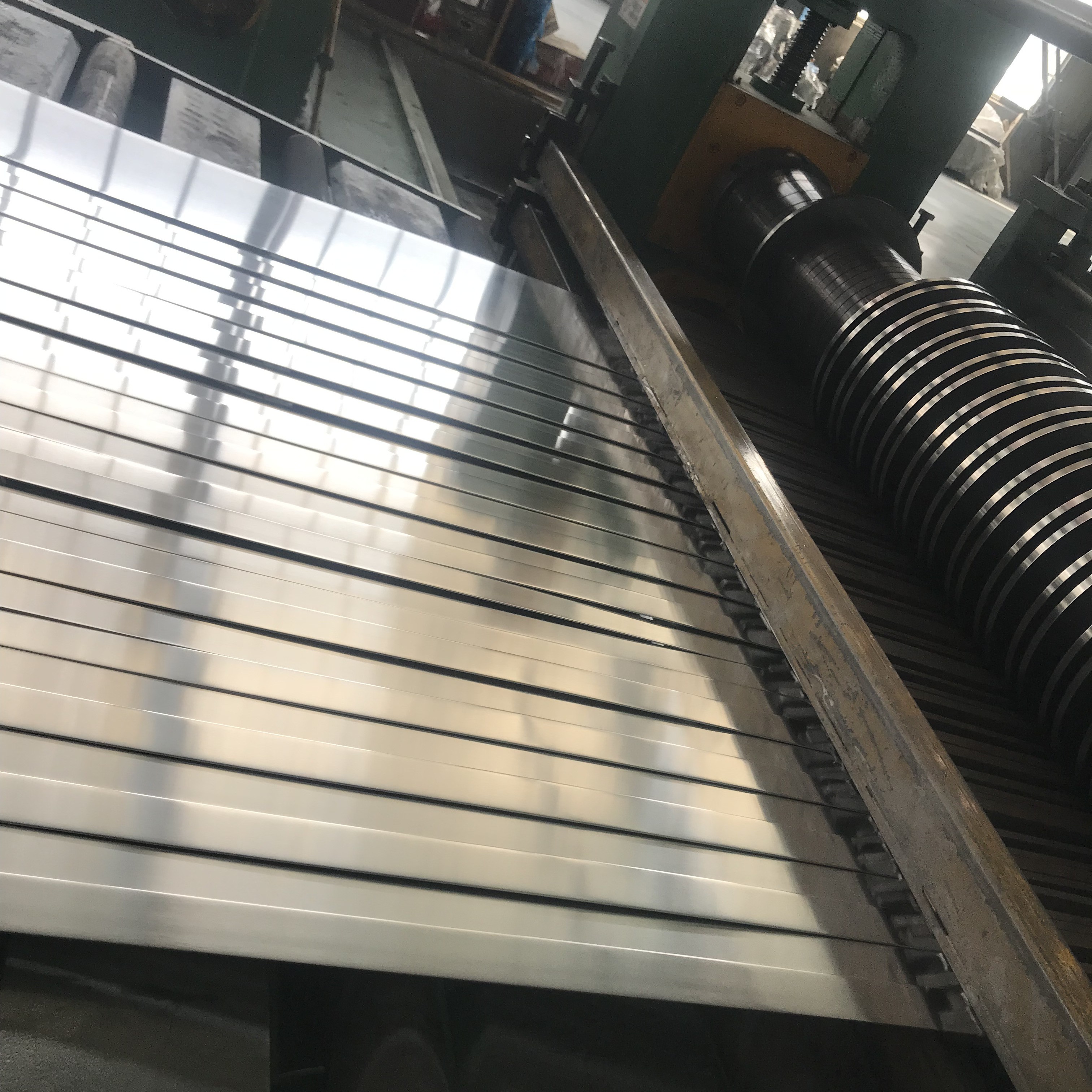

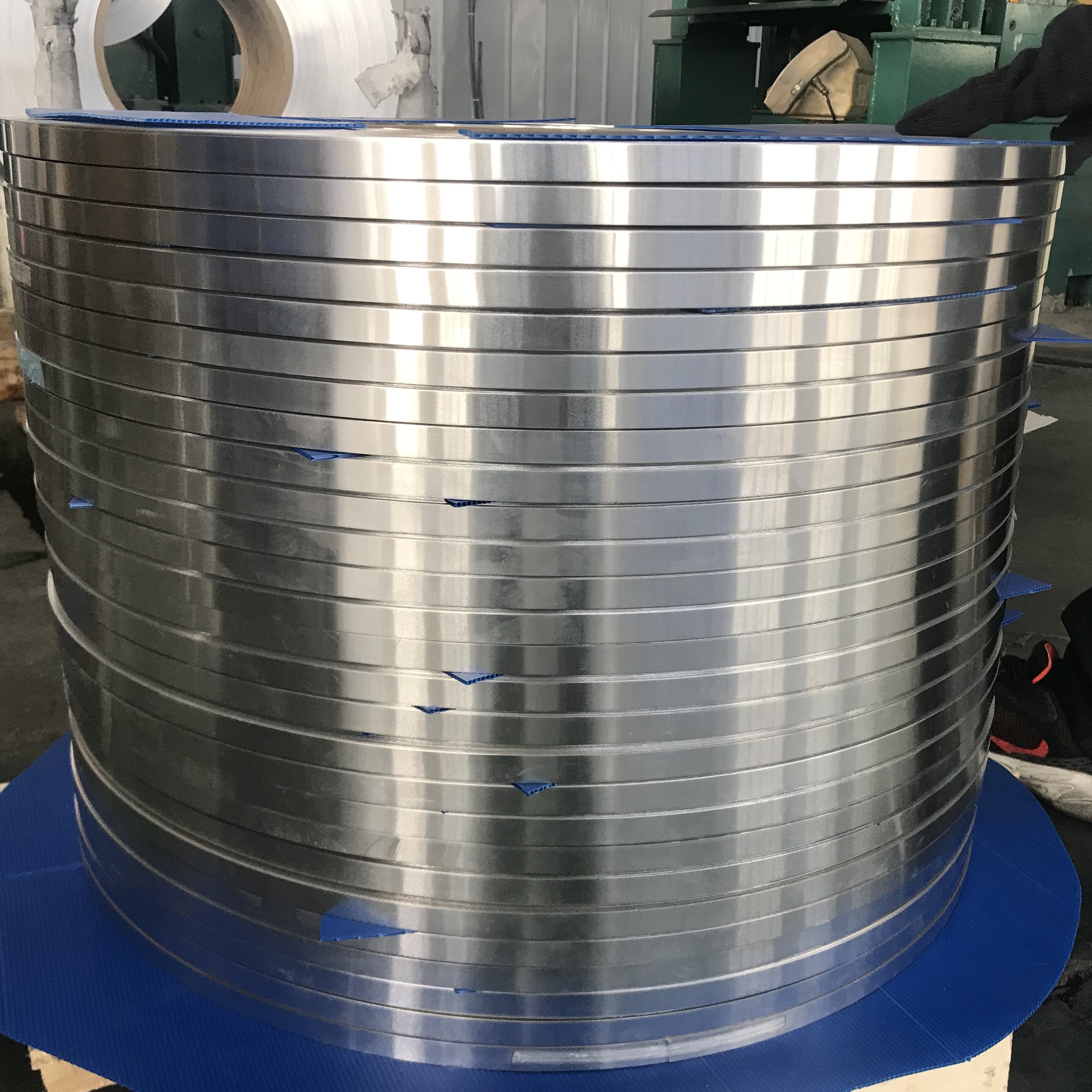

SGS 15mm Width 0.4mm Thick 1050 Thin 1060 Alloy Aluminum 0 SGS 15mm Width 0.4mm Thick 1050 Thin 1060 Alloy Aluminum 1 SGS 15mm Width 0.4mm Thick 1050 Thin 1060 Alloy Aluminum 2
Frequently Asked Questions
Who are we? Henan Yongsheng Aluminum Co., Ltd. is located in Gongyi City Industrial Cluster Area, Henan Province. Our 100,000 square meter facility employs 476 staff and operates 20 casting lines, 2 color coating lines, and multiple processing equipment with annual output exceeding 200,000 tons.
Quality Guarantee: We provide samples, pre-production samples, and final inspection before shipment to ensure product quality.
Production Time: 7-15 working days for standard orders.
Shipping: Costs depend on order size, weight, and shipping method.
Inventory: 10,000 tons of various sizes available.
Packing & Shipping
SGS 15mm Width 0.4mm Thick 1050 Thin 1060 Alloy Aluminum 3
Standard packing includes 3-layer protection with fiber, foam, and plastic, plus drying agent for long-distance sea transport. We use wooden/steel pallets and secure containers to prevent damage during transit.
Reliable quality, reasonable pricing, and prompt delivery are guaranteed.
Tell us what you need, and we will try our best to meet your requirements.
