0.2mm H24 1060 Aluminium Metal Strips For Construction Industry
| Place of Origin | Henan China |
|---|---|
| Brand Name | Yongsheng |
| Certification | SGS |
| Model Number | ALuminum strip |
| Minimum Order Quantity | 1 tons |
| Price | USD2500tons |
| Packaging Details | wooden package |
| Delivery Time | 20workdays |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, |
| Supply Ability | 5000tonspermonth |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Aluminum Strip Coil | Place Of Origin | China |
|---|---|---|---|
| Brand Name | Yongsheng Aluminum Industry Co., Ltd. | Alloy/Grade | 1000series-8000series |
| Temper | O-H112，T3-T8 | Hardness | ≥20(HV) |
| Shape | Alu Strip | Color | Silver |
| Highlight | H24 1060 aluminium metal strips,0.2mm H24 1060 aluminium metal strips,70 Mpa aluminum fascia coil |
||
Product Description
0.2mm H24 1060 Aluminium Metal Strips for Construction Industry
Product Name: 0.2mm H24 1060 Aluminium Metal Strips for Construction Industry
Aluminum Strip Overview

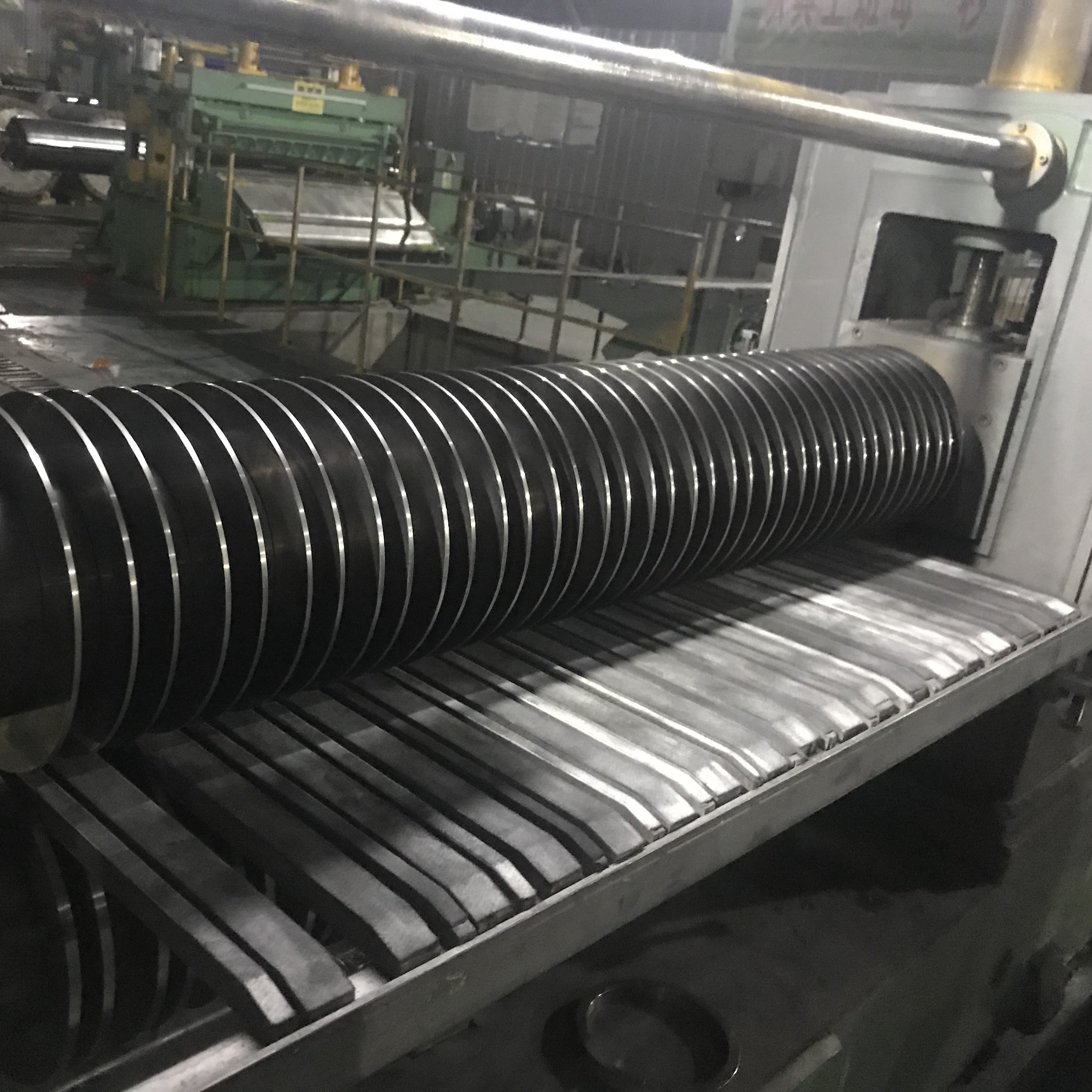

Aluminum strip refers to aluminum coil cut to required widths using slitting equipment. This versatile material is categorized into various types including aluminum strip, plate, thick plate, and extrusion tubes. Extrusion tubes are primarily used in aluminum can manufacturing, while thin plates serve various lighting components. Alloy aluminum offers excellent formability, corrosion resistance, fatigue strength, and medium static strength, making it ideal for aircraft fuel tanks, oil pipes, transportation vehicles, ships, sheet metal parts, and instrumentation.
1060 aluminum strip features a smooth surface, high cleanliness, excellent polymer welding compatibility, and optimal elongation and tensile strength for conventional processing operations such as punching and drawing. This makes it widely applicable in soft battery wiring, aluminum composite panels, lighting fixtures, signage, and other industrial applications.
Aluminum Series Characteristics
1 Series Features
Contains over 99.00% aluminum with excellent electrical conductivity, corrosion resistance, and welding performance. Offers lower strength and is commonly used in conventional industrial applications.
2 Series Features
High hardness with approximately 3-5% copper content. Additional elements like manganese, magnesium, lead, and bismuth enhance machinability. Primarily used in aviation applications.
3 Series Features
Manganese-based composition (1.0-1.5%) providing superior rust prevention. Features excellent corrosion resistance, weldability, and plasticity for demanding industrial applications.
5 Series Features
Magnesium-based alloy series offering low density, high tensile strength, excellent elongation, and good fatigue strength. Cannot be heat-treated and is widely used in conventional industries.
6 Series Features
Contains magnesium and silicon, making it suitable for applications requiring superior corrosion resistance and oxidation performance.
7 Series Features
Aeronautical-grade aluminum-magnesium-zinc-copper alloy. Heat-treatable super hard aluminum with excellent wear resistance and weldability, though corrosion resistance is limited.
Technical Specifications
| Alloy | State | Thickness (mm) | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness (HV) |
|---|---|---|---|---|---|---|
| 1060 (1050) | 0 | > 0.2-0.5 | 60-100 | ≥ 15 | ≥ 20 | 20-30 |
| > 0.5-1.0 | ≥ 30 | ≥ 15 | ≥ 35 | 30-40 | ||
| > 1.0-4.0 | ≥ 35 | ≥ 18 | ≥ 35 | 35-45 | ||
| H22 | > 0.2-0.5 | 80-120 | ≥ 60 | ≥ 12 | 30-40 | |
| > 0.5-1.0 | ≥ 15 | ≥ 18 | 35-45 | 43-55 | ||
| > 1.0-4.0 | ≥ 18 | ≥ 10 | 50-65 | 50-65 |
Technical Data
- Alloy/Grade: 1000, 2000, 3000, 5000, 6000, 7000, 8000 Series
- Temper: O - H112, T3 - T8, T351 - T851
- Thickness: 0.13mm - 6.5mm
- Width: 3mm - 2600mm
- Length: Custom requirements
- Feature: Eco-friendly
- Package: Wooden Pallets
- Type: High Purity Aluminium Strip
- Color: Silver
- Shape: Alu Strip
- Hardness: O/HO
- Conductivity (% IACS): ≥61.5
- Elongation (%): > 23
- Surface Treatment: Mill Finish, Coated, Powder Coated, Anodized, Polished Mirror, Embossed
- Delivery Time: 7-30 days after order confirmation
- MOQ: 1 ton
Applications
- Aluminum Strip for transformer (aluminum foil for transformer)
- Aluminum Strip for high-frequency welding hollow aluminum strip
- Aluminum Strip for finned radiator
- Aluminum Strip for cable
- Aluminum Strip for stamping
- Aluminum Strip for edge strip
Aluminum Alloy Categories
- Pure aluminum strip
- Transformer aluminum strip
- Super hard aluminum strip
- All soft aluminum strip
- Semi hard aluminum strip
- Rust proof aluminum strip
Frequently Asked Questions
Who are we?
Henan Yongsheng Aluminum Co., Ltd. is located in Gongyi City Industrial Cluster Area, Henan Province. Our factory specializes in the production and development of aluminum products including Aluminum Strip, Color Aluminum, Aluminum Sheet, Aluminum Coil, Pressed Aluminum Product, Embossed Aluminum, and non-slip aluminum Sheet. With 100,000 square meters of facility space, 476 employees, and comprehensive production capabilities including 20 casting lines, 2 color coated aluminum coil lines, and multiple processing equipment, we achieve an annual output exceeding 200,000 tons with exports accounting for over 40% of production.
How can we guarantee quality?
- Sample provision via TNT, DHL, FEDEX, EMS, UPS or direct delivery
- Pre-production samples before mass production
- Final inspection before shipment
How long will it take to execute my order?
Our standard production timeframe is 7-15 working days.
How much will the shipping cost be?
Shipping costs depend on order size, weight, and selected shipping method.
Do you have products in stock?
We maintain 10,000 tons of inventory across various sizes. Please specify your requirements for current stock availability.
Why should you buy from us?
- 20 years of aluminum industry experience
- Source manufacturer with leading equipment and skilled team
- Competitive pricing, fast delivery, and superior quality
- Professional technical solutions
What services can we provide?
Delivery Terms: FOB, CFR, CIF, EXW, CIP, CPT, DDP, DDU
Payment Currency: USD, EUR, HKD, GBP, CNY
Payment Methods: T/T, L/C, D/P D/A, Credit Card, PayPal, Western Union, Cash, Escrow
Languages: English, Chinese, Spanish, Japanese, Portuguese, Korean

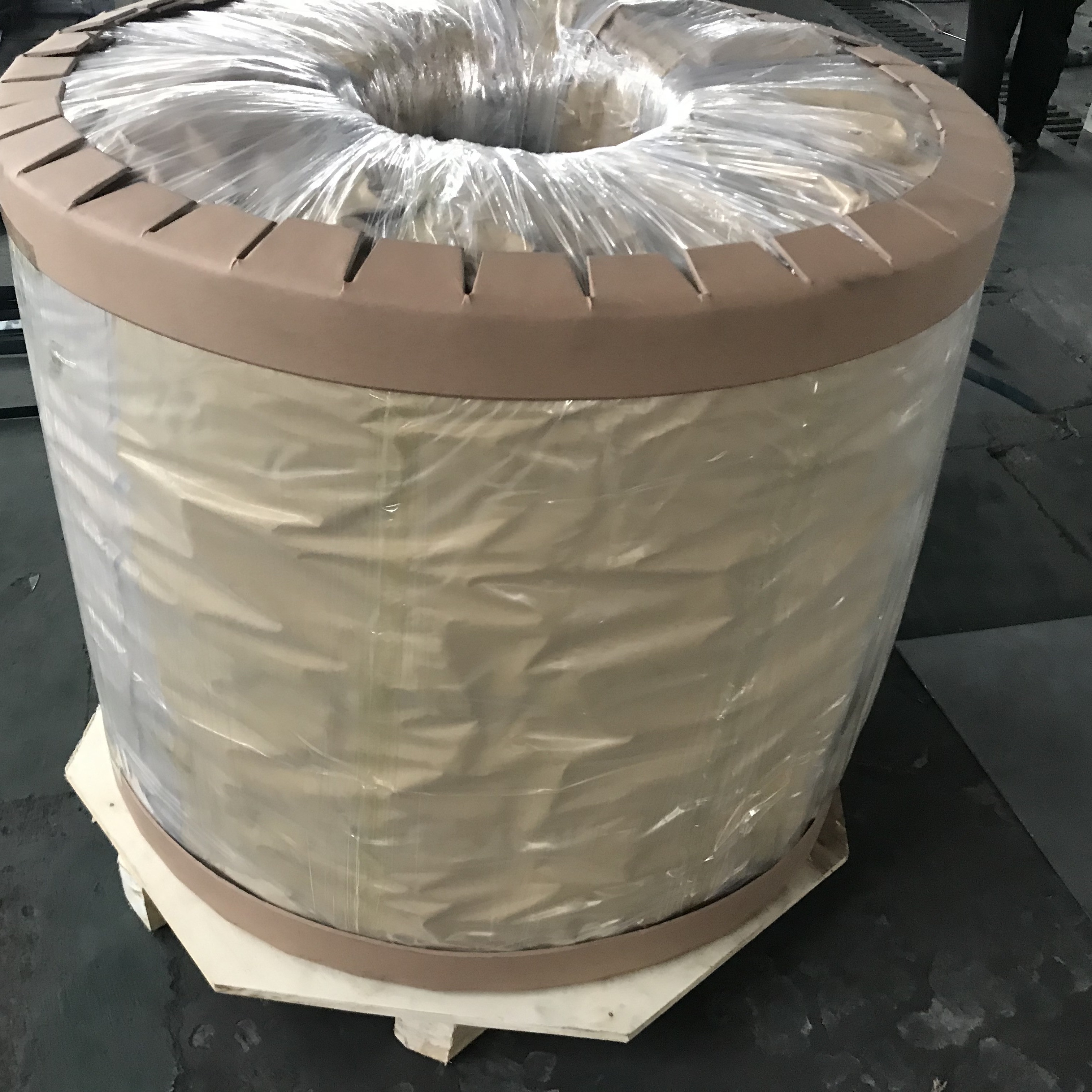

Packing Conditions
- Standard packing: 20MT per 20-foot container (recommended for cost efficiency)
- Robust three-layer packaging: thick fiber, foam, plastic with sufficient drying agent for long-distance sea transport
- Wooden or steel pallets per customer requirements
- External wooden box packaging
- Container securing to prevent transportation damage
- 24 wooden boxes per 20ft container
We guarantee reliable quality, competitive pricing, and prompt delivery.
Please inform us of your requirements, and we will provide our best service.
Please inform us of your requirements, and we will provide our best service.
