China Manufacturer Aluminum Divider Strip 5005 Newest Design Aluminum Alloy Strip
| Place of Origin | Henan China |
|---|---|
| Brand Name | Yongsheng |
| Certification | SGS |
| Model Number | ALuminum strip |
| Minimum Order Quantity | 1 tons |
| Price | USD2500tons |
| Packaging Details | wooden package |
| Delivery Time | 20workdays |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, |
| Supply Ability | 5000tonspermonth |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Aluminum Strip | Place Of Origin | China |
|---|---|---|---|
| Brand Name | Yongsheng Aluminum Industry Co., Ltd. | Alloy/Grade | 1000series-8000series |
| Temper | O-H112，T3-T8 | Thickness | 0.13mm-6.5mm |
| Length | As Your Requirements | Width | 3mm-2600mm |
| Tolerances | As Per Your Requirements | Surface Treatment | Mill Finish、Coated、Powder Coated、Anodized、Polished Mirror、Embossed、Etc. |
| Highlight | China Manufacturer Aluminum Divider Strip,5005 Aluminum Divider Strip,Newest Design Aluminum Divider Strip |
||
Product Description
Aluminum Divider Strip 5005 - Newest Design Aluminum Alloy Strip
As a leading China manufacturer, we provide high-quality aluminum divider strips made from 5005 series aluminum alloy. Aluminum strip is increasingly replacing copper strip in electronic products worldwide due to its excellent electrical conductivity and cost-effectiveness.
Product Overview
Aluminum strip is a deep-processed industrial raw material formed by slitting aluminum coil. Available in various series including 1000, 3000, 5000, and 8000, with 5052 alloy offering exceptional formability, corrosion resistance, weldability, and medium static strength.
Key Applications
- Aircraft fuel tanks and oil pipes
- Transportation vehicles and ship components
- Streetlamp supports and rivets
- Hardware products and instruments
Technical Specifications
- Alloy/Grade: 1000, 2000, 3000, 5000, 6000, 7000, 8000 Series
- Temper: O-H112, T3-T8, T351-T851
- Thickness: 0.13mm - 6.5mm
- Width: 3mm - 2600mm
- Length: Customized to requirements
- Surface Treatment: Mill Finish, Coated, Powder Coated, Anodized, Polished Mirror, Embossed
- Color: Silver
- Package: Wooden Pallets
- MOQ: 1 ton
- Delivery Time: 7-30 days after order confirmation
Primary Applications
- Transformer aluminum strip
- High-frequency welding hollow aluminum strip
- Finned radiator strip
- Cable aluminum strip
- Stamping aluminum strip
- Edge strip applications
Aluminum Alloy Categories
- Pure aluminum strip
- Transformer aluminum strip
- Super hard aluminum strip
- All soft aluminum strip
- Semi hard aluminum strip
- Rust proof aluminum strip
5005 Alloy Mechanical Properties
| Alloy | State | Thickness (mm) | Tensile Strength | Yield Strength (Mpa) | Elongation | Hardness |
|---|---|---|---|---|---|---|
| 5005 | O | > 0.2-0.5 | 100 - 145 | ≥ 35 | ≥ 15 | 33 - 43 |
| > 0.5-1.0 | 100 - 145 | ≥ 35 | ≥ 20 | 33 - 43 | ||
| > 1.0-4.0 | 100 - 145 | ≥ 35 | ≥ 25 | 33 - 43 | ||
| 5005 | H22 | > 0.2-0.5 | 125 - 165 | ≥ 80 | ≥ 12 | 30 - 53 |
| > 0.5-1.0 | 125 - 165 | ≥ 80 | ≥ 15 | 30 - 53 | ||
| > 1.0-4.0 | 125 - 165 | ≥ 80 | ≥ 18 | 30 - 53 | ||
| 5005 | H24 | > 0.2-0.5 | 145 - 185 | ≥ 110 | ≥ 8 | 40 - 60 |
| > 0.5-1.0 | 145 - 185 | ≥ 110 | ≥ 10 | 40 - 60 | ||
| > 1.0-4.0 | 145 - 185 | ≥ 110 | ≥ 10 | 40 - 60 | ||
| 5005 | H26 | > 0.2-0.5 | 165 - 205 | ≥ 135 | ≥ 3 | 50 - 68 |
| > 0.5-1.0 | 165 - 205 | ≥ 135 | ≥ 4 | 50 - 68 | ||
| > 1.0-4.0 | 165 - 205 | ≥ 135 | ≥ 6 | 50 - 68 | ||
| 5005 | H18 | > 0.2-0.5 | ≥ 185 | ≥ 165 | ≥ 2 | 57 - 68 |
| > 0.5-1.0 | ≥ 185 | ≥ 165 | ≥ 2 | 57 - 68 | ||
| > 1.0-4.0 | ≥ 185 | ≥ 165 | ≥ 3 | 57 - 68 |

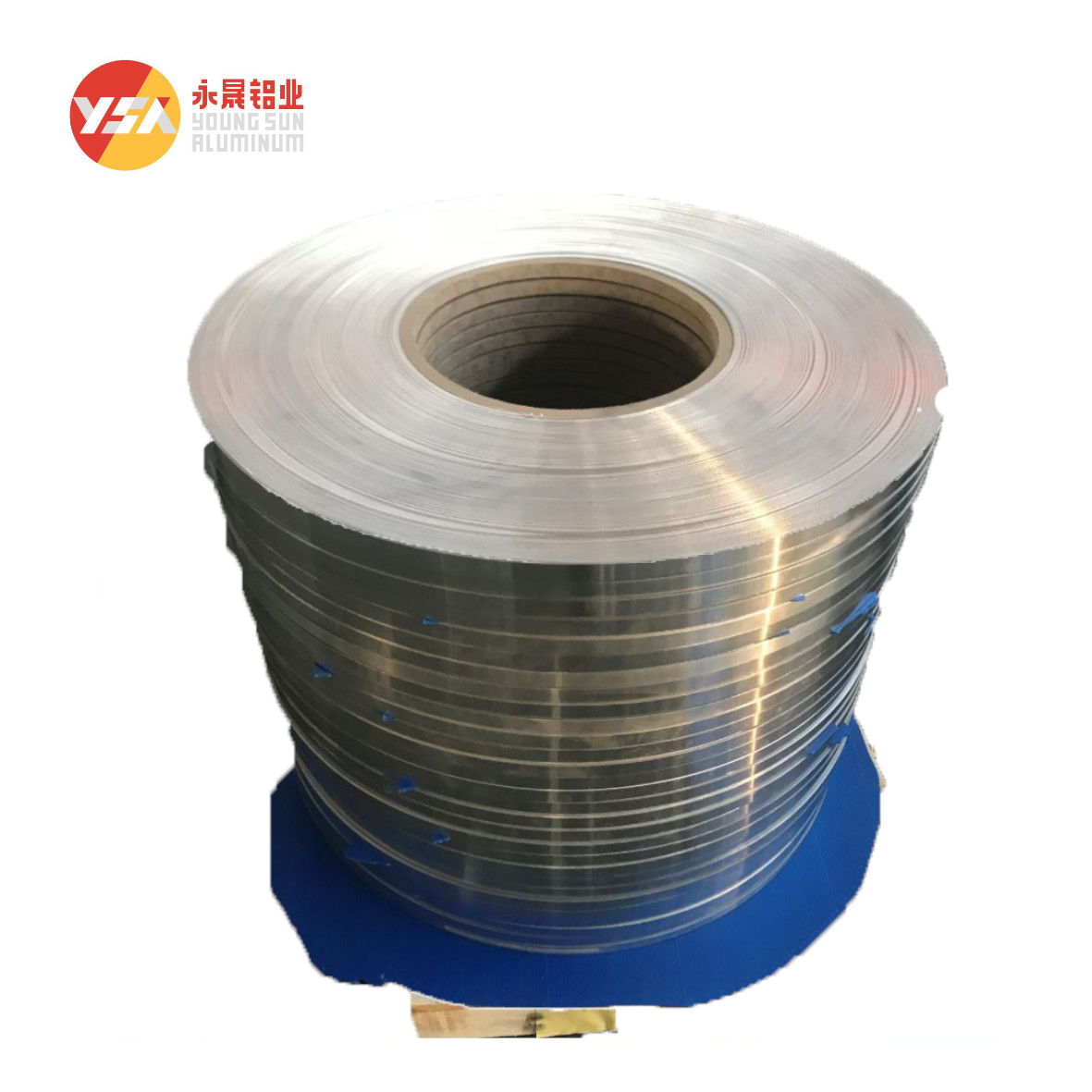

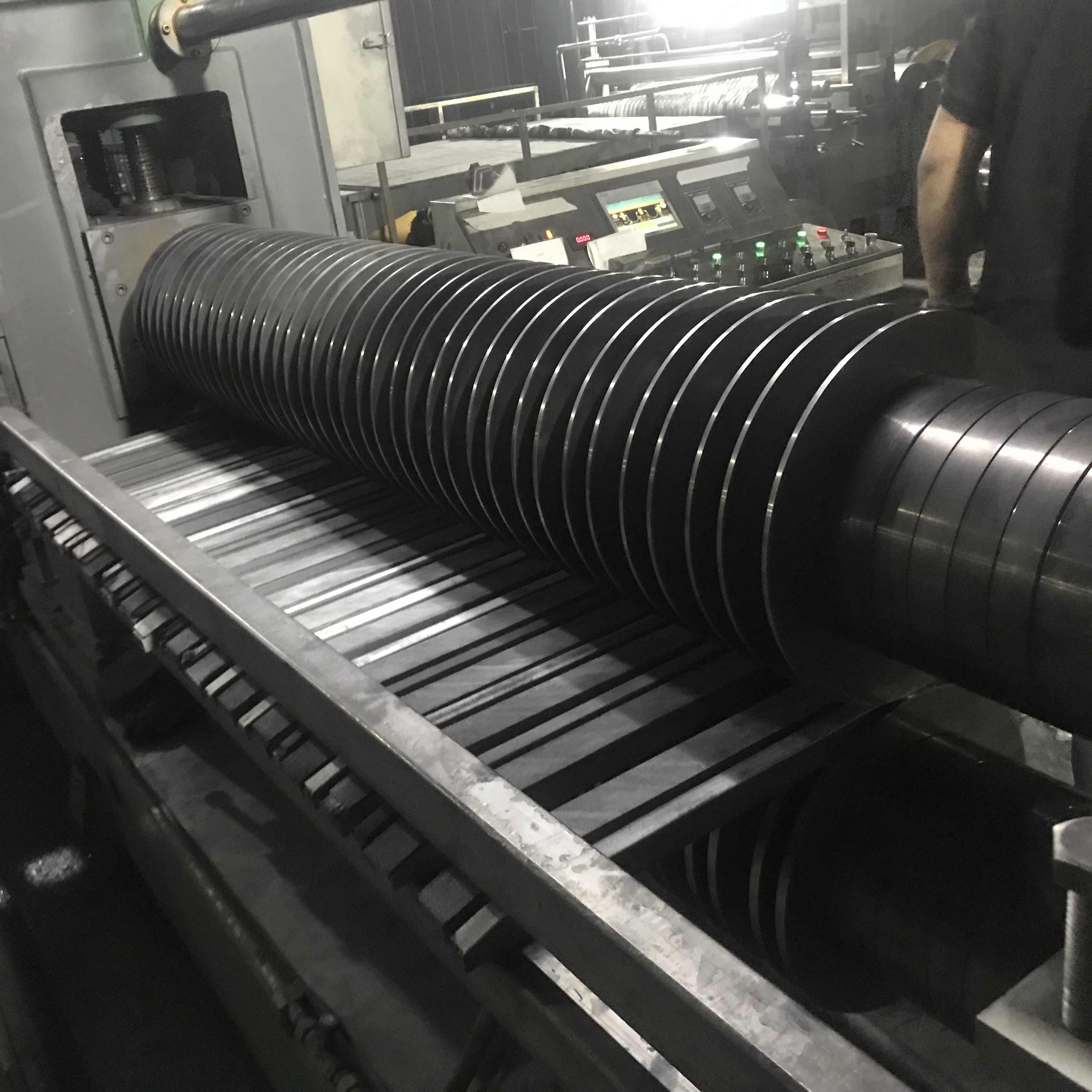

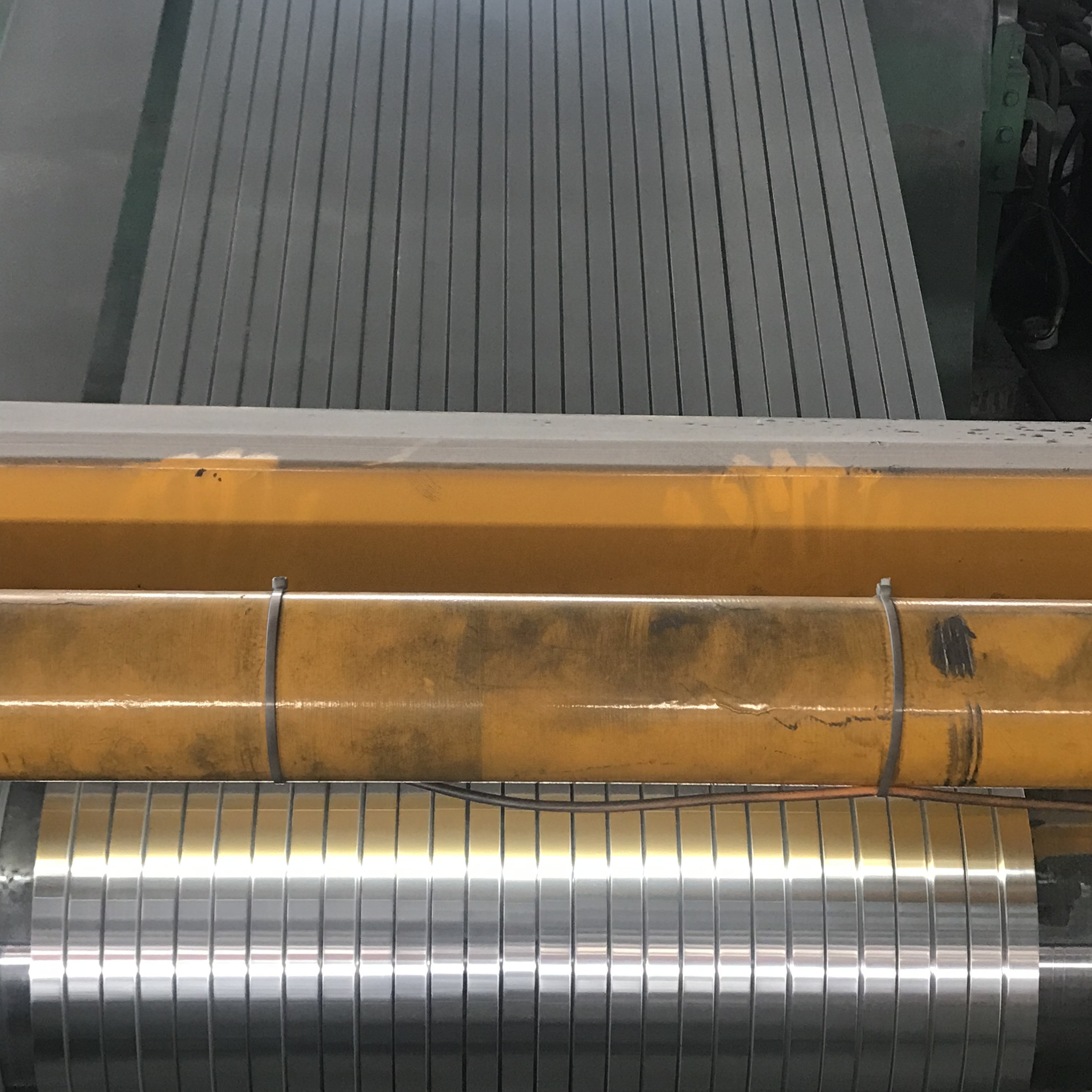

Product Gallery

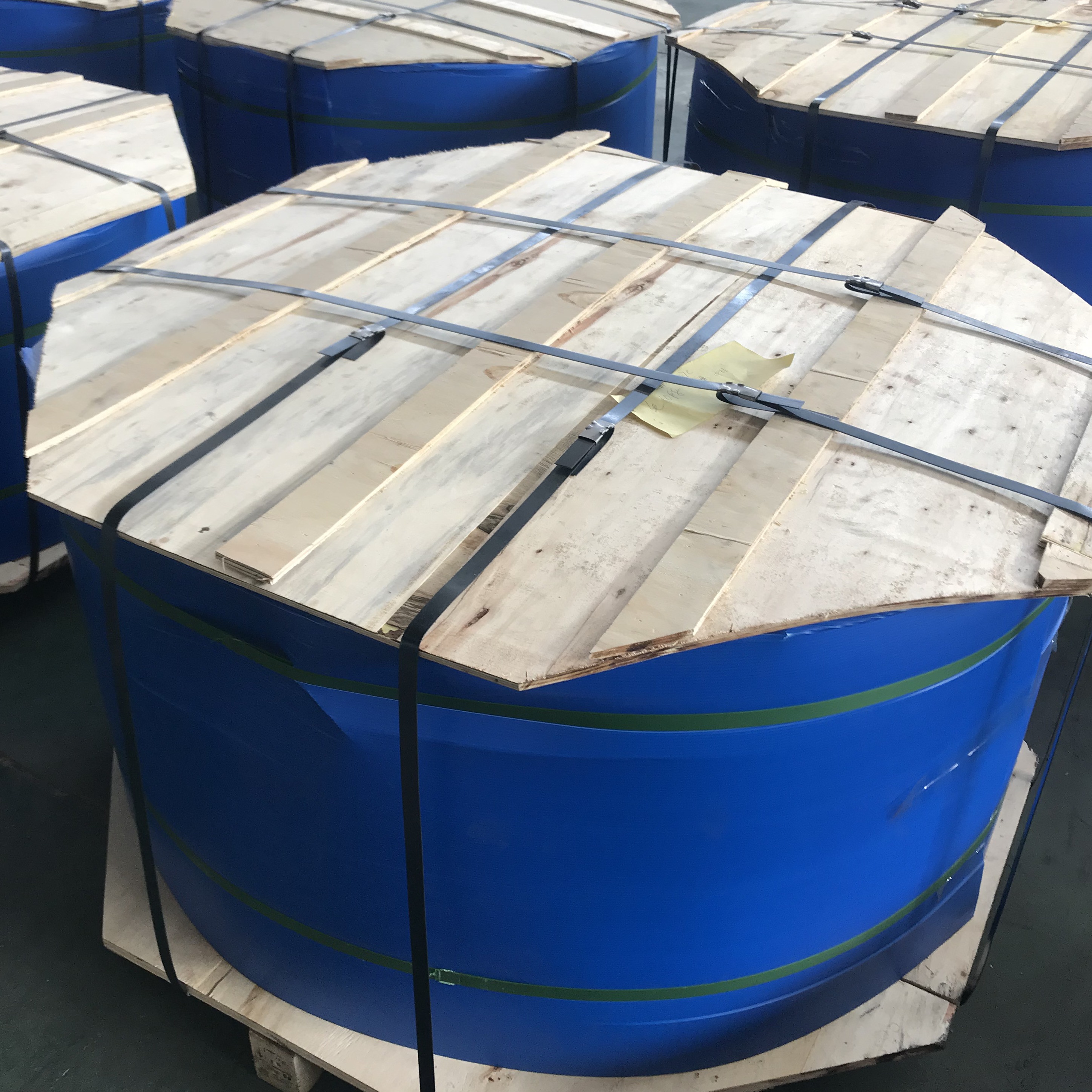

Packaging & Shipping
Container Loading: 20MT per 20-foot container (recommended for cost efficiency)
Packaging Structure: 3-layer protection with thick fiber, foam, plastic, and drying agent
Pallet Options: Wooden or steel pallets per customer request
- External wooden box packaging
- Container securing to prevent transportation damage
- 24 wooden boxes per 20ft container
Reliable quality, reasonable pricing, and prompt delivery guaranteed.
Contact us with your requirements - we will do our best to meet your needs.
