6061 Aluminium Strip 2mm
| Place of Origin | Henan China |
|---|---|
| Brand Name | Yongsheng |
| Certification | SGS |
| Model Number | ALuminum strip |
| Minimum Order Quantity | 1 tons |
| Price | USD2500tons |
| Packaging Details | wooden package |
| Delivery Time | 20workdays |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, |
| Supply Ability | 5000tonspermonth |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Alloy | 1000series-8000series | Temper | O-H112，T3-T8 |
|---|---|---|---|
| Thickness | 0.13mm-6.5mm | Width | 3mm-2600mm |
| Length | As Your Requirements | Application | Industry、decoration、building、packing、pressing |
| Highlight | 6061 aluminium strip 2mm,1060 aluminium strip 2mm,20mm 1100 aluminium alloy |
||
Product Description
6061 Aluminium Strip 2mm
Product Overview
High-quality 1060, 3003, 5052, and 6061 thin aluminum coil strips available in thicknesses from 1mm to 20mm. Our aluminum strips are manufactured using advanced equipment and processed by experienced engineers with professional operational skills.

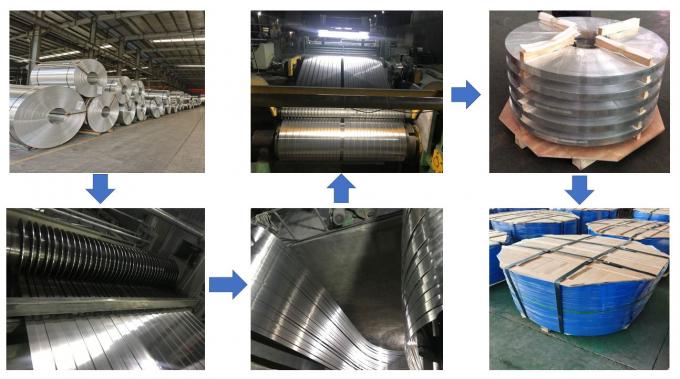

Manufacturing Process
Raw materials including pure aluminum or aluminum alloy cast rolled aluminum coils and hot rolled aluminum coils are processed through cold rolling machines to achieve precise thickness and width specifications. The sheets are then longitudinally cut into strips of various widths using precision slitting equipment.
Technical Specifications
- Available Series: 1000, 2000, 3000, 5000, 6000, 7000, 8000 Series
- Temper Options: O-H112, T3-T8, T351-T851
- Thickness Range: 0.13mm - 6.5mm
- Width Range: 3mm - 2600mm
- Custom Lengths: Available per customer requirements
- Surface Treatments: Mill Finish, Coated, Powder Coated, Anodized, Polished Mirror, Embossed
- Tolerances: Customizable to customer specifications
- Special Specifications: Available upon request
Applications
- Transformer aluminum strips (aluminum foil for transformers)
- High-frequency welding hollow aluminum strips
- Finned radiator strips
- Cable manufacturing
- Stamping applications
- Edge strips and trim
Aluminum Alloy Categories
- Pure aluminum strip
- Transformer aluminum strip
- Super hard aluminum strip
- All soft aluminum strip
- Semi hard aluminum strip
- Rust proof aluminum strip
Mechanical Properties
| Alloy | State | Thickness (mm) | Tensile Strength | Yield Strength (MPa) | Elongation | Hardness |
|---|---|---|---|---|---|---|
| 1060 (1050) | 0 | >0.2-0.5 | 60-100 | ≥15 | ≥20 | 20-30 |
| >0.5-1.0 | 60-100 | ≥15 | ≥30 | 20-30 | ||
| >1.0-4.0 | 60-100 | ≥15 | ≥35 | 20-30 | ||
| H22 | >0.2-0.5 | 80-120 | ≥60 | ≥12 | 30-40 | |
| >0.5-1.0 | 80-120 | ≥60 | ≥15 | 30-40 | ||
| >1.0-4.0 | 80-120 | ≥60 | ≥18 | 30-40 | ||
| H24 | >0.2-0.5 | 95-135 | ≥70 | ≥6 | 35-45 | |
| >0.5-1.0 | 95-135 | ≥70 | ≥8 | 35-45 | ||
| >1.0-4.0 | 95-135 | ≥70 | ≥10 | 35-45 | ||
| H26 | >0.2-0.5 | 110-155 | ≥75 | ≥2 | 43-55 | |
| >0.5-1.0 | 110-155 | ≥75 | ≥4 | 43-55 | ||
| >1.0-4.0 | 110-155 | ≥75 | ≥6 | 43-55 | ||
| H18 | >0.2-0.5 | ≥125 | ≥85 | ≥2 | 50-65 | |
| >0.5-1.0 | ≥125 | ≥85 | ≥3 | 50-65 | ||
| >1.0-4.0 | ≥125 | ≥85 | ≥4 | 50-65 |
Product Images
